RN85L-PRMSSV (1990)

Toyota Hilux 2wd

Production Aug 1990 - Aug 1997
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

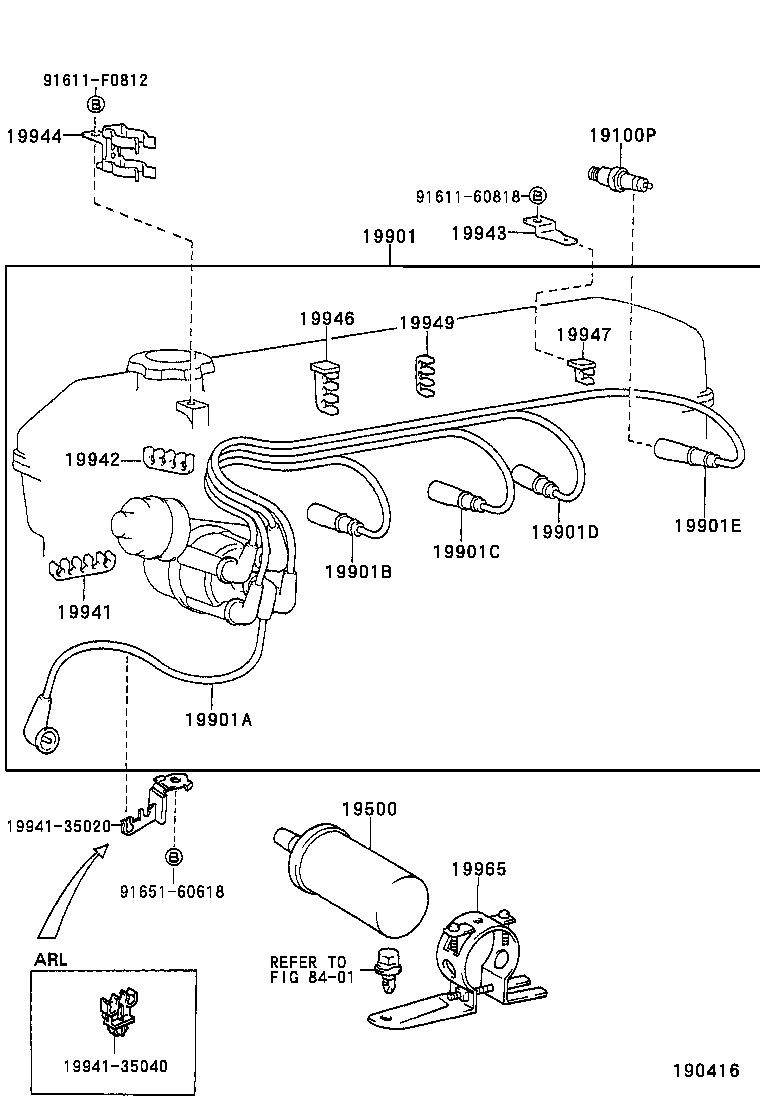

(8808-9208)22R

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 1994135020 1994135040 19942 19943 19944 19946 19947 19949 19965 8401 9161160818 91611F0812 9165160618
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R#..RN125,8#,90

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02117

22R..RN125,8#..V

 1
90919-02117

22R..RN125,8#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21432

22R..RN125,8#..LHD

 1
19901A - CORD, COIL RESISTIVE
90919-13294

22R..RN125,8#..LHD

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

22R..RN125,8#..LHD

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

22R..RN125,8#..LHD

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

22R..RN125,8#..LHD

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

22R..RN125,8#..LHD

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R..RN125,8#,90

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R..RN125,8#,90

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22R#..RN125,8#,90

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RN125,8#,90

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R..RN125,8#,90

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R..RN125,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R..RN125,8#,90

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03076

22R..RN125,8#..V

 1
90919-03076

22R..RN125,8#

 1
Common parts
19941-35020
19941-35040
91611-60818
91611-F0812
91651-60618
Linked diagrams
8401

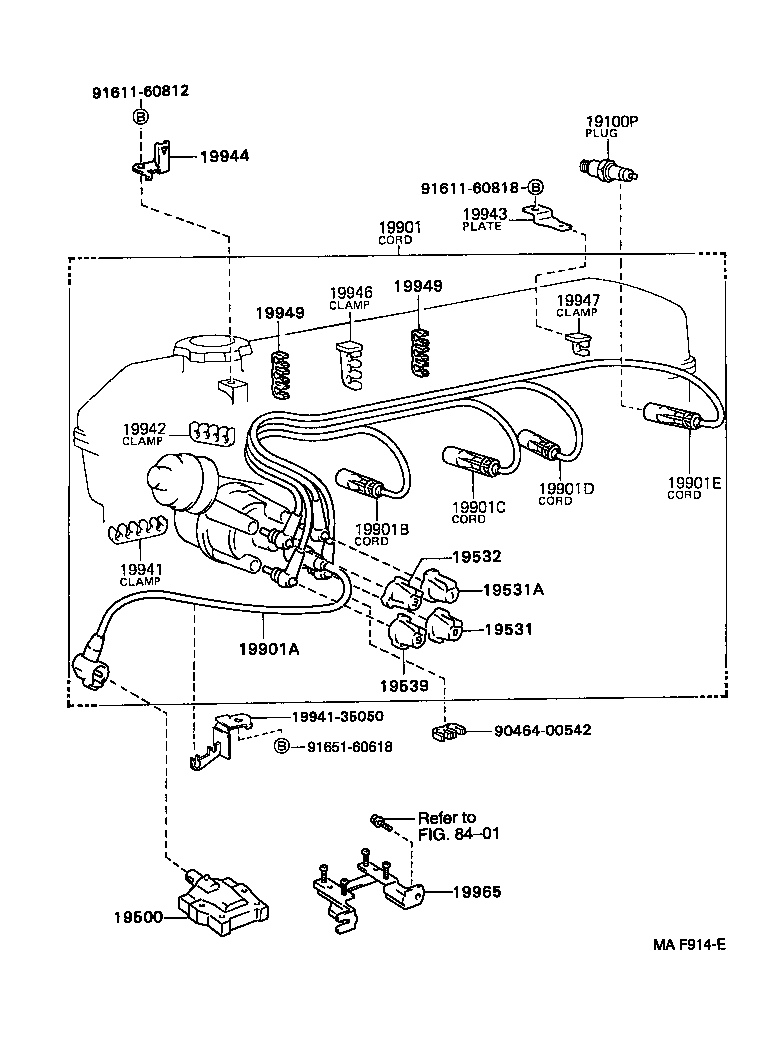

(9208- )22R#

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531A 19532 19539 19901 19901A 19901B 19901C 19901D 19901E 19941 1994135050 19942 19943 19944 19946 19947 19949 19949 19965 8401 9046400542 9161160812 9161160818 9165160618
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R#..RN125,8#,90

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02117

22R..RN125,8#..V

 1
90919-02117

22R..RN125,8#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21432

22R..RN125,8#..LHD

 1
19901A - CORD, COIL RESISTIVE
90919-13294

22R..RN125,8#..LHD

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

22R..RN125,8#..LHD

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

22R..RN125,8#..LHD

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

22R..RN125,8#..LHD

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

22R..RN125,8#..LHD

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R..RN125,8#,90

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R..RN125,8#,90

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22R#..RN125,8#,90

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RN125,8#,90

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R..RN125,8#,90

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R..RN125,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R..RN125,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R..RN125,8#,90

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03076

22R..RN125,8#..V

 1
90919-03076

22R..RN125,8#

 1
Common parts
19941-35050
90464-00542
91611-60812
91611-60818
91651-60618
Linked diagrams
8401
