RN85L-PRKRSV (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)22R..RN8#,90 ; (9108-9408)22R

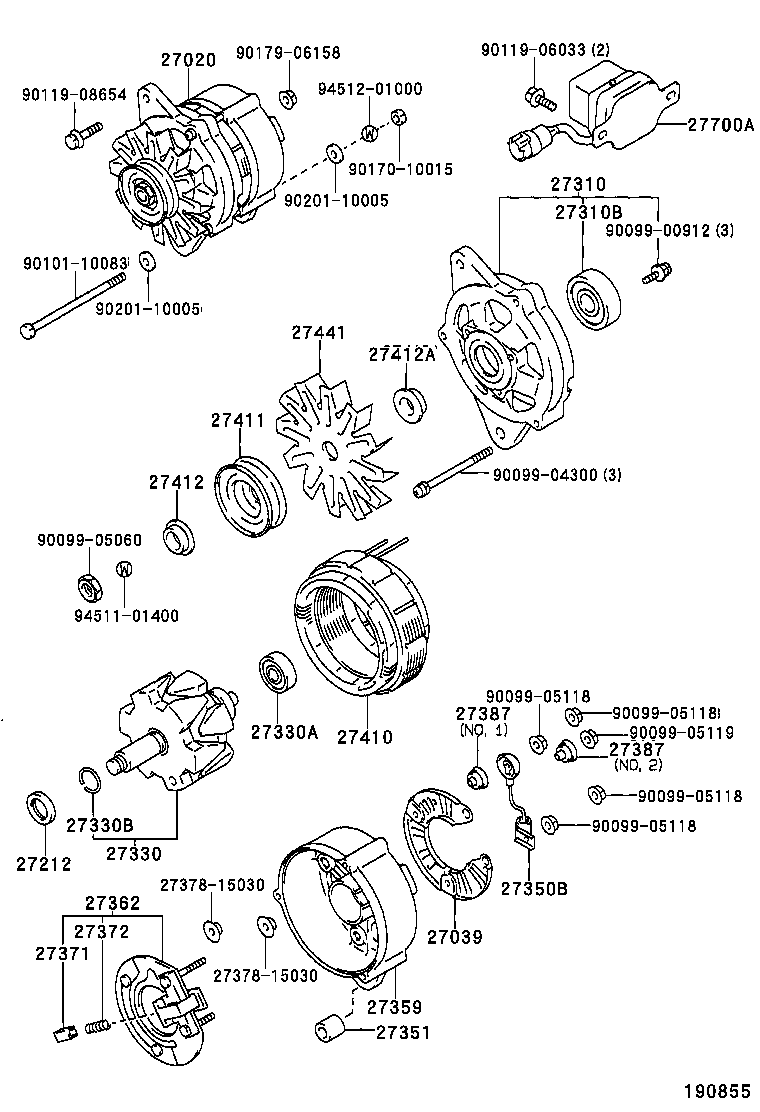

Click highlighted areas on diagram

12V 40A

diagram 27020 27039 27212 27310 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 27387 27387 27410 27411 27412 27412A 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110083 9011906033 9011908654 9017010015 9017906158 9020110005 9020110005 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-18011

22R..RN8#,90

12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

22R..RN8#,90

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010

22R..RN8#,90

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22R..RN125,8#,90

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

22R,2Y,3Y,4Y..RN8#,90,YN8#,92

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

22R..RN8#,90

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 2
27387 - INSULATOR, TERMINAL
27387-45022

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
27387 - INSULATOR, TERMINAL
27387-45022

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
27410 - STATOR ASSY, ALTERNATOR
27410-38120

22R,2Y,3Y,4Y..RN8#,90,YN8#,9#

 1
27411 - PULLEY, ALTERNATOR
27411-31042

22R..RN125,8#,90

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

22R..RN125,8#,90

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R..RN125,8#,90

 1
27441 - FAN, ALTERNATOR
27441-34030

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,8#,90,YN8#,92

 1
Common parts
27378-15030
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-06033
90119-08654
90170-10015
90179-06158
90201-10005
94511-01400
94512-01000
