RN80L-TRMSSV (1990)

Toyota Hilux 2wd

Production Aug 1990 - Aug 1997
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9708)YN80,85..5F ; (8808-0106)LN8#,9#,RN125,8#,90,YN81,86,87,9#..MTM ; (9408-

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124F 33124G 33146 33283H 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35141

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
33103-22091

RN8#..V

 1
33103-30200

RN8#..V

 1
33103-30201

RN8#,90..V

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73120

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
90999-73105

RN8#,90..V

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

YN85..5F..(ARL,GEN);LN8#,90,RN125,8#,90,YN81,86,92..MTM

 1
90311-38032

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
90311-38032

YN80,85..5F;LN8#,90,RN125,8#,90,YN81,86,9#..MTM

 1
90311-38040

RN8#..V

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35010

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33106-22010

RN8#..V

 1
33124-36010

LN8#,90,RN125,8#,90,YN81,85,86,87,92..5F

 1
33106-30040

RN8#,90..V

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
33146-30020

RN8#,90..V

 1
33146-30020

YN85..5F..(ARL,GEN);LN8#,90,RN125,8#,90,YN81,86,92..5F

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

RN8#,90..V

 1
90341-12008

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
Common parts
90119-08371
90119-10186
90119-10337

(9108-9708)RN8#,90..V

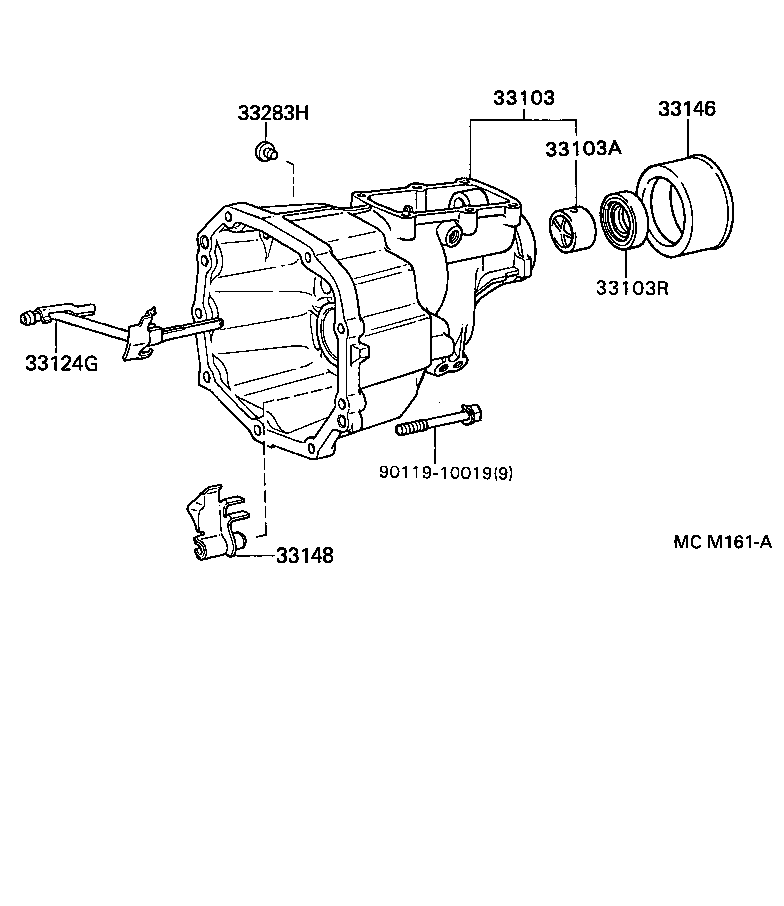

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124G 33146 33148 33283H 9011910019
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35141

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
33103-22091

RN8#..V

 1
33103-30200

RN8#..V

 1
33103-30201

RN8#,90..V

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73120

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
90999-73105

RN8#,90..V

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

YN85..5F..(ARL,GEN);LN8#,90,RN125,8#,90,YN81,86,92..MTM

 1
90311-38032

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
90311-38032

YN80,85..5F;LN8#,90,RN125,8#,90,YN81,86,9#..MTM

 1
90311-38040

RN8#..V

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33106-22010

RN8#..V

 1
33124-36010

LN8#,90,RN125,8#,90,YN81,85,86,87,92..5F

 1
33106-30040

RN8#,90..V

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
33146-30020

RN8#,90..V

 1
33146-30020

YN85..5F..(ARL,GEN);LN8#,90,RN125,8#,90,YN81,86,92..5F

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

RN8#..V

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

RN8#,90..V

 1
90341-12008

YN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM

 1
Common parts
90119-10019
