RN80L-TRKRSV (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN80,81,RN125,80,YN80,81

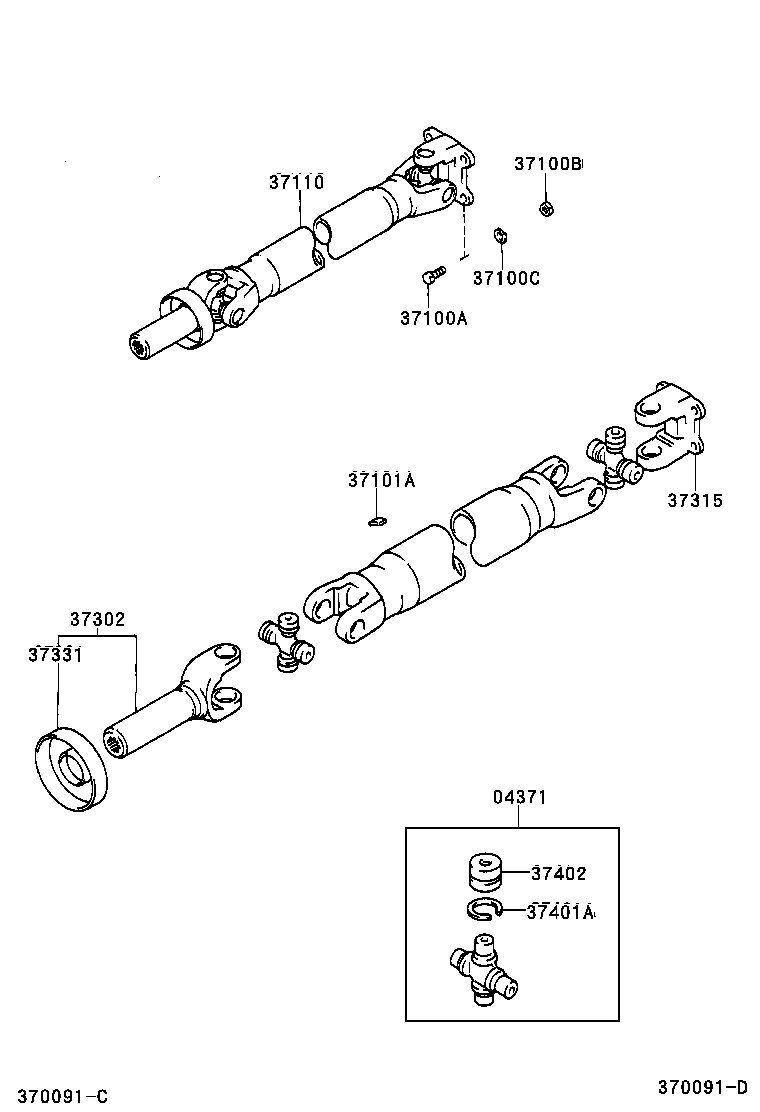

Click highlighted areas on diagram

diagram 04371 37100A 37100B 37100C 37101A 37110 37302 37315 37331 37401A 37402
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-30021

LN81,RN125,80

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10085

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-10059

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01148

LN8#,9#,RN125,8#,90,YN8#,9#

4G,T=2.0

 1
90937-01151

LN8#,9#,RN125,8#,90,YN8#,9#

12G,L=24.9

 1
90937-01147

LN8#,9#,RN125,8#,90,YN8#,9#

2G,T=2.0

 1
90937-01150

LN8#,9#,RN125,8#,90,YN8#,9#

8G,L=16.6

 1
90937-01132

LN8#,9#,RN125,8#,90,YN8#,9#

10G,L=20.7

 1
90937-01149

LN8#,9#,RN125,8#,90,YN8#,9#

6G,L=12.4

 1
90937-01152

LN8#,9#,RN125,8#,90,YN8#,9#

14G,L=29.0

 1
90937-01201

LN8#,9#,RN125,8#,90,YN8#,9#

30G,T=4.5,L=27.4

 1
37110 - SHAFT ASSY, PROPELLER
37110-35400

RN125,80

 1
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35030

RN85..SR5..V;RN85..(DLX,STD)..CBR;LN81,86,RN125,80..ARL,V;RN90,YN87,92..ARL,GEN,TH

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

LN81,RN125,80

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LN8#,9#,RN125,8#,90,YN8#,9#

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26038

LN81,RN125,80

T=2.125,MARK 1

 4
90520-26040

LN81,RN125,80

T=2.175,MARK 2

 4
90520-26041

LN81,RN125,80

T=2.225,MARK 3

 4
90520-26046

LN81,RN125,80

T=2.475,MARK 8

 4
90520-26042

LN81,RN125,80

T=2.275,MARK 4

 4
90520-26043

LN81,RN125,80

T=2.325,MARK 5

 4
90520-26045

LN81,RN125,80

T=2.425,MARK 7

 4
90520-26044

LN81,RN125,80

T=2.375,MARK 6

 4
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30021

LN81,RN125,80

RED PAINTED

 4
37402-30011

LN81,RN125,80

 4
