RN125L-GKMDSV (1989)

Toyota Hilux 2wd

Production Jul 1989 - Aug 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9308)RN125

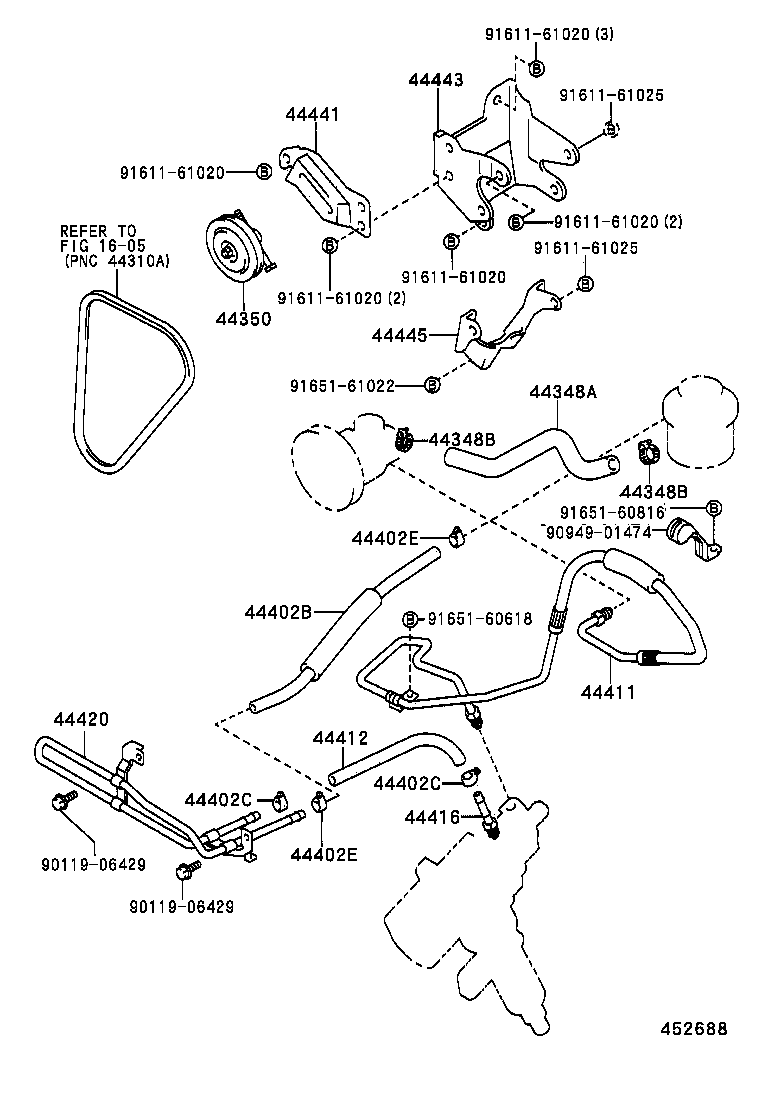

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44348B 44350 44402B 44402C 44402C 44402E 44402E 44411 44412 44416 44420 44441 44443 44445 9011906429 9011906429 9094901474 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161025 9165160618 9165160816 9165161022
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35100

RN90;RN125,8#..V

 1
44348-35100

RN85..TW1;RN125,80,90

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RN85..V;RN85..RHD;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V

 2
90460-26001

RN85..TW1;RN125,80,90;LN85..LHD..TW1..CBU

 2
90460-26001

RN90;RN125,8#..V;LN85..LHD..TW1..CBU

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RN85..V;RN85..RHD;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V

 2
90460-26001

RN85..TW1;RN125,80,90;LN85..LHD..TW1..CBU

 2
90460-26001

RN90;RN125,8#..V;LN85..LHD..TW1..CBU

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-35010

RN85,90..RHD;LN85..LHD..TW1;LN81,85,86,RN125,8#..LHD..(TH,V)

 1
44350-35010

RN85..TW1;RN125,80,90;LN85..LHD..TW1..CBU

 1
44350-35010

RN90;RN125,8#..V;LN85..LHD..TW1..CBU

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18039

RN85..EFI;RN125,8#,90..V

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

RN125,8#..V

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

RN125,8#..V

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

RN125,8#..V

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

RN125,8#..V

 2
44411 - HOSE, PRESSURE FEED
44411-35290

RN125

 1
44412 - HOSE, RETURN
90445-18138

RN125,8#..V

 1
44412-35210

RN125

 1
90445-18138

YN85..ARL;RN125,8#..V

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020

RN125

 1
44420 - COOLER ASSY, OIL
44420-35040

RN125,8#..V

 1
44420-35070

RN125

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RN85..TW1;RN125,80,90

 1
44441-20010

RN90;RN125,8#..V

 1
44443 - BRACKET, PUMP
44443-35020

RN90;RN125,8#..V

 1
44443-35020

RN85..TW1;RN125,80,90

 1
44445 - BRACKET, PUMP, LOWER
44445-35010

RN90;RN125,8#..V

 1
44445-35010

RN85..TW1;RN125,80,90

 1
Common parts
90119-06429
90949-01474
91611-61020
91611-61025
91651-60618
91651-60816
91651-61022
Linked diagrams
1605
