LN90R-CRMSST (1989)

Toyota Hilux 2wd

Production Oct 1989 - Jun 1998
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)LN8#,90,RN8#,90,YN8#,92

Click highlighted areas on diagram

diagram 53111 53111 53119B 53119B 53121A 53121A 53131A 53132A 53149B 53149B 9016740037 9018906111 9046712020 9046712020 9046712040 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-35171

LN9#

PLATED

 1
53111-89133

LN85,90,RN90..SR5

NO PAINT REQ.

 1
53111-35070

RN85..RHD..GEN;LN80,85,90,YN80,85,92..GEN,TH

PLATED

 1
53111-89132

LN80,85,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-89132

RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-35060

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53111-35280

RN85..EFI;YN85..GEN,TH;RN85..SR5..GEN;LN86,RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN80,85,90,RN90,YN80,86,9#..ARL,GEN,TH

PLATED

 1
53111-35070

RN85..EFI;YN85..GEN,TH;RN85..RHD..GEN..IV3;LN86,RN85..RHD..TW1;LN80,85,90,RN90,YN80,9#..ARL,GEN,TH

PLATED

 1
53111-35250

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53111 - GRILLE, RADIATOR
53111-35171

LN9#

PLATED

 1
53111-89133

LN85,90,RN90..SR5

NO PAINT REQ.

 1
53111-35070

RN85..RHD..GEN;LN80,85,90,YN80,85,92..GEN,TH

PLATED

 1
53111-89132

LN80,85,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-89132

RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-35060

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53111-35280

RN85..EFI;YN85..GEN,TH;RN85..SR5..GEN;LN86,RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN80,85,90,RN90,YN80,86,9#..ARL,GEN,TH

PLATED

 1
53111-35070

RN85..EFI;YN85..GEN,TH;RN85..RHD..GEN..IV3;LN86,RN85..RHD..TW1;LN80,85,90,RN90,YN80,9#..ARL,GEN,TH

PLATED

 1
53111-35250

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-35010

LN9#

 1
53119-89105

LN8#,90,RN125,8#,90,YN8#,92

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-35010

LN9#

 1
53119-89105

LN8#,90,RN125,8#,90,YN8#,92

 1
53121A - MOULDING, RADIATOR GRILLE
53121-89103

LN85,90,RN90..SR5

 2
53121-89105

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 2
53121A - MOULDING, RADIATOR GRILLE
53121-89103

LN85,90,RN90..SR5

 2
53121-89105

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 2
53131A - DOOR, HEADLAMP, RH
53131-89117

RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
53131-89117

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
53131-89116

LN85,90,RN90..SR5

 1
53132A - DOOR, HEADLAMP, LH
53132-89116

RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
53132-89115

LN85,90,RN90..SR5

 1
53132-89116

LN80,85,90,YN80,85,87,92..GEN,TH

CHROME PLATED PACKAGE

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

LN8#,90,RN125,8#,90,YN8#,92

 1
53149-35010

LN9#

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

LN8#,90,RN125,8#,90,YN8#,92

 1
53149-35010

LN9#

 1
Common parts
90167-40037
90189-06111
90467-12020
90467-12040

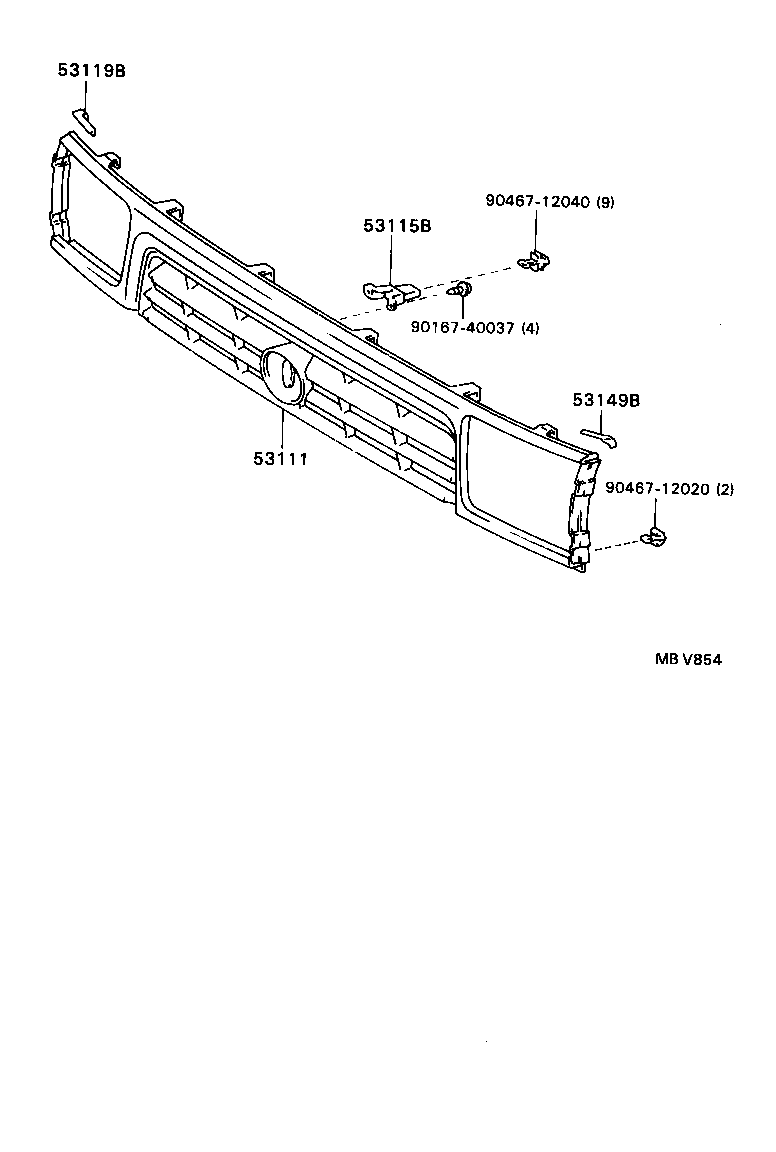

(9108-9308)RN125 ; (9608-9806)LN9#

Click highlighted areas on diagram

diagram 53111 53115B 53119B 53149B 9016740037 9046712020 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-89133

LN85,90,RN90..SR5

NO PAINT REQ.

 1
53111-35070

RN85..RHD..GEN;LN80,85,90,YN80,85,92..GEN,TH

PLATED

 1
53111-89132

LN80,85,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-89132

RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN,TH

PLATED

 1
53111-35060

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53111-35280

RN85..EFI;YN85..GEN,TH;RN85..SR5..GEN;LN86,RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN80,85,90,RN90,YN80,86,9#..ARL,GEN,TH

PLATED

 1
53111-35171

LN9#

PLATED

 1
53111-35070

RN85..EFI;YN85..GEN,TH;RN85..RHD..GEN..IV3;LN86,RN85..RHD..TW1;LN80,85,90,RN90,YN80,9#..ARL,GEN,TH

PLATED

 1
53111-35250

YN86..STD;RN85,90..ARL,GEN;LN8#,90,YN80,81,85,9#

NO PAINT REQ.

 1
53115B - BRACKET, RADIATOR GRILLE
53115-35020

LN9#

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-35010

LN9#

 1
53119-89105

LN8#,90,RN125,8#,90,YN8#,92

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

LN8#,90,RN125,8#,90,YN8#,92

 1
53149-35010

LN9#

 1
Common parts
90167-40037
90467-12020
90467-12040
