LN90L-CRMDS3 (1988)
Toyota Hilux 2wd

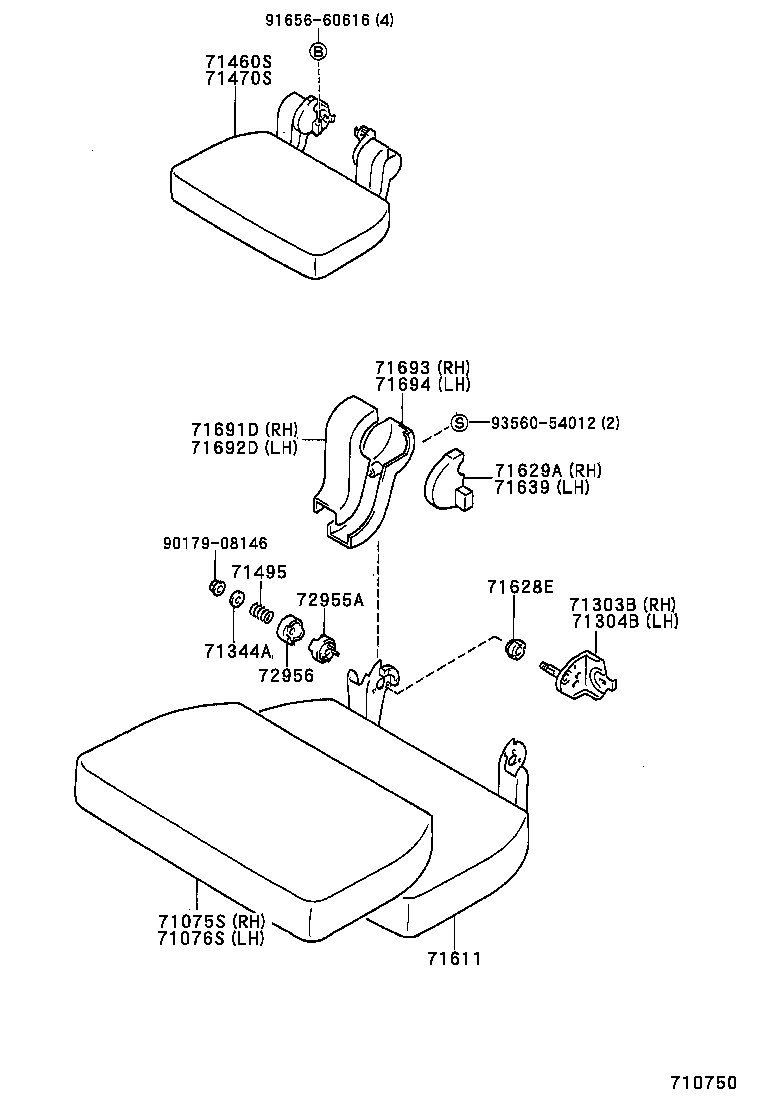

ILLUST NO. 3 OF 3(8808- )LN90,YN9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-8917003 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71075-8918704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71075-8917004 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71075-8917006 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71075-8918703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71075-8918706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71075-8917003 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71075-8917006 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71075-8917004 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71075-8918704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71075-8918706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71075-8918703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-89101 |
LN90,RN90,YN92..GEN,V |
2 | ||
| 71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71303-89101 |
LN90,RN90,YN92..GEN,V |
2 | ||
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-89102 |
LN90,RN90,YN92..ARL,GEN,V |
4 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-8918406 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71460-8918403 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71460-8918404 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71460-8921506 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71460-8921503 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71460-8921504 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71460-8918406 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71460-8921503 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71460-8918403 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71460-8921504 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71460-8918404 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71460-8921506 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71495 - SPRING, REAR SEAT CUSION | ||||
| 71495-89101 |
LN90,RN90,YN92..ARL,GEN,V |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-89101 |
LN90,RN90,YN92..GEN,V |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-89102 |
LN90,RN90,YN92..ARL,GEN,V |
4 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-8910306 |
LN90,YN92..GEN BROWN,TRIM4# |
2 | ||
| 71629-8910304 |
LN90,YN92..GEN BLUE,TRIM8# |
2 | ||
| 71629-8910303 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71629-8910304 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71629-8910303 |
LN90,YN92..GEN GRAY,TRIM1# |
2 | ||
| 71629-8910306 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
2 | ||
| 71639-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
2 | ||
| 71639-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
2 | ||
| 71639-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71639-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71639-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71691-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71691-8910106 |
LN90,RN90,YN92..ARL,GEN BROWN,TRIM4# |
2 | ||
| 71691-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71691-8910103 |
LN90,RN90,YN92..ARL,GEN GRAY,TRIM1# |
2 | ||
| 71691-8910104 |
LN90,RN90,YN92..ARL,GEN BLUE,TRIM8# |
2 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-8910104 |
LN90,RN90,YN92..ARL,GEN BLUE,TRIM8# |
2 | ||
| 71692-8910103 |
LN90,RN90,YN92..ARL,GEN GRAY,TRIM1# |
2 | ||
| 71692-8910106 |
LN90,RN90,YN92..ARL,GEN BROWN,TRIM4# |
2 | ||
| 71692-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71692-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71692-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-8910103 |
LN90,RN90,YN92..ARL,GEN GRAY,TRIM1# |
2 | ||
| 71693-8910104 |
LN90,RN90,YN92..ARL,GEN BLUE,TRIM8# |
2 | ||
| 71693-8910106 |
LN90,RN90,YN92..ARL,GEN BROWN,TRIM4# |
2 | ||
| 71693-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71693-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71693-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-8910103 |
LN90,RN90,YN92..ARL,GEN GRAY,TRIM1# |
2 | ||
| 71694-8910103 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71694-8910106 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71694-8910104 |
LN90,RN90,YN92..ARL,GEN BLUE,TRIM8# |
2 | ||
| 71694-8910104 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71694-8910106 |
LN90,RN90,YN92..ARL,GEN BROWN,TRIM4# |
2 | ||
| 72955A - PLATE, REAR SEAT TURN LOCK, NO.1 | ||||
| 72955-89101 |
LN90,RN90,YN92..ARL,GEN,V |
4 | ||
| 72956 - PLATE, REAR SEAT TURN LOCK, NO.2 | ||||
| 72956-89101 |
LN90,RN90,YN92..ARL,GEN,V |
4 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91656-60616 | ||||
| 93560-54012 | ||||
ILLUST NO. 1 OF 3(8808- )
BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(8808- )
SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8940203 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8940206 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8940204 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946306 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8946304 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946303 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8940203 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8940206 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8940204 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946303 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8946306 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8946304 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8938704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8938706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8938703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947506 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8947504 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8947503 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-8938704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8938706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8938703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947506 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8947503 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947504 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8936603 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71410-8936604 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-8936606 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71410-8947404 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-8947403 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71410-8947406 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-8917303 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71420-8917304 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71420-8917306 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71420-8921004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71420-8921003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71420-8921006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8938006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8938004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8938003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948803 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948804 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8948806 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-8938003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8938006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8938004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8948803 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948806 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8948804 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89137 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V |
1 | ||
| 71511-89137 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89137 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V |
1 | ||
| 71511-89137 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89142 |
LN90,RN125,90,YN92 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89142 |
LN90,RN125,90,YN92 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-89150 |
LN9#,RN125,90,YN9# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-89113 |
LN9#,RN125,90,YN9# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89154 |
LN9#,RN125,90,YN9# PLANT NO.A51-A54 |
1 | ||
| 71630-89159 |
LN9#,RN125,90,YN9# PLANT NO.P11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-89159 |
LN9#,RN125,90,YN9# PLANT NO.P11 |
1 | ||
| 71630-89154 |
LN9#,RN125,90,YN9# PLANT NO.A51-A54 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914003 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914003 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(8808- )
60/40 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8940203 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8940206 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8940204 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946306 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8946304 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946303 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8940203 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8940206 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8940204 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71071-8946303 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 71071-8946306 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BROWN,TRIM4# |
1 | ||
| 71071-8946304 |
LN85,90,RN85,YN85,87,92..(DCB,XTR)..(ARL,GEN) BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8938704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8938706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8938703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947506 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8947504 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8947503 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-8938704 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71073-8938706 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8938703 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947506 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 71073-8947503 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 71073-8947504 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8936603 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71410-8936604 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-8936606 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71410-8947404 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-8947403 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71410-8947406 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-8917303 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71420-8917304 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71420-8917306 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71420-8921004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71420-8921003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71420-8921006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8938006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8938004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8938003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948803 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948804 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8948806 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-8938003 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8938006 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8938004 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71430-8948803 |
LN90,YN92..GEN ***,GRAY,TRIM1# |
1 | ||
| 71430-8948806 |
LN90,YN92..GEN ***,BROWN,TRIM4# |
1 | ||
| 71430-8948804 |
LN90,YN92..GEN ***,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89137 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V |
1 | ||
| 71511-89137 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89137 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V |
1 | ||
| 71511-89137 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89142 |
LN90,RN125,90,YN92 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89142 |
LN90,RN125,90,YN92 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-89150 |
LN9#,RN125,90,YN9# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-89113 |
LN9#,RN125,90,YN9# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89154 |
LN9#,RN125,90,YN9# PLANT NO.A51-A54 |
1 | ||
| 71630-89159 |
LN9#,RN125,90,YN9# PLANT NO.P11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-89159 |
LN9#,RN125,90,YN9# PLANT NO.P11 |
1 | ||
| 71630-89154 |
LN9#,RN125,90,YN9# PLANT NO.A51-A54 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914003 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914003 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
RN80,YN86..DLX;RN85..(4FC,5F)..(DLX,STD);LN80,85,90,RN125,YN80,85,87,92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-10060J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-10060E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001057 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1006020 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001044 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060B1 |
LN90,RN8#,YN86..4FC,5F;LN8#,RN125,90,YN80,85,87,92..ARL,GEN,V W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-10060E1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-10060B1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90101-06025 | ||||
| 90179-08146 | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 2 OF 3(8808- )LN200,8#,9#,RN8#,90,RZN200,YN8#,9#
SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71811-8911103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71811-8911104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71811-8911103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71811-8911104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71812-8911303 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71812-8911304 |
RN90..ARL;LN90,RN125,YN92 BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71812-8911303 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71812-8911304 |
RN90..ARL;LN90,RN125,YN92 BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-8910106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71861-8910103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71861-8910104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-8910204 |
LN90,RN125,YN92..DLX BLUE,TRIM8# |
1 | ||
| 71862-8910203 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71862-8910206 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-89114 |
LN90,YN92..LHD |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-89114 |
LN90,YN92..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-89114 |
LN90;YN92..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-89114 |
LN90;YN92..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-89114 |
LN90,YN92..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-89114 |
LN90,YN92..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-89114 |
LN90;YN92..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-89114 |
LN90;YN92..LHD |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910304 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) BLUE,TRIM8# |
1 | ||
| 72137-8910303 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910304 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) BLUE,TRIM8# |
1 | ||
| 72137-8910303 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
LN90,RN125,90,YN92 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72525-89105B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72525-89105E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72525-8910506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72525-89105J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72525-89105B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72525-89105E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72525-8910506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72525-89105J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910103 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910104 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72526-89101B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-89101E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910103 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910104 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72526-89101B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-89101E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10084 | ||||
| 90119-10381 | ||||
| 90154-80002 | ||||
| 90168-40049 | ||||
| 90179-08073 | ||||
| 90386-12053 | ||||
| 90506-18036 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
ILLUST NO. 2 OF 3(8808- )LN200,8#,9#,RN8#,90,RZN200,YN8#,9#
SPLIT SEAT, BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71811-8911103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71811-8911104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71811-8911103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71811-8911104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71812-8911303 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71812-8911304 |
RN90..ARL;LN90,RN125,YN92 BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71812-8911303 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71812-8911304 |
RN90..ARL;LN90,RN125,YN92 BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-8910106 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71861-8910103 |
LN90,RN125,90,YN92 GRAY,TRIM1# |
1 | ||
| 71861-8910104 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-8910204 |
LN90,RN125,YN92..DLX BLUE,TRIM8# |
1 | ||
| 71862-8910203 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71862-8910206 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-8910204 |
LN90,RN125,YN92..DLX BLUE,TRIM8# |
1 | ||
| 71862-8910203 |
RN90..ARL;LN90,RN125,YN92 GRAY,TRIM1# |
1 | ||
| 71862-8910206 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-89114 |
LN90,YN92..LHD |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-89114 |
LN90,YN92..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-89114 |
LN90,YN92..LHD |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910304 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) BLUE,TRIM8# |
1 | ||
| 72137-8910303 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910304 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) BLUE,TRIM8# |
1 | ||
| 72137-8910303 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910304 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) BLUE,TRIM8# |
1 | ||
| 72137-8910303 |
LN85,86,RN85,90,YN85,86,87..(DCB,XTR)..(GEN,V) GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910304 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BLUE,TRIM8# |
2 | ||
| 72137-8910306 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) BROWN,TRIM4# |
2 | ||
| 72137-8910306 |
LN90,RN125,90,YN92..ARL,GEN,V BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN85..DLX..ARL;LN85,90,RN125,90,YN92..(DLX,SR5)..(ARL,GEN,V) GRAY,TRIM1# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
LN90,RN125,90,YN92 |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
LN90,RN125,90,YN92 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
LN90,RN125,90,YN92 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
LN90,RN125,90,YN92 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72525-89105B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72525-89105E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72525-8910506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72525-89105J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72525-89105B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72525-89105E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72525-8910506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72525-89105J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910103 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910104 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72526-89101B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-89101E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910103 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
1 | ||
| 72526-8910106 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
1 | ||
| 72526-89101J0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM BLUE,TRIM8# |
1 | ||
| 72526-8910104 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
1 | ||
| 72526-89101B0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-89101E0 |
LN85..SR5;LN85,YN80,85..ARL,GEN;LN90,RN90,YN86..DLX,SR5;LN80,RN125,8#,YN87,92..(4FC,5F)..(DLX,STD)..(ARL,GEN,V) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10084 | ||||
| 90119-10381 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90179-08073 | ||||
| 90386-12053 | ||||
| 90506-18036 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
