LN90L-CRMDS3 (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN9#,RN90,YN9#

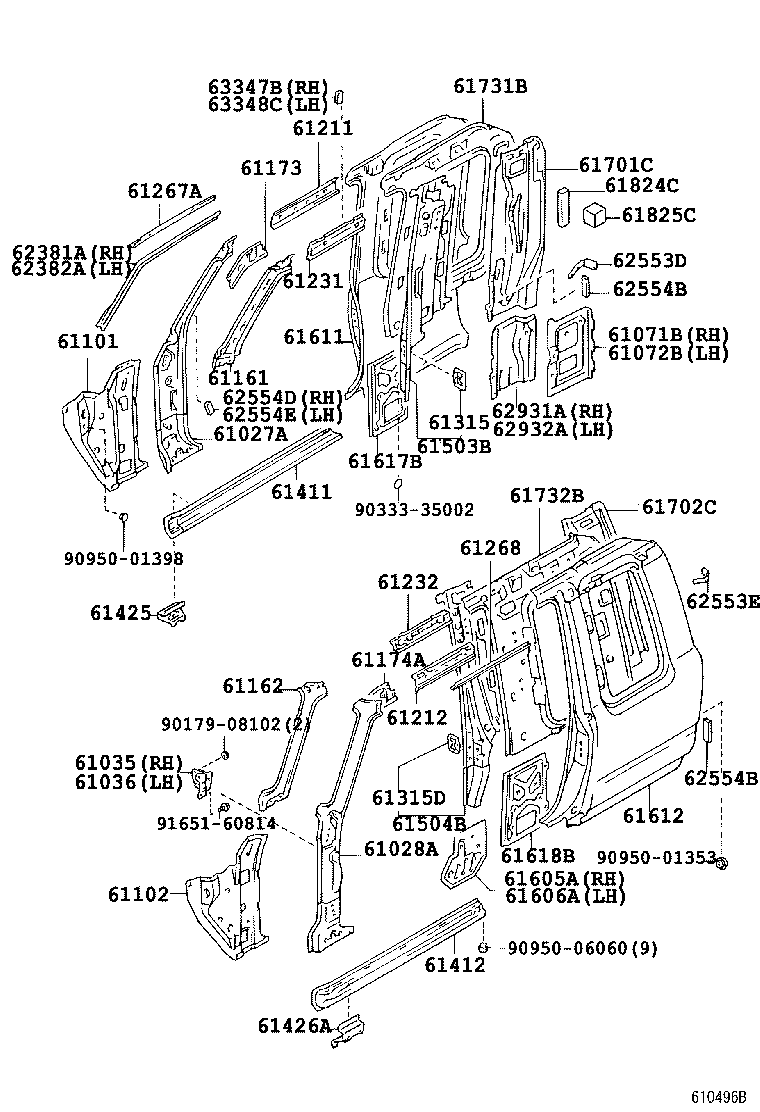

Click highlighted areas on diagram

diagram 61027A 61028A 61035 61036 61071B 61072B 61101 61102 61161 61162 61173 61174A 61211 61212 61231 61232 61267A 61268 61315 61315D 61411 61412 61425 61426A 61503B 61504B 61605A 61606A 61611 61612 61617B 61618B 61701C 61702C 61731B 61732B 61824C 61825C 62381A 62382A 62553D 62553E 62554B 62554B 62554D 62554E 62931A 62932A 63347B 63348C 9017908102 9033335002 9095001353 9095001398 9095006060 9165160814
Part # Description Qty Price
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-89115

LN8#,9#,RN8#,90,YN8#,9#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-89115

LN8#,9#,RN8#,90,YN8#,9#

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-89101

LN81,85,86,90,RN125,8#,90,YN8#,92..LHD

 1
61071B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH
61071-89101

LN9#,RN90,YN9#

 1
61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH
61072-89101

LN9#,RN90,YN9#

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-89136

LN85,90,RN8#,YN8#,92..LHD

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-89132

LN85,90,RN8#,YN8#,92..LHD

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89108

LN8#,90,RN125,8#,90,YN8#,92

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89108

LN8#,90,RN125,8#,90,YN8#,92

 1
61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61173-89103

LN8#,9#,RN8#,90,YN8#,9#

 1
61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61174-89102

LN8#,9#,RN8#,90,YN8#,9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-89107

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-89107

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-89113

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-89113

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-89101

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-89101

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

LN8#,90,RN125,8#,90,YN8#,92

 1
61315D - RETAINER, DOOR LOCK STRIKER, LH
61315-22020

LN8#,90,RN125,8#,90,YN8#,92

 1
61411 - PANEL, ROCKER, OUTER RH
61411-89109

LN8#,90,RN8#,90,YN8#,92..T1

 1
61412 - PANEL, ROCKER, OUTER LH
61412-89109

LN8#,90,RN8#,90,YN8#,92..T1

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-89113

LN90,RN90,YN92

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-89112

LN90,RN90,YN92

 1
61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH
61605-89101

LN9#,RN90,YN9#

 1
61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH
61606-89101

LN9#,RN90,YN9#

 1
61611 - PANEL, QUARTER, RH
61611-89110

LN9#,RN90,YN9#

 1
61612 - PANEL, QUARTER, LH
61612-89114

LN9#,RN90,YN9#

 1
61617B - PANEL, QUARTER INNER, LOWER RH
61617-89102

LN90,RN90,YN92

 1
61618B - PANEL, QUARTER, INNER LOWER LH
61618-89102

LN90,RN90,YN92

 1
61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH
61701-89103

LN90,YN92

 1
61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH
61702-89103

LN90,YN92

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-89101

LN9#,RN90,YN9#

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-89101

LN9#,RN90,YN9#

 1
61824C - PAD, NOISE SHUTTER, NO.1
61824-89105

LN9#,RN90,YN9#

 2
61825C - PAD, NOISE SHUTTER, NO.2
61825-89102

LN8#,90,RN8#,90,YN8#,92..T1

 2
62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-89101

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-89101

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
62553D - PAD, PILLAR, NO.3
62553-89102

RN90;LN90,YN92..5F

 1
62553E - PAD, PILLAR, NO.3
62553-89102

RN90;LN90,YN92..5F

 1
62554B - PAD, PILLAR, NO.4
62554-89101

RN90;LN90,YN92..5F

 1
62554B - PAD, PILLAR, NO.4
62554-89101

RN90;LN90,YN92..5F

 1
62931A - DUCT, QUARTER VENT, RH
62931-89109

LN9#,RN90,YN9#

 1
62932A - DUCT, QUARTER VENT, LH
62932-89105

LN9#,RN90,YN9#

 1
Common parts
90179-08102
90333-35002
90950-01353
90950-01398
90950-06060
91651-60814
