LN85R-TRMSST (1989)
Toyota Hilux 2wd

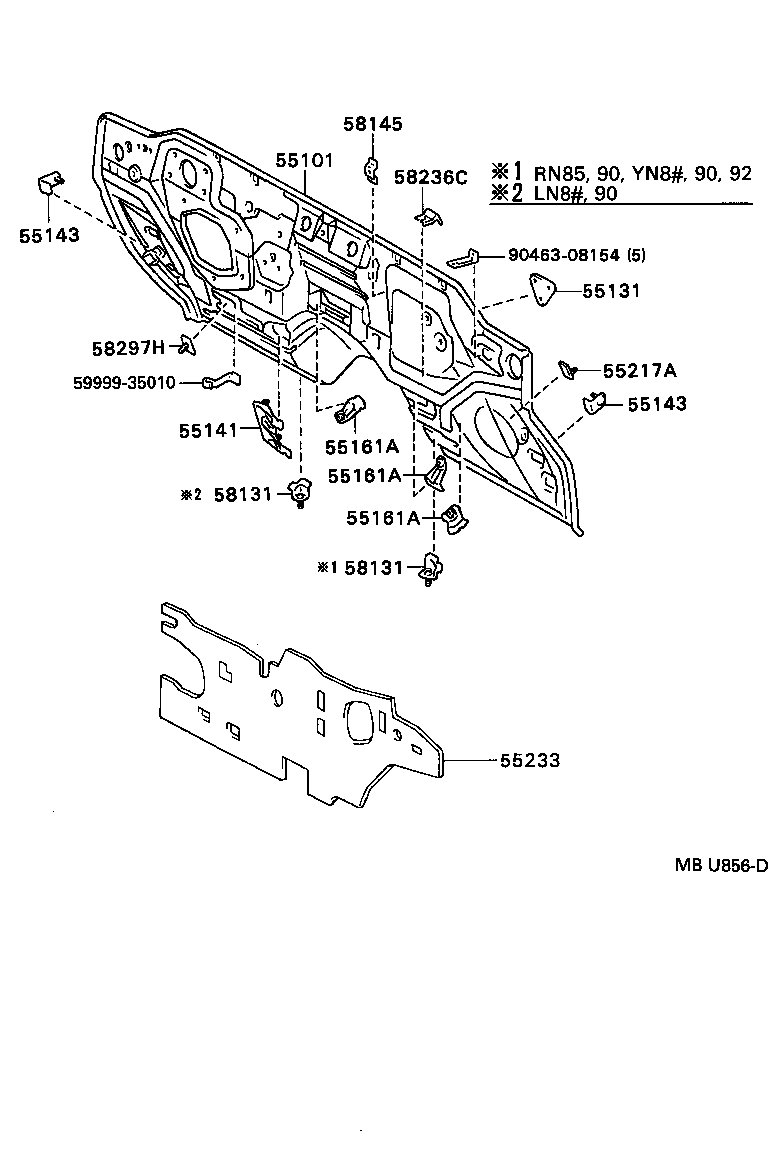

ILLUST NO. 3 OF 3(8912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55141 - BRACKET, FOOT REST MOUNTING | ||||
| 55141-89106 |
LN85..RHD..TH;LN80,90,RN90..ARL,TH;LN85,86,RN85..DLX..ARL |
1 | ||
| 55141-89106 |
LN8#,90..TH;RN85,90..(DLX,SR5)..ARL |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
RN85..CBU;RN85..RHD..IV3;LN8#,9#,RN80,90,YN8#,92 LH |
1 | ||
| 55143-89102 |
LN8#,90,RN125,8#,90,YN8#,92 LH |
1 | ||
| 55143-89103 |
LN8#,90,RN125,8#,90,YN8#,92 RH |
1 | ||
| 55143-89102 |
LN8#,9#,RN125,8#,90,YN8#,9# LH |
1 | ||
| 55143-89103 |
LN8#,9#,RN125,8#,90,YN8#,9# RH |
1 | ||
| 55143-89103 |
RN85..CBU;RN85..RHD..IV3;LN8#,9#,RN80,90,YN8#,92 RH |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-89102 |
RN85..CBU;RN85..RHD..IV3;LN8#,9#,RN80,90,YN8#,92 LH |
1 | ||
| 55143-89102 |
LN8#,90,RN125,8#,90,YN8#,92 LH |
1 | ||
| 55143-89103 |
LN8#,90,RN125,8#,90,YN8#,92 RH |
1 | ||
| 55143-89102 |
LN8#,9#,RN125,8#,90,YN8#,9# LH |
1 | ||
| 55143-89103 |
LN8#,9#,RN125,8#,90,YN8#,9# RH |
1 | ||
| 55143-89103 |
RN85..CBU;RN85..RHD..IV3;LN8#,9#,RN80,90,YN8#,92 RH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89106 |
LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD LH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89106 |
LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD LH |
1 | ||
| 55161A - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-89106 |
LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD LH |
1 | ||
| 55233 - SHEET, DASH PANEL INSULATOR | ||||
| 55233-89113 |
LN80,85,86,90,RN85,90..RHD |
1 | ||
| 55233-89112 |
YN80,85..RHD |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89116 |
RN125,8#,90,YN8#,9# |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-89116 |
RN125,8#,90,YN8#,9# |
1 | ||
| 58297H - RETAINER, FLOOR CLAMP | ||||
| 58297-89107 |
RN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92 |
1 | ||
| 58297-89107 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| Common parts | ||||
| 59999-35010 | ||||
| 90463-08154 | ||||
