LN85R-TRMRST (1989)
Toyota Hilux 2wd
Production
Oct 1989
-
Jun 1998
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )YN80,85,87,90..TH

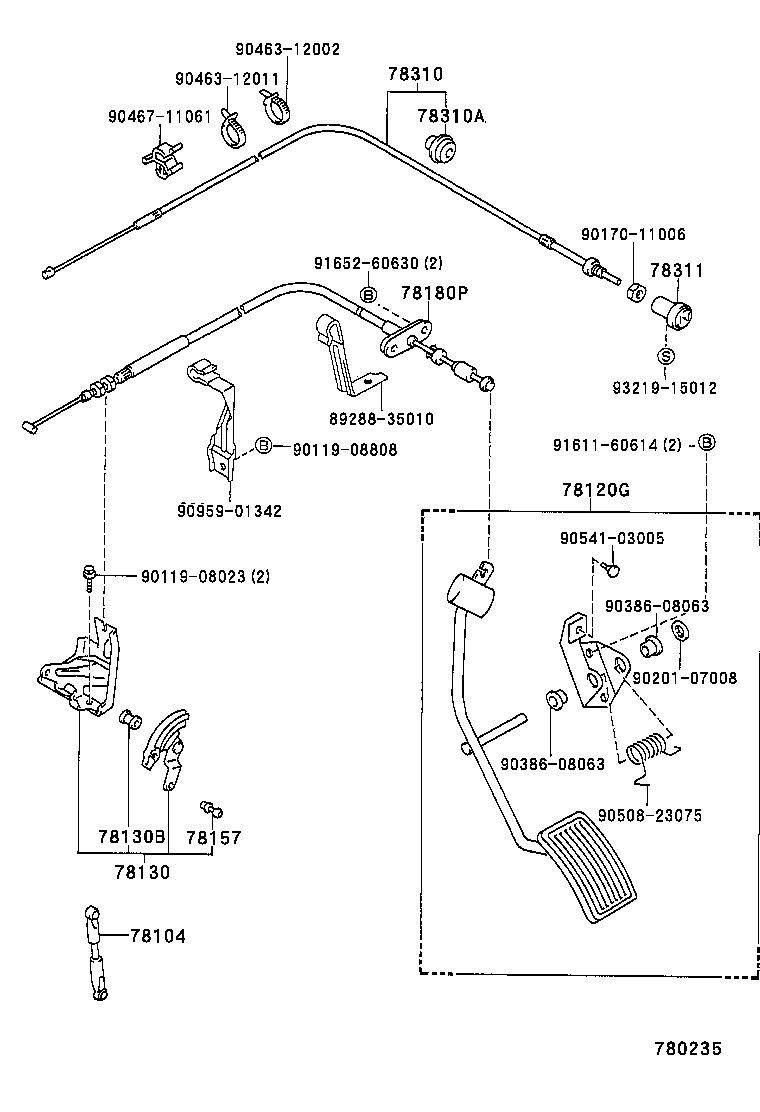

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89145 |
YN80,85,87,92..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-35020 |
YN86;YN80,81,85,90..ARL,TH,V |
1 | ||
| 78130-35030 |
YN80,85,87,92..GEN,TH |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89155 |
YN80,85,87,92..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-89115 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-21005 |
YN80,85,87,92..GEN,TH |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-89103 |
YN80,85,87,92..GEN,TH |
1 | ||
| Common parts | ||||
| 89288-35010 | ||||
| 90119-08023 | ||||
| 90119-08808 | ||||
| 90170-11006 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90463-12002 | ||||
| 90463-12011 | ||||
| 90467-11061 | ||||
| 90508-23075 | ||||
| 90541-03005 | ||||
| 90959-01342 | ||||
| 91611-60614 | ||||
| 91652-60630 | ||||
| 93219-15012 | ||||
(8910- )LN80,85,9#..TH
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-22100 |
LN8#,90..MTM |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89145 |
YN80,85,87,92..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89155 |
YN80,85,87,92..RHD |
1 | ||
| 78401 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-89111 |
LN8#..RHD |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-89102 |
LN8#,90 |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-35010 |
LN8#,9# |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90170-11006 | ||||
| 90179-08150 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90386-10138 | ||||
| 90508-23075 | ||||
| 90541-03005 | ||||
| 90959-01344 | ||||
| 91611-60614 | ||||
| 91611-G0814 | ||||
| 91612-60814 | ||||
| 91652-60630 | ||||
| 94142-61000 | ||||
| 95381-02518 | ||||
