LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )TW1

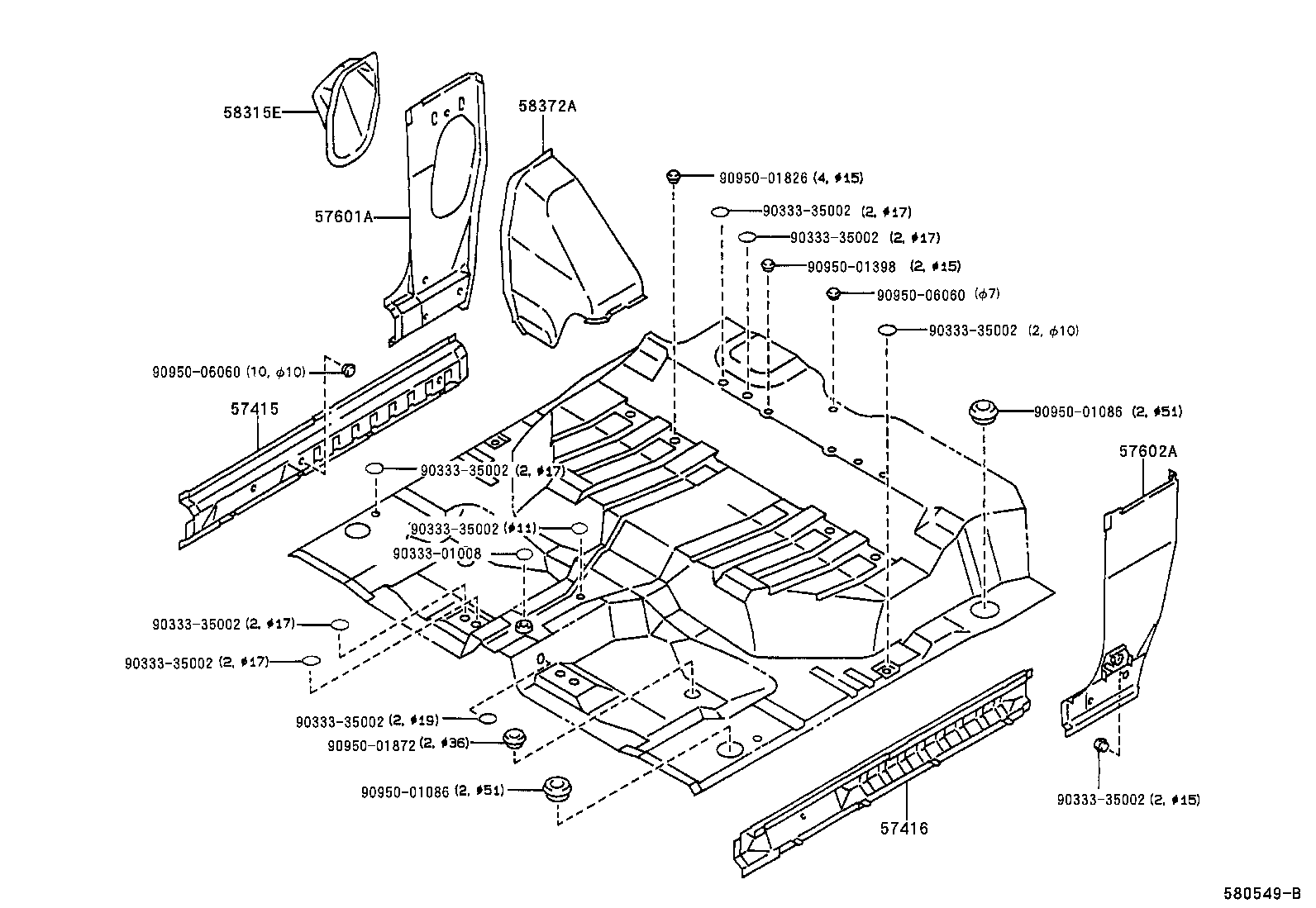

Click highlighted areas on diagram

diagram 57415 57416 57601A 57602A 58315E 58372A 9033301008 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001086 9095001086 9095001398 9095001826 9095001872 9095006060 9095006060
Part # Description Qty Price
57415 - RAIL, FLOOR SIDE, REAR RH
57415-89104

LN85,86,RN85,YN85,86,87..TW1

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-89102

LN85,86,RN85,YN85,86,87..TW1

 1
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-89104

LN85..LHD..TW1

W(SEPARATER SEAT) & W(REAR SEAT BELT)

 1
57601-89103

RN85..LHD..TW1;LN85,86,YN85,86,87..TW1..(GEN,V)

 1
57601-89103

LN85..LHD..TW1

BODY RUST PROTECTING & W(REAR SEAT BELT)

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-89103

LN85,86,RN85,YN85,86,87..TW1

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-89103

LN85,86,RN85,YN85,86,87..TW1

 1
58372A - HOUSING, FUEL INLET PIPE
58372-89103

LN85,86,RN85,YN85,86,87..TW1

 1
Common parts
90333-01008
90333-35002
90950-01086
90950-01398
90950-01826
90950-01872
90950-06060
