LN85L-PRPRS (1988)
Toyota Hilux 2wd
(8808-9408)LN85,RN8#,YN81,86..4F ; (9408- )4F
G#

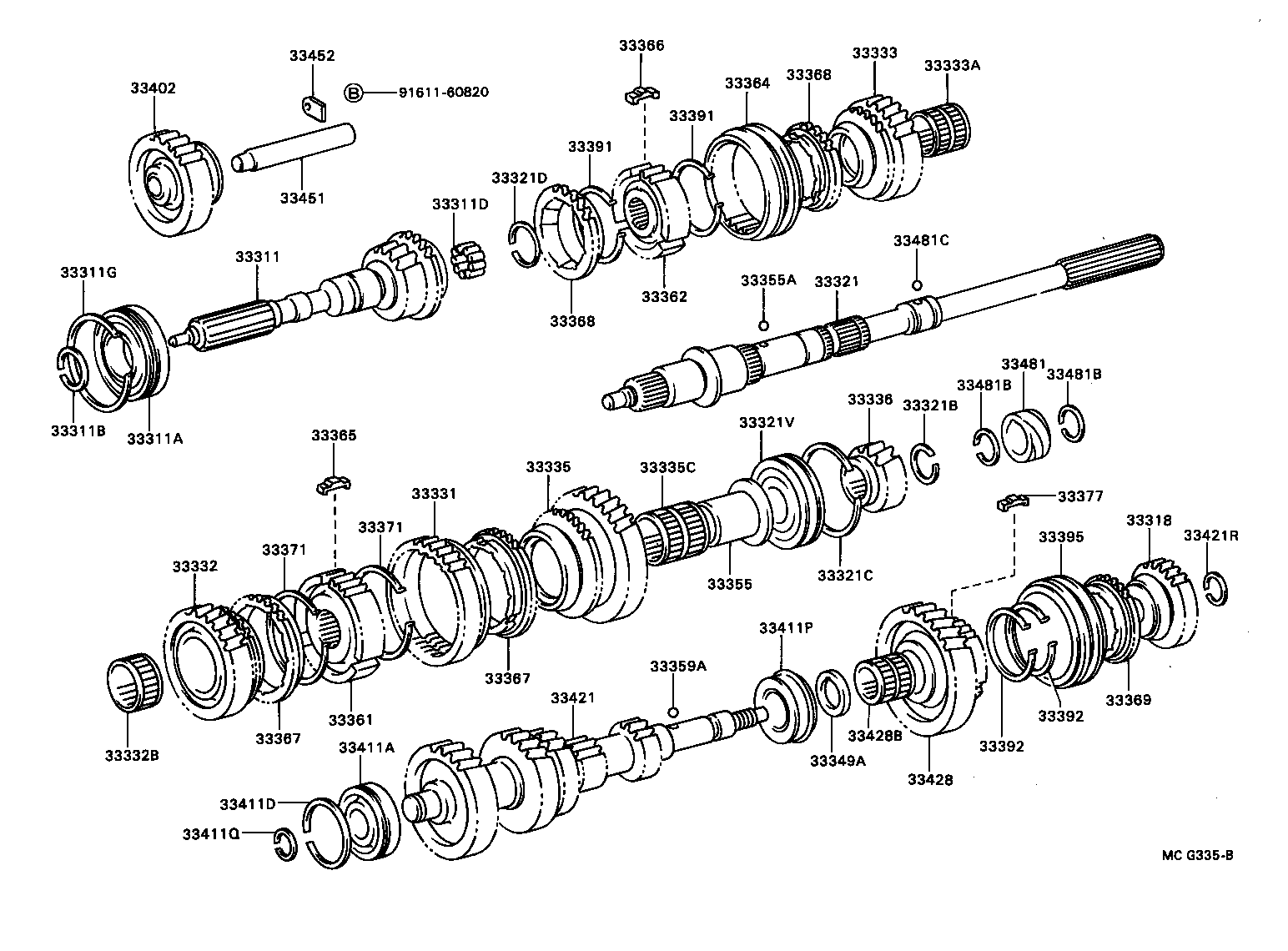

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33176 - SEPARATOR, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33176-35011 |
LN85,RN8#,YN81,86..4F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-35040 |
YN80,85..4F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35026 |
YN80,85..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33169 |
YN80,85..4F T=2.10,MARK 2 |
1 | ||
| 90520-33170 |
YN80,85..4F T=2.15,MARK 3 |
1 | ||
| 90520-33107 |
YN80,85..4F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
YN80,85..4F T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
YN80,85..4F T=2.25,MARK 5 |
1 | ||
| 90520-33171 |
YN80,85..4F T=2.20,MARK 4 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
YN80,85..4F |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35071 |
YN80,85..4F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 90520-28246 |
YN80,85..4F T=1.90-1.95,MARK E |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28245 |
YN80,85..4F T=1.80-1.85,MARK D |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68185 |
YN80,85..4F T=1.75,MARK 5 |
1 | ||
| 90520-68181 |
YN80,85..4F T=1.35,MARK 1 |
1 | ||
| 90520-68183 |
YN80,85..4F T=1.55,MARK 3 |
1 | ||
| 90520-68182 |
YN80,85..4F T=1.45,MARK 2 |
1 | ||
| 90520-68184 |
YN80,85..4F T=1.65,MARK 4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-26010 |
YN80,85..4F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-35030 |
YN80,85..4F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-26010 |
YN80,85..4F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-35010 |
YN80,85..4F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37050 |
YN80,85..4F |
2 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-26012 |
YN80,85..4F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-26011 |
YN80,85..4F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-26010 |
YN80,85..4F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-26010 |
YN80,85..4F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-26010 |
YN80,85..4F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-26010 |
YN80,85..4F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90364-19068 |
YN80,85..4F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35051 |
YN80,85..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30020 |
YN80,85..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-25020 |
YN80,85..4F N=5,MARK 5X17-19 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
| Common parts | ||||
| 91611-60820 | ||||
(8808-9108)5F ; (9108-9909)RN85,90..5F..ARL,GEN; (9108-0106)LN8#,9#,RN125,80,YN8#,
G#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-35040 |
YN80,85..4F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35026 |
YN80,85..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33169 |
YN80,85..4F T=2.10,MARK 2 |
1 | ||
| 90520-33170 |
YN80,85..4F T=2.15,MARK 3 |
1 | ||
| 90520-33107 |
YN80,85..4F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
YN80,85..4F T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
YN80,85..4F T=2.25,MARK 5 |
1 | ||
| 90520-33171 |
YN80,85..4F T=2.20,MARK 4 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
YN80,85..4F |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35071 |
YN80,85..4F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 90520-28246 |
YN80,85..4F T=1.90-1.95,MARK E |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28245 |
YN80,85..4F T=1.80-1.85,MARK D |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68185 |
YN80,85..4F T=1.75,MARK 5 |
1 | ||
| 90520-68181 |
YN80,85..4F T=1.35,MARK 1 |
1 | ||
| 90520-68183 |
YN80,85..4F T=1.55,MARK 3 |
1 | ||
| 90520-68182 |
YN80,85..4F T=1.45,MARK 2 |
1 | ||
| 90520-68184 |
YN80,85..4F T=1.65,MARK 4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-26010 |
YN80,85..4F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-35030 |
YN80,85..4F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-26010 |
YN80,85..4F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-35010 |
YN80,85..4F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37050 |
YN80,85..4F |
2 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-26012 |
YN80,85..4F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-26011 |
YN80,85..4F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-26010 |
YN80,85..4F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-26010 |
YN80,85..4F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-26010 |
YN80,85..4F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-26010 |
YN80,85..4F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90364-19068 |
YN80,85..4F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35051 |
YN80,85..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30020 |
YN80,85..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-25020 |
YN80,85..4F N=5,MARK 5X17-19 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
| Common parts | ||||
| 91611-60820 | ||||
(8808-9408)YN80,85..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105 - BAFFLE SUB-ASSY, EXTENSION HOUSING OIL | ||||
| 33143-26020 |
YN80,85..4F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-35040 |
YN80,85..4F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35026 |
YN80,85..4F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33169 |
YN80,85..4F T=2.10,MARK 2 |
1 | ||
| 90520-33170 |
YN80,85..4F T=2.15,MARK 3 |
1 | ||
| 90520-33107 |
YN80,85..4F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
YN80,85..4F T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
YN80,85..4F T=2.25,MARK 5 |
1 | ||
| 90520-33171 |
YN80,85..4F T=2.20,MARK 4 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33006 |
YN80,85..4F |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
YN80,85..4F |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35071 |
YN80,85..4F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97183-06306 |
YN80,85..4F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 90520-28246 |
YN80,85..4F T=1.90-1.95,MARK E |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28245 |
YN80,85..4F T=1.80-1.85,MARK D |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68185 |
YN80,85..4F T=1.75,MARK 5 |
1 | ||
| 90520-68181 |
YN80,85..4F T=1.35,MARK 1 |
1 | ||
| 90520-68183 |
YN80,85..4F T=1.55,MARK 3 |
1 | ||
| 90520-68182 |
YN80,85..4F T=1.45,MARK 2 |
1 | ||
| 90520-68184 |
YN80,85..4F T=1.65,MARK 4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28244 |
YN80,85..4F T=1.70-1.75,MARK C |
1 | ||
| 90520-28242 |
YN80,85..4F T=1.50-1.55,MARK A |
1 | ||
| 90520-28243 |
YN80,85..4F T=1.60-1.65,MARK B |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-26010 |
YN80,85..4F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-35030 |
YN80,85..4F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-26010 |
YN80,85..4F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-35010 |
YN80,85..4F |
1 | ||
| 33335A - BALL, 1ST SHIFT RESTRICT | ||||
| 90360-06004 |
YN80,85..4F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37050 |
YN80,85..4F |
2 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37050 |
YN80,85..4F |
2 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-26011 |
YN80,85..4F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-26012 |
YN80,85..4F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-26011 |
YN80,85..4F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-26010 |
YN80,85..4F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-26010 |
YN80,85..4F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-26010 |
YN80,85..4F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26023 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14010 |
YN80,85..4F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-26010 |
YN80,85..4F |
1 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-30021 |
YN80,85..4F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90364-19068 |
YN80,85..4F |
1 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-19450 |
YN80,85..4F |
2 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-19450 |
YN80,85..4F |
2 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90280-03005 |
YN80,85..4F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90364-19068 |
YN80,85..4F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35051 |
YN80,85..4F |
1 | ||
| 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 | ||||
| 33441-26032 |
YN80,85..4F T=2.45 |
1 | ||
| 33441-26012 |
YN80,85..4F T=2.25 |
1 | ||
| 33441-26052 |
YN80,85..4F T=2.65 |
1 | ||
| 33441-26022 |
YN80,85..4F T=2.35 |
1 | ||
| 33441-26061 |
YN80,85..4F T=2.21 |
1 | ||
| 33441-26042 |
YN80,85..4F T=2.55 |
1 | ||
| 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 | ||||
| 33441-26032 |
YN80,85..4F T=2.45 |
1 | ||
| 33441-26012 |
YN80,85..4F T=2.25 |
1 | ||
| 33441-26052 |
YN80,85..4F T=2.65 |
1 | ||
| 33441-26022 |
YN80,85..4F T=2.35 |
1 | ||
| 33441-26061 |
YN80,85..4F T=2.21 |
1 | ||
| 33441-26042 |
YN80,85..4F T=2.55 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30020 |
YN80,85..4F |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03005 |
YN80,85..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-25020 |
YN80,85..4F N=5,MARK 5X17-19 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
YN80,85..4F |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-28009 |
YN80,85..4F T=1.50,OD=33.8 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
