LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN125,8#,90

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 87240 87240 87245A 87245A 87245E 87245E 87245X 87246A 87246A 87248A 87248A 87249A 87249A 87263 9010506229 9010506229 9011908291 9011908291 9046400232 9046400520 9046400520 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9162640616 9165140620 9165140620 9165140814 9165140814 9165141018 9165640616 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671124017 9671124017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87248A - PIPE, HEATER WATER INLET, A
87208-22130

RN125,8#,90

 1
87248A - PIPE, HEATER WATER INLET, A
87208-22130

RN125,8#,90

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN125,8#,90

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN125,8#,90

 1
Common parts
87124-28030
90105-06229
90119-08291
90464-00232
90464-00520
90467-22004
91626-40616
91651-40620
91651-40814
91651-41018
91656-40616
91656-F0616
96112-10250
96711-24017

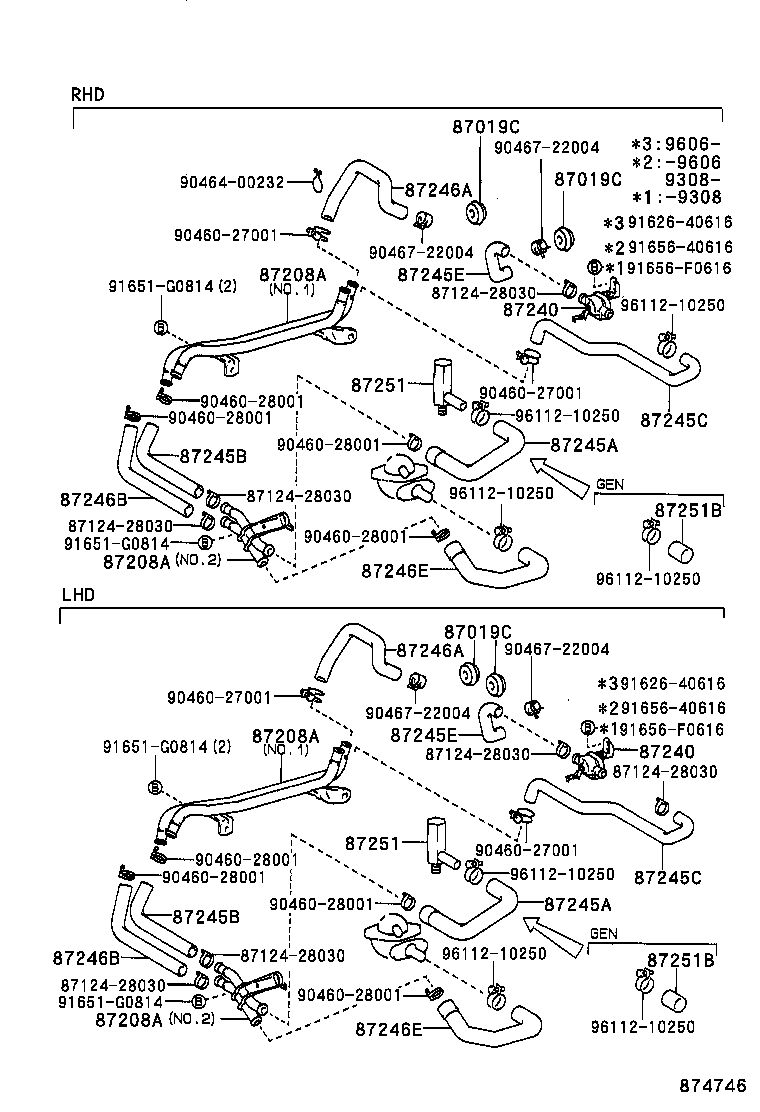

(8810- )LN8#,90

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 87208A 87208A 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246B 87246B 87246E 87246E 87251 87251 87251B 87251B 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 9162640616 9162640616 91651G0814 91651G0814 91651G0814 91651G0814 9165640616 9165640616 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN8#,90..ARL,GEN

 1
87245-89281

LN8#,90

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN8#,90..ARL,GEN

 1
87245-89281

LN8#,90

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN81,85,86,90..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN81,85,86,90..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-89282

LN8#,90

 1
87245-89282

LN8#,90..ARL,GEN

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-89282

LN8#,90

 1
87245-89282

LN8#,90..ARL,GEN

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN8#,90..ARL,GEN

 1
87245-89239

LN8#,90

 1
87245-89280

LN8#,90

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN8#,90..ARL,GEN

 1
87245-89239

LN8#,90

 1
87245-89280

LN8#,90

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN8#,90

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN8#,90

 1
87251B - PLUG, HEATER WATER
90339-16007

LN8#,90..GEN

 2
87251B - PLUG, HEATER WATER
90339-16007

LN8#,90..GEN

 2
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
91626-40616
91651-G0814
91656-40616
91656-F0616
96112-10250

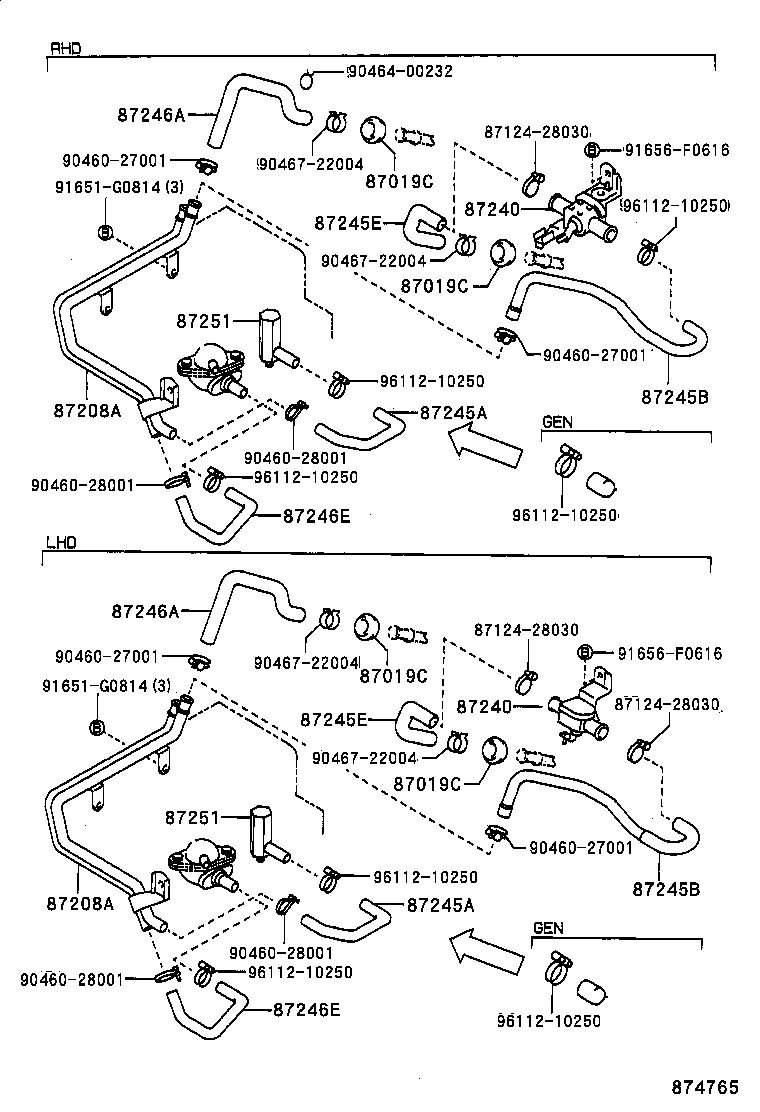

(8808-8810)LN8#,90

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 8712428030 8712428030 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87251 87251 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 91651G0814 91651G0814 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V

 2
90480-36005

LN8#,90,RN125,8#,90,YN8#,92

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89144

LN8#,90

NO.2

 1
87208-89144

LN8#,90..ARL,GEN

NO.2

 1
87208-89143

LN8#,90

NO.1

 1
87208-89143

LN8#,90..ARL,GEN

NO.1

 1
87208-89136

LN8#,90

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN125,8#,90,YN8#,92..LHD

 1
87240-89125

LN81,85,86,90..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89218

RN125,8#,90..LHD

 1
87245-89238

LN8#,90

 1
87245-89279

LN8#,90

 1
87245-89279

LN8#,90..ARL,GEN

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN8#,90..ARL,GEN

 1
87245-89281

LN8#,90

 1
87245B - HOSE, HEATER WATER, INLET B
87245-89281

LN8#,90..ARL,GEN

 1
87245-89281

LN8#,90

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN125,8#,90,YN8#,92..LHD

 1
87245-89232

LN81,85,86,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN81,85,86,90..LHD

 1
87245-89219

RN125,8#,90..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN8#,90..ARL,GEN

 1
87245-89239

LN8#,90

 1
87245-89280

LN8#,90

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89280

LN8#,90..ARL,GEN

 1
87245-89239

LN8#,90

 1
87245-89280

LN8#,90

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN8#,90

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN8#,90

 1
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
91651-G0814
91656-F0616
96112-10250
