LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

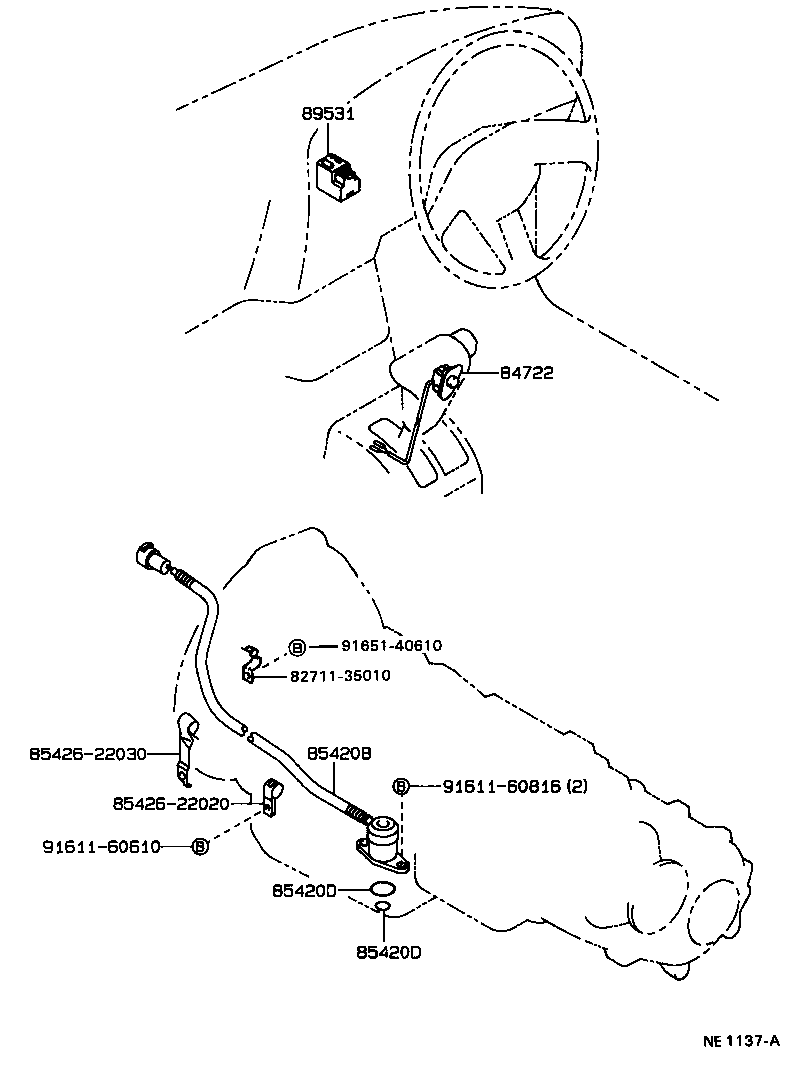

Click highlighted areas on diagram

diagram 8271135010 84722 85420B 85420D 85420D 8542622020 8542622030 89531 9161160610 9161160816 9165140610
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-3506004

LN85..LHD..4FC

BLUE,TRIM8#

 1
84722-3506003

LN85..LHD..4FC

GRAY,TRIM1#

 1
84722-3506006

LN85..LHD..4FC

BROWN,TRIM4#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-20050

LN85,RN85,90..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LN85,RN85,90..4FC

ID=23.15-23.45

 1
90301-11001

LN85,86,90,RN85,90..4FC

ID=9.6-10.0

 1
90301-23001

LN85..4FC

ID=23.15-23.45

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LN85,RN85,90..4FC

ID=23.15-23.45

 1
90301-11001

LN85,86,90,RN85,90..4FC

ID=9.6-10.0

 1
90301-23001

LN85..4FC

ID=23.15-23.45

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-28010

LN85,86,90,RN85,90..4FC

 1
Common parts
82711-35010
85426-22020
85426-22030
91611-60610
91611-60816
91651-40610
