LN85L-PRPRS (1988)
Toyota Hilux 2wd
ILLUST NO. 1 OF 4(8808- )RN125,8#,90
ENGINE,TRANSMISSION & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
2L,3L..LN8#,90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN8#,90,RN125,8#,90,YN8#,92 LWR |
1 | ||
| 82662-35180 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82662-89102 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN8#,90,RN125,8#,90,YN8#,92 LWR |
1 | ||
| 82662-35180 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82662-89102 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN90;LN8#,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
RN125,8#,YN8#,92..ARL,GEN,V |
1 | ||
| 83530-30060 |
LN8#,90..ARL,GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
YN80,85..4F |
1 | ||
| 84210-26030 |
YN80,85..4F..(ARL,GEN) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35010 |
LN85,RN85,90..4FC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35240 |
RN125,8#..LHD |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35240 |
RN125,8#..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06033 | ||||
| 90430-18008 | ||||
| 90461-08312 | ||||
| 90464-00154 | ||||
| 90464-00232 | ||||
| 90468-08002 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 4(8808- )DLX,SR5,STD
INSTRUMENT PANEL & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39625 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35100 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35300 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD |
1 | ||
| 84310-35470 |
LN85,90,YN80,85,87,92..LHD W(RIGID TILT STEERING) |
1 | ||
| 84310-35320 |
LN85,90,YN80,85,87,92..LHD W(RIGID TILT STEERING) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 84312-12040 |
LN90;LN8#,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89115 |
RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85,YN85..RHD..MTM;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;RN85,YN87..5F..STD..(ARL,GEN);LN80,90,RN125,80,90,YN92..4FC,5F |
1 | ||
| 84332-89115 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 84332-89115 |
LN8#,90,RN125,8#,YN8#,92..GEN,TH,V |
1 | ||
| 84332-89115 |
RN85..DLX;RN85..5F..STD;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..RHD..MTM..(ARL,GEN);LN85,YN80,81,85,86..LHD..MTM..CBU;LN80,90,RN125,80,90,YN87,92..(4FC,5F)..(ARL,GEN,V) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35090 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 84450-35090 |
LN90;LN8#,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35220 |
LN85,90,YN80,85,87,92..LHD W(RIGID TILT STEERING) |
1 | ||
| 84652-35200 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD |
1 | ||
| 84652-35370 |
LN85,90,YN80,85,87,92..LHD W(RIGID TILT STEERING) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 84660-89105 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 84660-89105 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89113 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
YN87..GEN;RN85..DLX;RN85..IV3;LN85..4FC..IV3;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..LHD..T1..5F..IV3;RN85,YN80..T1..MTM..STD..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,81,86,90,RN125,80,YN81,86,92..5F..(DLX,STD) |
1 | ||
| 85500-12250 |
YN87..GEN;RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,90,RN125,8#,YN92..(4D,T1)..5F..(DLX,STD) |
1 | ||
| 85500-12250 |
LN8#,90,RN125,8#,YN8#,92 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
YN87..GEN;RN85..DLX;RN85..IV3;LN85..4FC..IV3;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..LHD..T1..5F..IV3;RN85,YN80..T1..MTM..STD..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,81,86,90,RN125,80,YN81,86,92..5F..(DLX,STD) |
1 | ||
| 85500-12250 |
YN87..GEN;RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,90,RN125,8#,YN92..(4D,T1)..5F..(DLX,STD) |
1 | ||
| 85500-12250 |
LN8#,90,RN125,8#,YN8#,92 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 85520-20080 |
RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85,YN85..RHD..MTM;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;RN85,YN87..5F..STD..(ARL,GEN);LN80,90,RN125,80,90,YN92..4FC,5F |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 85520-20080 |
RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85,YN85..RHD..MTM;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;RN85,YN87..5F..STD..(ARL,GEN);LN80,90,RN125,80,90,YN92..4FC,5F |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
YN87..GEN;RN85..DLX;YN80,81,86;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,90,RN125,8#,YN92..(4D,T1)..5F..(DLX,STD) |
1 | ||
| 85533-10010 |
LN8#,90,RN125,8#,YN8#,92 |
1 | ||
| 85533-10010 |
YN87..GEN;RN85..DLX;RN85..IV3;LN85..4FC..IV3;LN85..TW1..4FC;LN85..RHD..4FC..GEN;LN85,YN85..LHD..MTM..CBU;LN85,YN85..LHD..T1..5F..IV3;RN85,YN80..T1..MTM..STD..CBU;LN85,YN85..RHD..MTM..(DLX,STD);LN80,81,86,90,RN125,80,YN81,86,92..5F..(DLX,STD) |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 14V 0.065A |
1 | ||
| 88607-16010 |
LN8#,90,RN125,8#,90,YN8#,92 14V 0.065A |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN8#,90,YN8#,9#
DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80118 |
LN85,90,RN85,90,YN85,86,87,92..ARL,GEN,V |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
LN85,86,RN125,85,YN85,86,87..4D,TW1 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-89106 |
LN8#,90,RN8#,YN8#,92..GEN,TH,V |
1 | ||
| 86650-89106 |
LN8#,90,RN8#,YN8#,92..GEN,V |
1 | ||
| Common parts | ||||
| 90119-06121 | ||||
| 90179-06026 | ||||
| 90179-08059 | ||||
| 93319-14010 | ||||
| 93319-A4010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

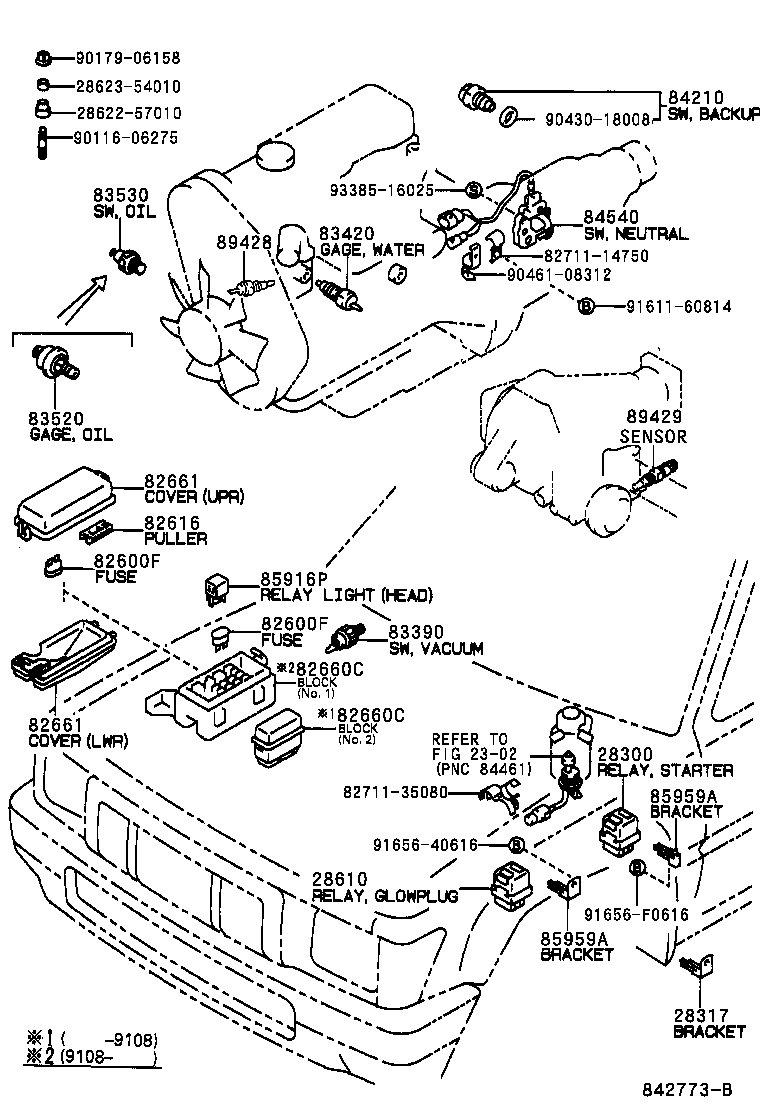

ILLUST NO. 1 OF 4(8808- )LN8#,9#
ENGINE,TRANSMISSION & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
2L,3L..LN8#,90 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54300 |
2L,3L..LN8#,90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN8#,90,RN125,8#,90,YN8#,92 LWR |
1 | ||
| 82662-35180 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82662-89102 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN8#,90,RN125,8#,90,YN8#,92 LWR |
1 | ||
| 82662-35180 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 82662-89102 |
LN8#,90,RN125,8#,90,YN8#,92 UPR |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LN90;LN8#..ARL,GEN |
1 | ||
| 83390-30020 |
LN8#,90 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN90;LN8#,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
RN125,8#,YN8#,92..ARL,GEN,V |
1 | ||
| 83530-30060 |
LN8#,90..ARL,GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
YN80,85..4F |
1 | ||
| 84210-26030 |
YN80,85..4F..(ARL,GEN) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35010 |
LN85,RN85,90..4FC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 82711-35080 | ||||
| 90116-06275 | ||||
| 90179-06158 | ||||
| 90430-18008 | ||||
| 90461-08312 | ||||
| 91611-60814 | ||||
| 91656-40616 | ||||
| 91656-F0616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 3 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
INSTRUMENT PANEL & COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
2L,3L..LN8#,90 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54420 |
2L,3L..LN8#,90 |
1 | ||
| 28521-54370 |
2L,3L..LN8#,90 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54170 |
2L,3L..LN8#,9# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN8#,9#,RN125,8#,90,YN8#,9# 10A |
1 | ||
| 90982-09005 |
LN8#,9#,RN125,8#,90,YN8#,9# 7.5A |
1 | ||
| 90982-09003 |
LN8#,9#,RN125,8#,90,YN8#,9# 15A |
1 | ||
| 90982-09004 |
LN8#,9#,RN125,8#,90,YN8#,9# 20A,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-89105 |
LN85..4FC..GEN;LN85..LHD..MTM;LN90,RN8#,YN8#,92..GEN,V |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LN8#,90,RN125,8#,90,YN8#,92 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27040 |
YN80,85,87,92..GEN,TH |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27040 |
YN80,85,87,92..GEN,TH |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 91656-40616 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
