LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108) ; (9108- )LN8#,9#,RN8#,90,YN8#,9#

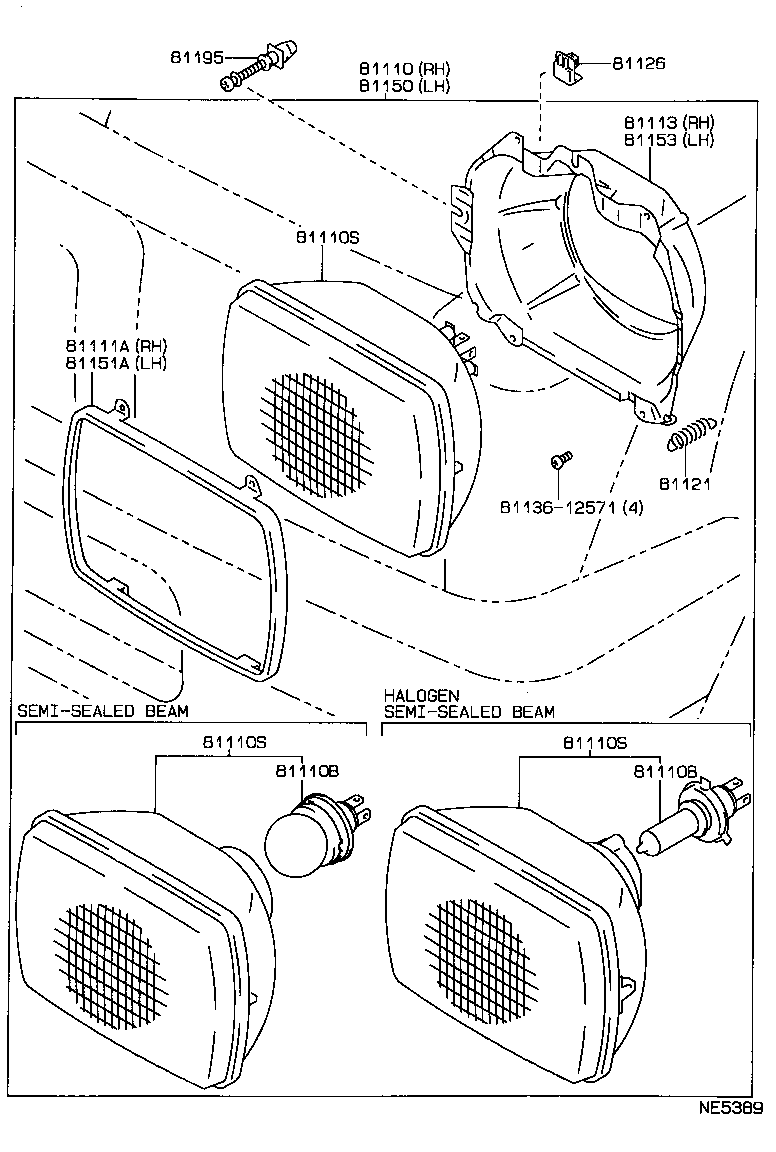

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110S 81110S 81110S 81111A 81113 81121 81126 8113612571 81150 81151A 81153 81195
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-89150

LN81,85,86,90,RN125,8#,YN8#,92..LHD

 1
81110-35170

LN81,85,86,90,RN125,8#,YN8#,92..LHD

W(HALOGEN SEALED BEAM HEADLAMP)

 1
81110-89155

LN81,85,86,90,RN125,8#,YN8#,92..LHD

W(HALOGEN SEALED BEAM HEADLAMP)

 1
81110-89159

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)..GEN

*HWS

 1
81110-89160

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)..GEN

*HYS

 1
81110-89153

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

W(SEMI-SEALED BEAM HEADLAMP)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LN80,85,90,YN80,85,87,92..GEN,TH

12V 45/40W,WHITE

 2
90981-13016

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 60/55W,*HAL *YE,*HWS

 2
90981-13015

LN80,85,90,YN80,85,87,92..GEN,TH

12V 60/55W,*HAL *WH,*HWS

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LN80,85,90,YN80,85,87,92..GEN,TH

12V 45/40W,WHITE

 2
90981-13016

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 60/55W,*HAL *YE,*HWS

 2
90981-13015

LN80,85,90,YN80,85,87,92..GEN,TH

12V 60/55W,*HAL *WH,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04020

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/35W,*HAL,*WB

 2
90981-04008

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)

12V 60/55W,*HWS

 2
90981-04004

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*WB

 2
90981-04006

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 45/40W,*WSB

 2
90981-04043

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*HAL,*WB

 2
90981-04009

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 60/55W,*HYS,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04020

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/35W,*HAL,*WB

 2
90981-04008

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)

12V 60/55W,*HWS

 2
90981-04004

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*WB

 2
90981-04006

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 45/40W,*WSB

 2
90981-04043

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*HAL,*WB

 2
90981-04009

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 60/55W,*HYS,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04020

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/35W,*HAL,*WB

 2
90981-04008

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)

12V 60/55W,*HWS

 2
90981-04004

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*WB

 2
90981-04006

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 45/40W,*WSB

 2
90981-04043

LN81,85,86,90,RN125,8#,YN8#,92..LHD

12V 65/55W,*HAL,*WB

 2
90981-04009

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

12V 60/55W,*HYS,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LN8#,90,RN125,8#,90,YN8#,92

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89149

LN8#,90,RN125,8#,90,YN8#,92

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

LN8#,90,RN125,8#,90,YN8#,92

 2
81126 - PLATE, HEADLAMP
81124-89101

LN8#,90,RN125,8#,90,YN8#,92

 8
81150 - HEADLAMP ASSY, LH
81150-89155

LN81,85,86,90,RN125,8#,YN8#,92..LHD

W(HALOGEN SEALED BEAM HEADLAMP)

 1
81150-89150

LN81,85,86,90,RN125,8#,YN8#,92..LHD

 1
81150-35150

LN81,85,86,90,RN125,8#,YN8#,92..LHD

W(HALOGEN SEALED BEAM HEADLAMP)

 1
81150-89160

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)..GEN

*HYS

 1
81150-89159

YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)..GEN

*HWS

 1
81150-89153

RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD..GEN

W(SEMI-SEALED BEAM HEADLAMP)

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LN8#,90,RN125,8#,90,YN8#,92

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89149

LN8#,90,RN125,8#,90,YN8#,92

 1
81195 - SCREW, HEADLAMP
81195-89101

LN8#,90,RN8#,90,YN8#,92

 4
81195-89102

LN8#,90,RN125,8#,90,YN8#,92

 4
Common parts
81136-12571
