LN85L-PRPRS (1988)
Toyota Hilux 2wd

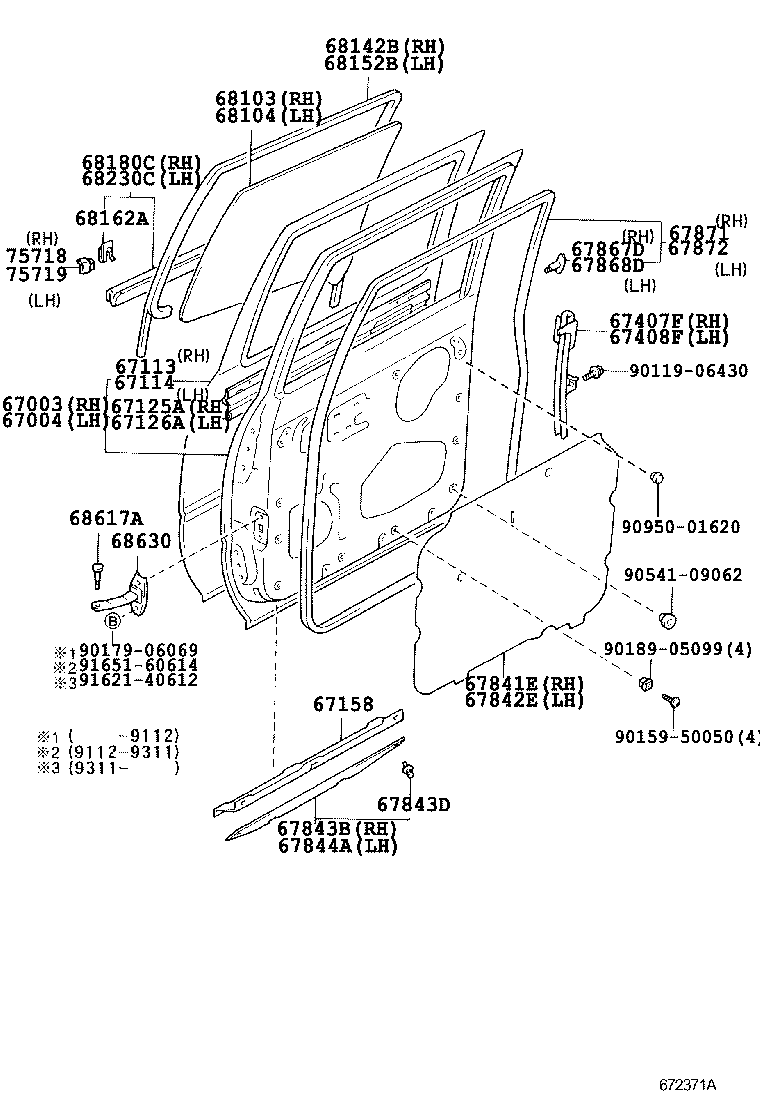

ILLUST NO. 2 OF 2(8808- )TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-89107 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-89107 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-89104 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-89104 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67125A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH | ||||
| 67125-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67126A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH | ||||
| 67125-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67158 - BRACKET, REAR DOOR LOWER HOLE | ||||
| 67158-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
2 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-89104 |
LN85,86,RN85,YN85,86,87..TW1..(ARL,GEN) |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-89104 |
LN85,86,RN85,YN85,86,87..TW1..(ARL,GEN) |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-89102 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-89102 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 90467-0704110 |
LN85,RN85,YN85,86,87..TW1 MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-0704101 |
LN85,RN85,YN85,86,87..TW1 BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-07041E1 |
LN85,RN85,YN85,86,87..TW1 BROWN,TRIM4# |
4 | ||
| 90467-0704144 |
LN85,RN85,YN85,86,87..TW1 BLUE,TRIM8# |
4 | ||
| 90467-0704156 |
LN85,RN85,YN85,86,87..TW1 BROWN,TRIM4# |
4 | ||
| 90467-07041J1 |
LN85,RN85,YN85,86,87..TW1 MEDIUM BLUE,TRIM8# |
4 | ||
| 90467-0704101 |
LN85,YN85,87..TW1..GEN BLACK,TRIM11,41,81 |
4 | ||
| 90467-07041B2 |
YN85..TW1;YN86..TW1..DLX;LN85,RN85,YN87..TW1..(4FC,5F)..(DLX,STD) MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-07041E1 |
YN85..TW1;YN86..TW1..DLX;LN85,RN85,YN87..TW1..(4FC,5F)..(DLX,STD) BROWN,TRIM4# |
4 | ||
| 90467-07041J1 |
YN85..TW1;YN86..TW1..DLX;LN85,RN85,YN87..TW1..(4FC,5F)..(DLX,STD) MEDIUM BLUE,TRIM8# |
4 | ||
| 90467-07041B2 |
LN85,RN85,YN85,86,87..TW1 MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-0704101 |
LN85,YN85,87..TW1;RN85,YN86..TW1..5F BLACK,TRIM1#,4#,8# |
4 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
LN85,86,RN85,YN85,86,87..TW1 |
15 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
LN85,86,RN85,YN85,86,87..TW1 |
15 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-89103 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-89103 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-89106 |
RN85..TW1..V;LN85,86,YN85,86,87..TW1..(GEN,V) *TT,T=3.5,BLUE |
1 | ||
| 68113-89105 |
LN86..TW1..(ARL,V);LN85,RN85,YN85,86,87..TW1 *TEM,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-89101 |
LN86..TW1..(ARL,V);LN85,RN85,YN85,86,87..TW1 *TEM,T=3.5 |
1 | ||
| 68114-89102 |
RN85..TW1..V;LN85,86,YN85,86,87..TW1..(GEN,V) *TT,T=3.5,BLUE |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-89103 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-89101 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-89111 |
LN85,86,RN85,YN85,86,87..TW1 |
6 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-89103 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68180-89103 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
LN85,86,RN125,85,YN85,86,87..4D,TW1 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-35010 |
LN85,86,RN125,85,YN85,86,87..4D,TW1 PLANT NO.A51,52 |
2 | ||
| 68630-89103 |
LN85,86,RN125,85,YN85,86,87..4D,TW1 PLANT NO.P11 |
2 | ||
| 68630-89103 |
LN85,86,RN125,85,YN85,86,87..4D,TW1 |
2 | ||
| Common parts | ||||
| 90119-06430 | ||||
| 90159-50050 | ||||
| 90179-06069 | ||||
| 90189-05099 | ||||
| 90541-09062 | ||||
| 90950-01620 | ||||
| 91621-40612 | ||||
| 91651-60614 | ||||

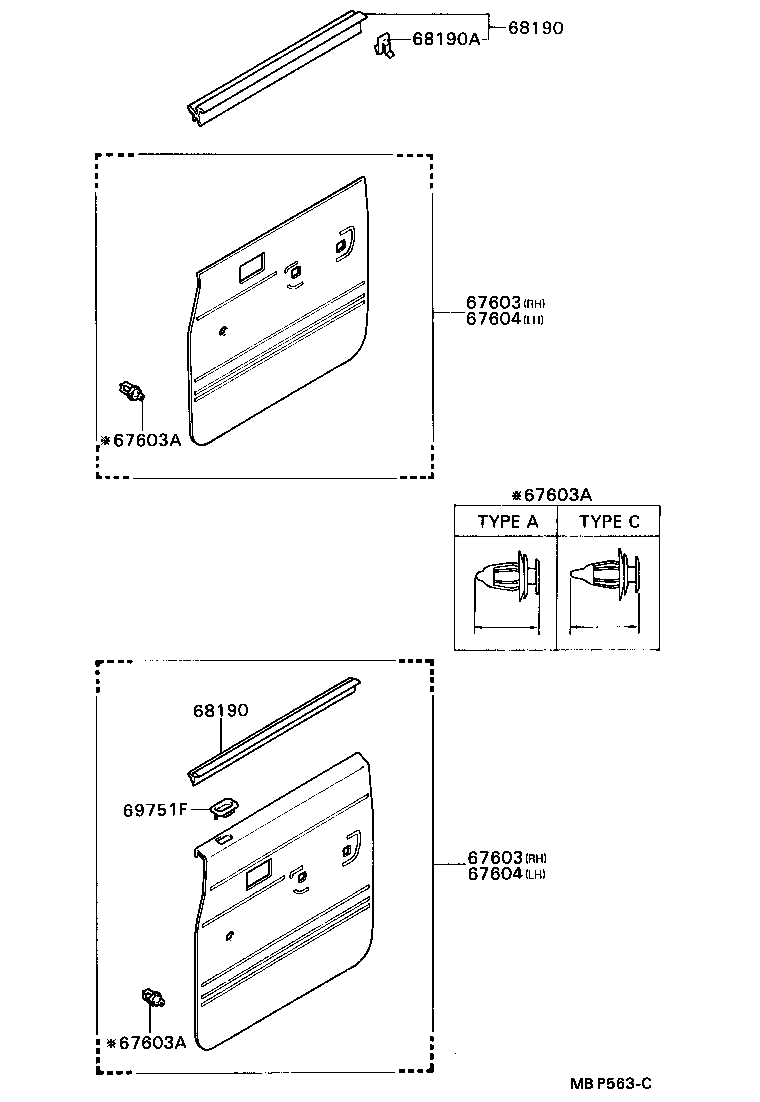

ILLUST NO. 1 OF 2(8808-0106)TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8911706 |
LN85,86,RN85,YN85,86,87..TW1..STD BROWN,TRIM4# |
1 | ||
| 67630-8911703 |
LN85,86,RN85,YN85,86,87..TW1..STD GRAY,TRIM1# |
1 | ||
| 67630-8911704 |
LN85,86,RN85,YN85,86,87..TW1..STD BLUE,TRIM8# |
1 | ||
| 67630-8911803 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67630-8911806 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67630-8911804 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8911706 |
LN85,86,RN85,YN85,86,87..TW1..STD BROWN,TRIM4# |
1 | ||
| 67630-8911703 |
LN85,86,RN85,YN85,86,87..TW1..STD GRAY,TRIM1# |
1 | ||
| 67630-8911704 |
LN85,86,RN85,YN85,86,87..TW1..STD BLUE,TRIM8# |
1 | ||
| 67630-8911803 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67630-8911806 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67630-8911804 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1 |
22 | ||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1..STD |
22 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1 |
22 | ||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1..STD |
22 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1 |
22 | ||
| 67771-16080 |
LN85,RN85,YN85,86,87..TW1..STD |
22 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8911706 |
LN85,86,RN85,YN85,86,87..TW1..STD BROWN,TRIM4# |
1 | ||
| 67640-8911704 |
LN85,86,RN85,YN85,86,87..TW1..STD BLUE,TRIM8# |
1 | ||
| 67640-8911803 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67640-8911806 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67640-8911703 |
LN85,86,RN85,YN85,86,87..TW1..STD GRAY,TRIM1# |
1 | ||
| 67640-8911804 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8911706 |
LN85,86,RN85,YN85,86,87..TW1..STD BROWN,TRIM4# |
1 | ||
| 67640-8911704 |
LN85,86,RN85,YN85,86,87..TW1..STD BLUE,TRIM8# |
1 | ||
| 67640-8911803 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67640-8911806 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67640-8911703 |
LN85,86,RN85,YN85,86,87..TW1..STD GRAY,TRIM1# |
1 | ||
| 67640-8911804 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-89103 |
LN85,86,RN85,YN85,86,87..TW1..STD RH |
1 | ||
| 68173-89108 |
RN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN DLX PACKAGE,RH |
1 | ||
| 68240-89103 |
LN85,86,RN85,YN85,86,87..TW1..STD LH |
1 | ||
| 68174-89105 |
RN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN DLX PACKAGE,LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-89103 |
LN85,86,RN85,YN85,86,87..TW1..STD RH |
1 | ||
| 68173-89108 |
RN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN DLX PACKAGE,RH |
1 | ||
| 68240-89103 |
LN85,86,RN85,YN85,86,87..TW1..STD LH |
1 | ||
| 68174-89105 |
RN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN DLX PACKAGE,LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
LN85,86,RN85,YN85,86,87..TW1..STD |
8 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-1203013 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,GRAY,TRIM1# |
2 | ||
| 69751-1203006 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
2 | ||
| 69751-1203024 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BLUE,TRIM8# |
2 | ||
| 69751-12030E0 |
LN85,YN85,87..TW1..GEN DLX PACKAGE,BROWN,TRIM4# |
2 | ||
