LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)TW1..GEN,V..CBU ; (0106- )TW1

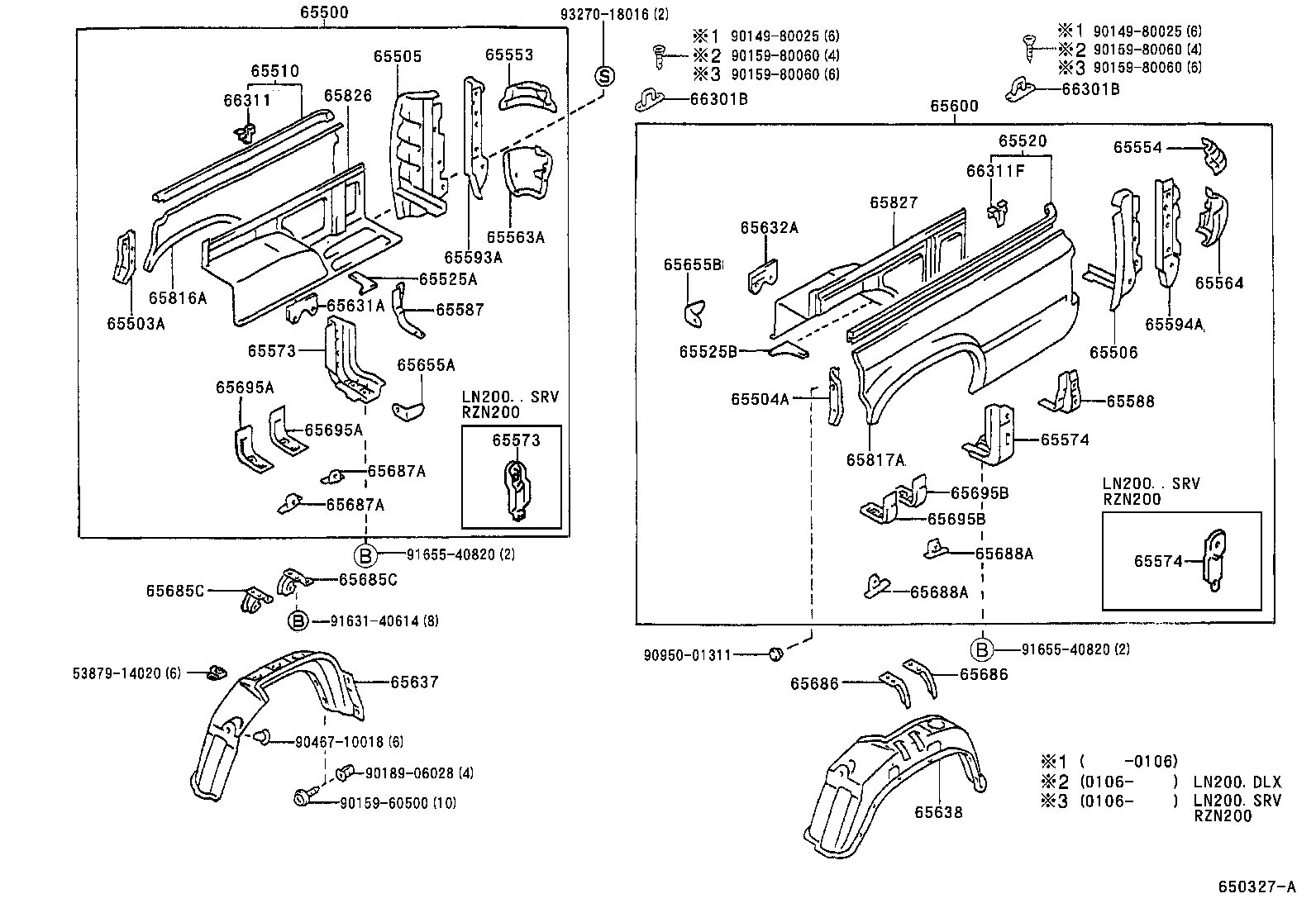

Click highlighted areas on diagram

diagram 5387914020 65500 65503A 65504A 65505 65506 65510 65520 65525A 65525B 65553 65554 65563A 65564 65573 65573 65574 65574 65587 65588 65593A 65594A 65600 65631A 65632A 65637 65638 65655A 65655B 65685C 65685C 65686 65686 65687A 65687A 65688A 65688A 65695A 65695A 65695B 65695B 65816A 65817A 65826 65827 66301B 66301B 66311 66311F 9014980025 9014980025 9015960500 9015980060 9015980060 9015980060 9015980060 9018906028 9046710018 9095001311 9163140614 9165540820 9165540820 9327018016
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-89381

LN85,RN85,YN85,86,87..TW1..(GEN,V)..CBU

 1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65551-89116

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65552-89116

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-89109

RN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU

 1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-89109

RN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU

 1
65510 - RAIL ASSY, SIDE PANEL TOP, RH
65510-89146

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65520 - RAIL ASSY, SIDE PANEL TOP, LH
65520-89146

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65525A - PLATE, SIDE PANEL FRAME, NO.1
65525-89101

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65525B - PLATE, SIDE PANEL FRAME, NO.1
65525-89101

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65553 - PLATE, SIDE PANEL REAR END POST, UPPER RH
65553-89111

LN8#,RN8#,YN8#..(GEN,V)..CBU

 1
65554 - PLATE, SIDE PANEL REAR END POST, UPPER LH
65554-89111

LN8#,RN8#,YN8#..(GEN,V)..CBU

 1
65554-89111

LN90..TH;LN8#,RN8#,YN8#..(GEN,V)..CBU

 1
65563A - PLATE, SIDE PANEL REAR END POST, LOWER RH
65563-89105

LN8#,RN8#,YN8#..(ARL,GEN,V)..CBU

 1
65564 - PLATE, SIDE PANEL REAR END POST, LOWER LH
65564-89104

LN8#,RN8#,YN8#..(ARL,GEN,V)..CBU

 1
65564-89104

LN90..TH;LN8#,RN8#,YN8#..(ARL,GEN,V)..CBU

 1
65573 - FRAME, SIDE PANEL, REAR RH
65573-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65573 - FRAME, SIDE PANEL, REAR RH
65573-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65574 - FRAME, SIDE PANEL, REAR LH
65574-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65574 - FRAME, SIDE PANEL, REAR LH
65574-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65587 - FRAME, SIDE PANEL, B RR RH
65587-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65588 - FRAME, SIDE PANEL, B RR LH
65588-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 1
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-89103

RN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU

 1
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-89103

LN8#,RN8#,YN8#..(GEN,V)..CBU

 1
65594-89103

LN90..TH;LN8#,RN8#,YN8#..(GEN,V)..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-89319

LN85,RN85,YN85,86,87..TW1..(GEN,V)..CBU

 1
65631A - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-89113

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65632A - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-89112

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-89103

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-89103

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65655A - BRACKET, WHEEL HOUSE SEAL, FRONT
65655-89103

LN8#,90,RN8#,90,YN8#,92..CBU

 1
65655B - BRACKET, WHEEL HOUSE SEAL, FRONT
65655-89103

LN8#,90,RN8#,90,YN8#,92..CBU

 1
65685C - BRACE, WHEEL HOUSE, RH
65685-89101

LN85,86,90,RN85,90,YN85,86,87,92..(DCB,XTR)..(ARL,GEN,V)..CBU

 2
65685C - BRACE, WHEEL HOUSE, RH
65685-89101

LN85,86,90,RN85,90,YN85,86,87,92..(DCB,XTR)..(ARL,GEN,V)..CBU

 2
65686 - BRACE, WHEEL HOUSE, LH
65686-89101

LN85,86,90,RN85,90,YN85,86,87,92..(DCB,XTR)..(ARL,GEN,V)..CBU

 2
65686 - BRACE, WHEEL HOUSE, LH
65686-89101

LN85,86,90,RN85,90,YN85,86,87,92..(DCB,XTR)..(ARL,GEN,V)..CBU

 2
65687A - BRACKET, WHEEL HOUSE BRACE, RH
65687-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65687A - BRACKET, WHEEL HOUSE BRACE, RH
65687-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65688A - BRACKET, WHEEL HOUSE BRACE, LH
65688-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65688A - BRACKET, WHEEL HOUSE BRACE, LH
65688-89101

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65695A - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-89102

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65695A - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-89102

LN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU

 2
65695B - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-89102

LN85,86,RN85,YN85,86,87..TW1..CBU

 2
65695-89102

LN85..DLX;YN85..RHD..GEN;LN85,YN85..LHD..TW1;LN86,RN85,YN86,87..TW1;LN85..RHD..5F..GEN..CBU

 2
65695B - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-89102

LN85,86,RN85,YN85,86,87..TW1..CBU

 2
65695-89102

LN85..DLX;YN85..RHD..GEN;LN85,YN85..LHD..TW1;LN86,RN85,YN86,87..TW1;LN85..RHD..5F..GEN..CBU

 2
65816A - PANEL, REAR BODY SIDE, RH
65816-89141

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65817A - PANEL, REAR BODY SIDE, LH
65817-89139

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-89116

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-89116

LN85,86,RN85,YN85,86,87..TW1..CBU

 1
66311 - HOOK, ROPE
66311-89109

LN85,86,RN85,YN85,86,87..TW1..CBU

 3
66311F - HOOK, ROPE, NO.2
66311-89109

LN85,86,RN85,YN85,86,87..TW1..CBU

 3
Common parts
53879-14020
90149-80025
90159-60500
90159-80060
90189-06028
90467-10018
90950-01311
91631-40614
91655-40820
93270-18016
