LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN85,86,9#,RN85,90,YN85,86,87,9#

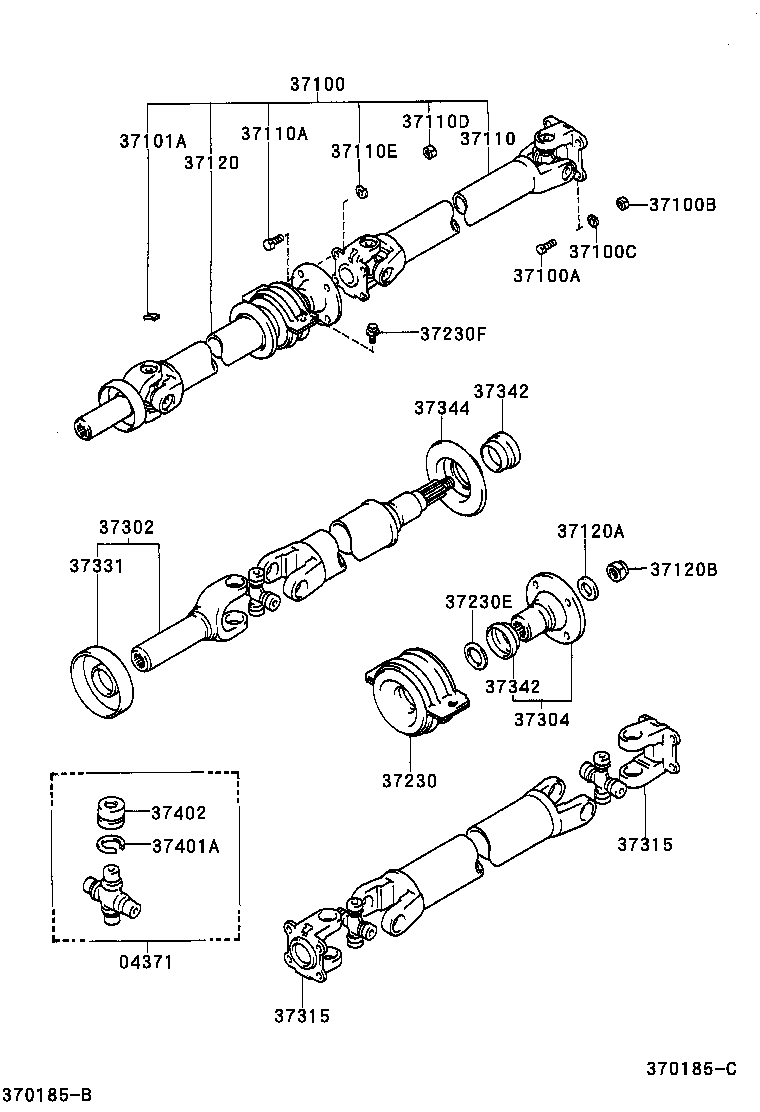

Click highlighted areas on diagram

diagram 04371 37100 37100A 37100B 37100C 37101A 37110 37110A 37110D 37110E 37120 37120A 37120B 37230 37230E 37230F 37302 37304 37315 37315 37331 37342 37342 37344 37401A 37402
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-25010

LN90..5F;LN85,91,YN85,86,90

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-35350

LN85..4FC

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10085

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-10059

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002

LN8#,9#,RN125,8#,90,YN8#,9#

 4
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01148

LN8#,9#,RN125,8#,90,YN8#,9#

4G,T=2.0

 1
90937-01151

LN8#,9#,RN125,8#,90,YN8#,9#

12G,L=24.9

 1
90937-01147

LN8#,9#,RN125,8#,90,YN8#,9#

2G,T=2.0

 1
90937-01150

LN8#,9#,RN125,8#,90,YN8#,9#

8G,L=16.6

 1
90937-01132

LN8#,9#,RN125,8#,90,YN8#,9#

10G,L=20.7

 1
90937-01149

LN8#,9#,RN125,8#,90,YN8#,9#

6G,L=12.4

 1
90937-01152

LN8#,9#,RN125,8#,90,YN8#,9#

14G,L=29.0

 1
90937-01201

LN8#,9#,RN125,8#,90,YN8#,9#

30G,T=4.5,L=27.4

 1
37110 - SHAFT ASSY, PROPELLER
37110-35230

LN85,9#,YN85,86,90

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LN85,86,9#,RN85,90,YN85,86,87,9#

*10-1.00PX27-13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

LN85,86,9#,RN85,90,YN85,86,87,9#

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

LN85,86,9#,RN85,90,YN85,86,87,9#

 4
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-35280

LN85..4FC

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005

LN90;LN85,YN85,86..ARL,GEN,V

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006

LN90;LN85,YN85,86..ARL,GEN,V

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35070

LN85,86,9#,RN85,90,YN85,86,87,9#

 1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-28005

LN90;LN85,YN85,86..ARL,GEN,V

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10049

LN85,86,9#,RN85,90,YN85,86,87,9#

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35010

YN86..V;LN90..5F;YN80,85..4F;LN80,85,YN81;YN85..5F..GEN

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35051

LN90;LN85,YN85,86..ARL,GEN,V

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN85,9#,YN85,86,90

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN85,9#,YN85,86,90

 2
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LN8#,9#,RN125,8#,90,YN8#,9#

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LN90;LN85,YN85,86..ARL,GEN,V

 2
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LN90;LN85,YN85,86..ARL,GEN,V

 2
37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37344-35021

LN90;LN85,YN85,86..ARL,GEN,V

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

LN90..5F;LN85,91,YN85,86,90

T=2.425-2.475

 12
90521-29072

LN90..5F;LN85,91,YN85,86,90

T=2.475-2.525

 12
90521-29070

LN90..5F;LN85,91,YN85,86,90

T=2.375-2.425

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-25020

LN85,90,YN85,86

 12
