LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

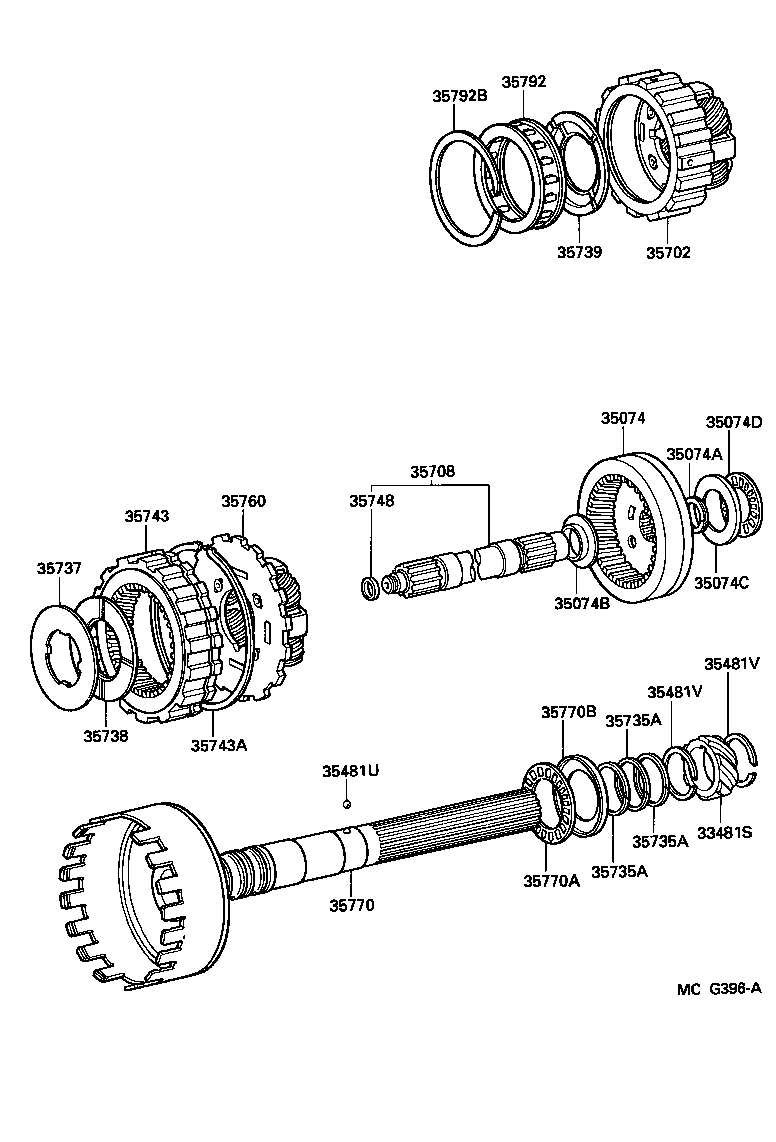

Click highlighted areas on diagram

diagram 33481S 35074 35074A 35074B 35074C 35074D 35481U 35481V 35481V 35702 35708 35735A 35735A 35735A 35737 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-25021

LN85..4FC..GEN

N=5,MARK 5X17-19,W(185R14C TIRE)

 1
33481-26011

LN85..4FC..GEN

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

LN85,86,90,RN85,90..4FC

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

LN85,86,90,RN85,90..4FC

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

LN85,RN85,90..4FC

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

LN85,86,90,RN85,90..4FC

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

LN85,86,90,RN85,90..4FC

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

LN85,86,90,RN85,90..4FC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

LN85,86,90,RN85,90..4FC

T=1.50,OD=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

LN85,86,90,RN85,90..4FC

T=1.50,OD=33.8

 2
35702 - CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR
35704-30030

LN85,86,90,RN85,90..4FC

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

LN85,86,90,RN85,90..4FC

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LN85,86,90,RN85,90..4FC

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LN85,86,90,RN85,90..4FC

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LN85,86,90,RN85,90..4FC

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-30020

LN85,86,90,RN85,90..4FC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30010

LN85,86,90,RN85,90..4FC

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30010

LN85,86,90,RN85,90..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

LN85,86,90,RN85,90..4FC

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

LN85,86,90,RN85,90..4FC

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

LN85,86,90,RN85,90..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30030

LN85,86,90,RN85,90..4FC

 1
35770 - SHAFT ASSY, OUTPUT
35770-30010

LN85,86,90,RN85,90..4FC

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

LN85,86,90,RN85,90..4FC

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

LN85,86,90,RN85,90..4FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

LN85,86,90,RN85,90..4FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LN85,86,90,RN85,90..4FC

 1
