LN85L-PRPRS (1988)
Toyota Hilux 2wd
Production
Aug 1988
-
Aug 1991
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4FC

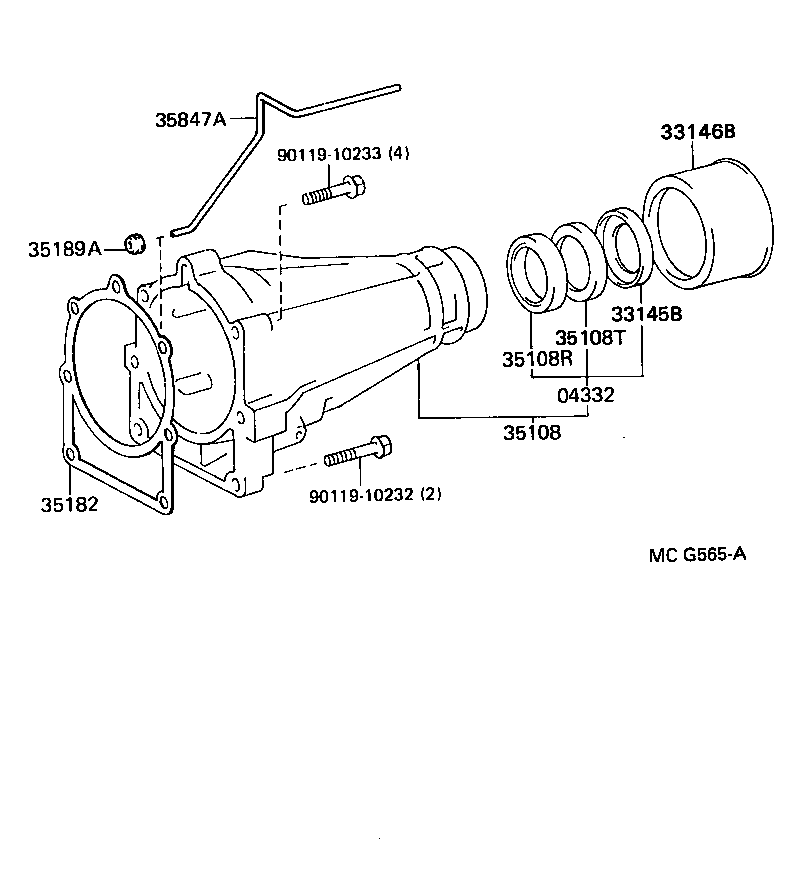

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30030 |
LN85,86,90,RN85,90..4FC |
1 | ||
| 33145B - RETAINER, EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
LN85,86,90,RN85,90..4FC |
1 | ||
| 33146B - DEFLECTOR, EXTENSION HOUSING DUST | ||||
| 33146-30010 |
LN85,RN85,90..4FC |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-20060 |
LN85,RN85,90..4FC |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
LN85,86,90,RN85,90..4FC |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-22010 |
LN85,RN85,90..4FC |
1 | ||
| 35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE | ||||
| 35189-30010 |
LN85,86,90,RN85,90..4FC |
1 | ||
| 35847A - TUBE, EXTENSION HOUSING BUSH APPLY | ||||
| 35847-30020 |
LN85,86,90,RN85,90..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
