LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9408)LN85,RN8#,YN81,86..4F ; (9408-9909)4F

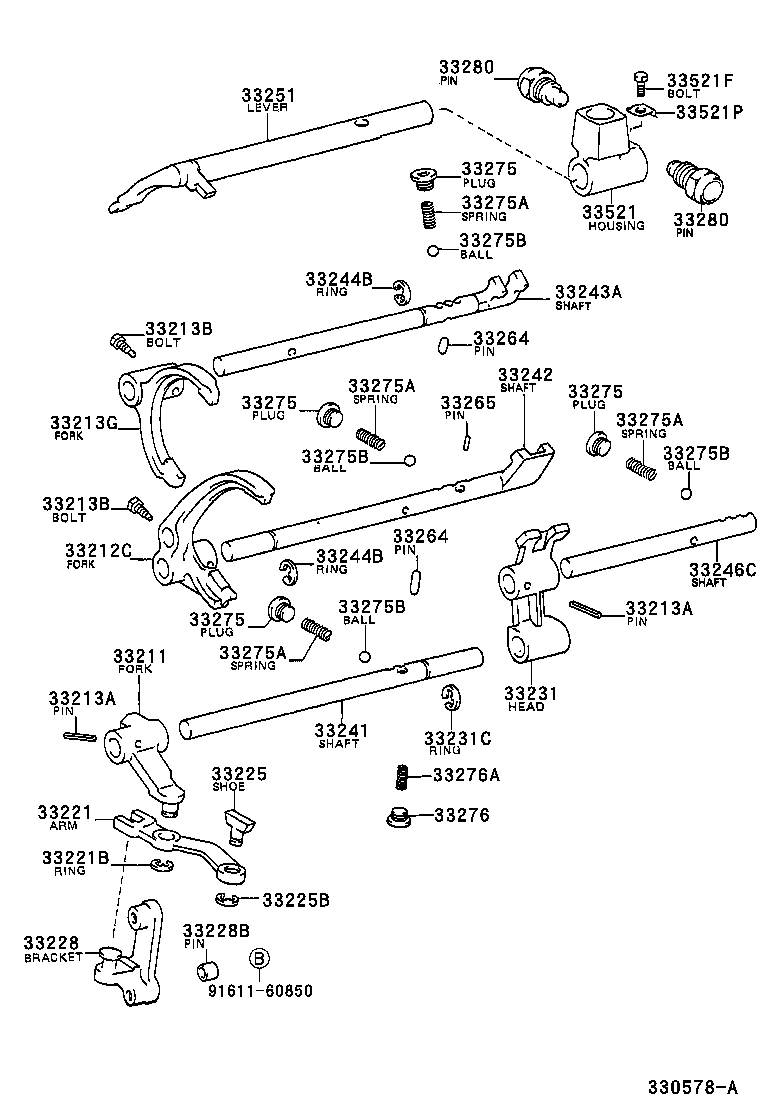

Click highlighted areas on diagram

G#

diagram 33211 33212C 33213A 33213A 33213B 33213B 33213G 33221 33221B 33225 33225B 33228 33228B 33231 33231C 33241 33242 33243A 33244B 33244B 33246C 33251 33264 33264 33265 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33276 33276A 33280 33280 33521 33521F 33521P 9161160850
Part # Description Qty Price
33212C - FORK, GEAR SHIFT, NO.1
33212-28010

YN80,85..4F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN85,RN8#,YN81,86..4F

 2
90254-05001

YN80,85;LN8#,90,RN125,8#,90,YN81,86,87,92..5F

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN85,RN8#,YN81,86..4F

 2
90254-05001

YN80,85;LN8#,90,RN125,8#,90,YN81,86,87,92..5F

 3
33213G - FORK, GEAR SHIFT, NO.2
33213-26020

YN80,85..4F

 1
33221 - ARM, REVERSE SHIFT
33221-30010

YN80,85..4F

 1
33231 - HEAD, REVERSE SHIFT
33231-35050

LN85,RN8#,YN81,86..4F

 1
33231-26010

YN80,85..4F

 1
33231C - RING(FOR REVERSE SHIFT HEAD)
90520-12003

LN85,RN8#,YN81,86..4F

 2
33241 - SHAFT, REVERSE SHIFT FORK
33244-35031

LN85,RN8#,YN81,86..4F

 1
33241-26010

YN80,85..4F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-26010

YN80,85..4F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-35060

YN80,85..4F

 1
33251 - LEVER, SHIFT & SELECT
33251-30040

YN80,85..4F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

YN80,85..4F

OD=6,L=16

 2
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

YN80,85..4F

OD=6,L=16

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

LN85,RN8#,YN81,86..4F

L=11.1,OD=4.8

 1
33265-30010

YN80,85..4F

L=28.8,OD=6.0

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN80,85..4F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN80,85..4F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN80,85..4F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN80,85..4F

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14090

YN80,85..4F

L=16.4

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14090

YN80,85..4F

L=16.4

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14090

YN80,85..4F

L=16.4

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14090

YN80,85..4F

L=16.4

 1
33275B - BALL, SHAFT DETENT
90360-10003

YN80,85..4F

 1
33275B - BALL, SHAFT DETENT
90360-10003

YN80,85..4F

 1
33275B - BALL, SHAFT DETENT
90360-10003

YN80,85..4F

 1
33275B - BALL, SHAFT DETENT
90360-10003

YN80,85..4F

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
33275-10010

YN80,85..4F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14090

YN80,85..4F

 2
33521 - HOUSING, SHIFT LEVER
33521-30020

YN80,85..4F

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

LN85,RN8#,YN81,86..4F

 1
33218-35010

YN80,85..4F

 1
Common parts
91611-60850

(8808-9108)YN80,85..4F

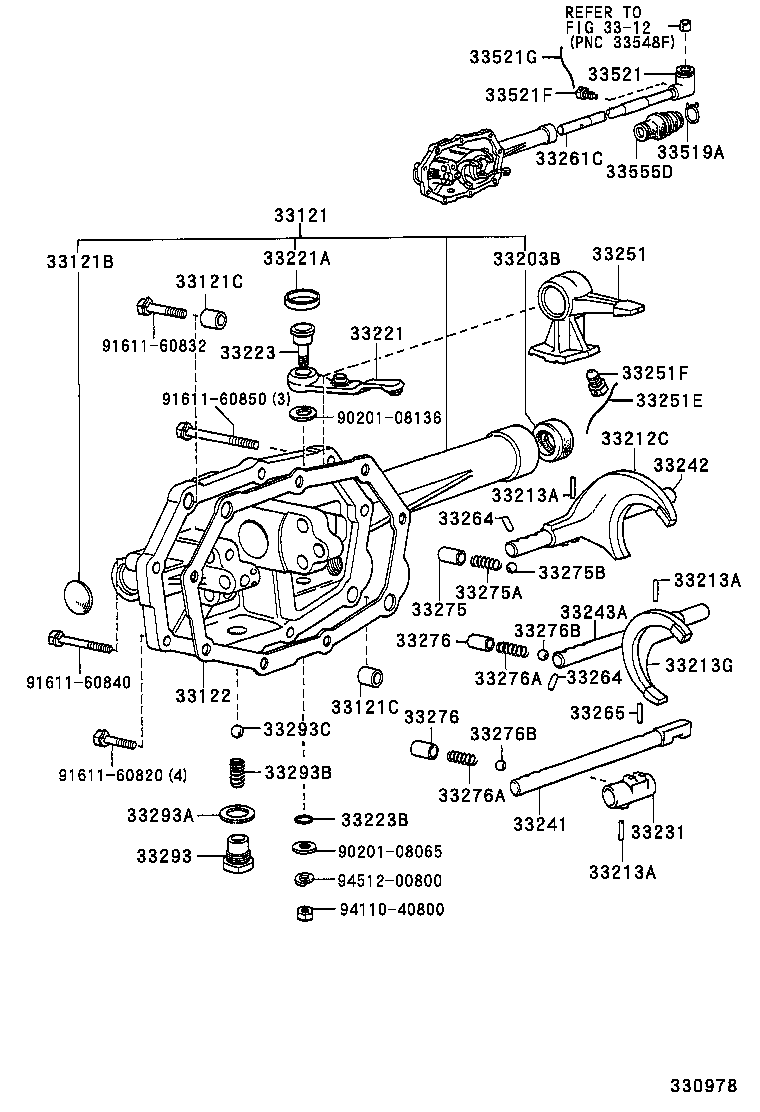

Click highlighted areas on diagram

diagram 3312 33121 33121B 33121C 33121C 33122 33203B 33212C 33213A 33213A 33213A 33213G 33221 33221A 33223 33223B 33231 33241 33242 33243A 33251 33251E 33251F 33261C 33264 33264 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33293 33293A 33293B 33293C 33519A 33521 33521F 33521G 33555D 9020108065 9020108136 9161160820 9161160832 9161160840 9161160850 9411040800 9451200800
Part # Description Qty Price
33121 - COVER, MANUAL TRANSMISSION CASE
33102-35010

YN80,85..4F

 1
33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
90330-20011

YN80,85..4F

 1
33121C - PIN(FOR TRANSMISSION CASE COVER)
90253-11001

YN80,85..4F

L=11,OD=11

 2
33121C - PIN(FOR TRANSMISSION CASE COVER)
90253-11001

YN80,85..4F

L=11,OD=11

 2
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-30020

YN80,85..4F

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-18002

YN80,85..4F

 1
33212C - FORK, GEAR SHIFT, NO.1
33212-28010

YN80,85..4F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN85,RN8#,YN81,86..4F

 2
90254-05001

YN80,85;LN8#,90,RN125,8#,90,YN81,86,87,92..5F

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN85,RN8#,YN81,86..4F

 2
90254-05001

YN80,85;LN8#,90,RN125,8#,90,YN81,86,87,92..5F

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN85,RN8#,YN81,86..4F

 2
90254-05001

YN80,85;LN8#,90,RN125,8#,90,YN81,86,87,92..5F

 3
33213G - FORK, GEAR SHIFT, NO.2
33213-26020

YN80,85..4F

 1
33221 - ARM, REVERSE SHIFT
33221-30010

YN80,85..4F

 1
33221A - PLUG, TIGHT(FOR REVERSE SHIFT ARM)
96411-42500

YN80,85..4F

 1
33223 - PIVOT, SHIFT ARM
33223-30011

YN80,85..4F

 1
33223B - RING, O(FOR SHIFT ARM PIVOT)
90301-08001

YN80,85..4F

 1
33231 - HEAD, REVERSE SHIFT
33231-35050

LN85,RN8#,YN81,86..4F

 1
33231-26010

YN80,85..4F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-35031

LN85,RN8#,YN81,86..4F

 1
33241-26010

YN80,85..4F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-26010

YN80,85..4F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-35060

YN80,85..4F

 1
33251 - LEVER, SHIFT & SELECT
33251-30040

YN80,85..4F

 1
33251E - WIRE (FOR SHIFT & SELECT LEVER)
90580-14051

YN80,85..4F

 1
33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER)
33218-35010

YN80,85..4F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-20010

YN80,85..4F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

YN80,85..4F

OD=6,L=16

 2
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

YN80,85..4F

OD=6,L=16

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

LN85,RN8#,YN81,86..4F

L=11.1,OD=4.8

 1
33265-30010

YN80,85..4F

L=28.8,OD=6.0

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN80,85..4F

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14090

YN80,85..4F

L=16.4

 1
33275B - BALL, SHAFT DETENT
90360-10003

YN80,85..4F

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
33275-10010

YN80,85..4F

 2
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
33275-10010

YN80,85..4F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14090

YN80,85..4F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14090

YN80,85..4F

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

YN80,85..4F

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

YN80,85..4F

 2
33293 - HOLDER, REVERSE RESTRICT BALL
33293-30010

YN80,85..4F

 1
33293A - GASKET (FOR REVERSE RESTRICT BALL HOLDER)
90430-18008

YN80,85..4F

 1
33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
90501-16041

YN80,85..4F

 1
33293C - BALL (FOR REVERSE RESTRICT)
90360-10003

YN80,85..4F

 1
33519A - CLIP (FOR CONTROL SHAFT DUST BOOT SET)
90467-17126

YN80,85..4F

 1
33521 - HOUSING, SHIFT LEVER
33521-30020

YN80,85..4F

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

LN85,RN8#,YN81,86..4F

 1
33218-35010

YN80,85..4F

 1
33521G - WIRE (FOR SHIFT LEVER HOUSING)
90580-14049

YN80,85..4F

 1
33555D - BOOT, SHIFT LEVER
33555-20010

YN80,85..4F

 1
Common parts
90201-08065
90201-08136
91611-60820
91611-60832
91611-60840
91611-60850
94110-40800
94512-00800
Linked diagrams
3312
