LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9408)YN80,85..4F

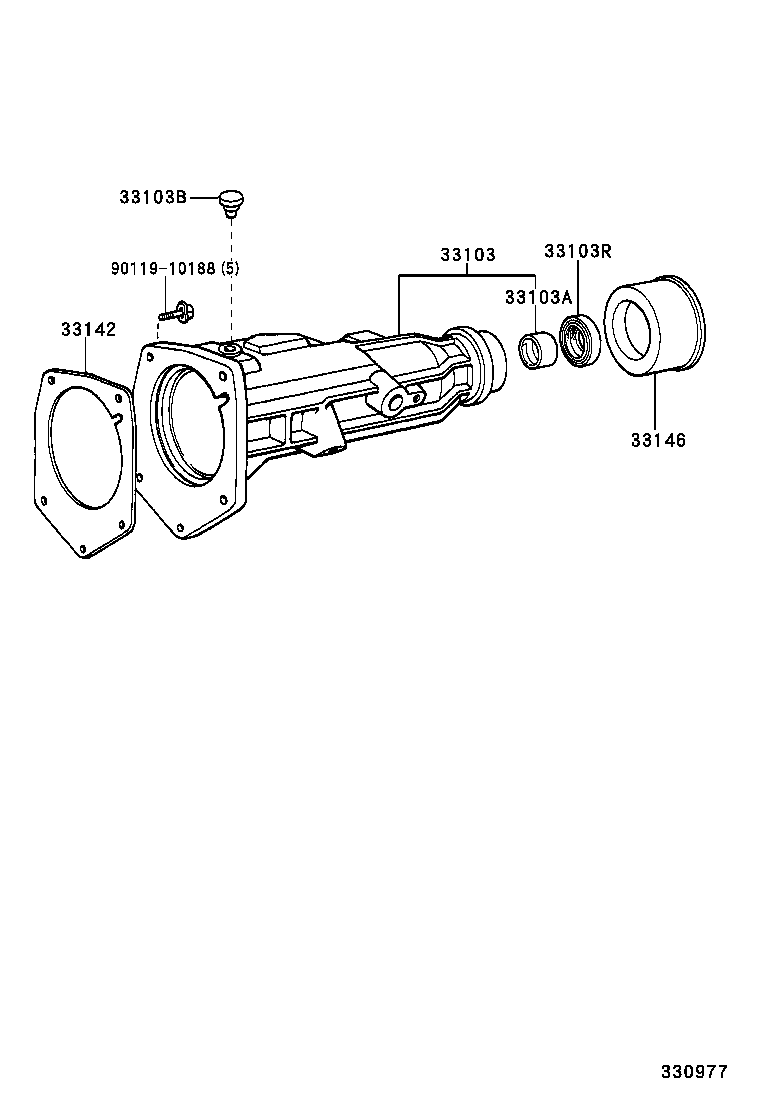

Click highlighted areas on diagram

diagram 33103 33103A 33103B 33103R 33142 33146 9011910188
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35060

YN80,85..4F

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

YN80,85..4F

 1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03001

YN80,85..4F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

YN80,85..4F

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-26010

YN80,85..4F

 1
Common parts
90119-10188
