LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)2L,3L

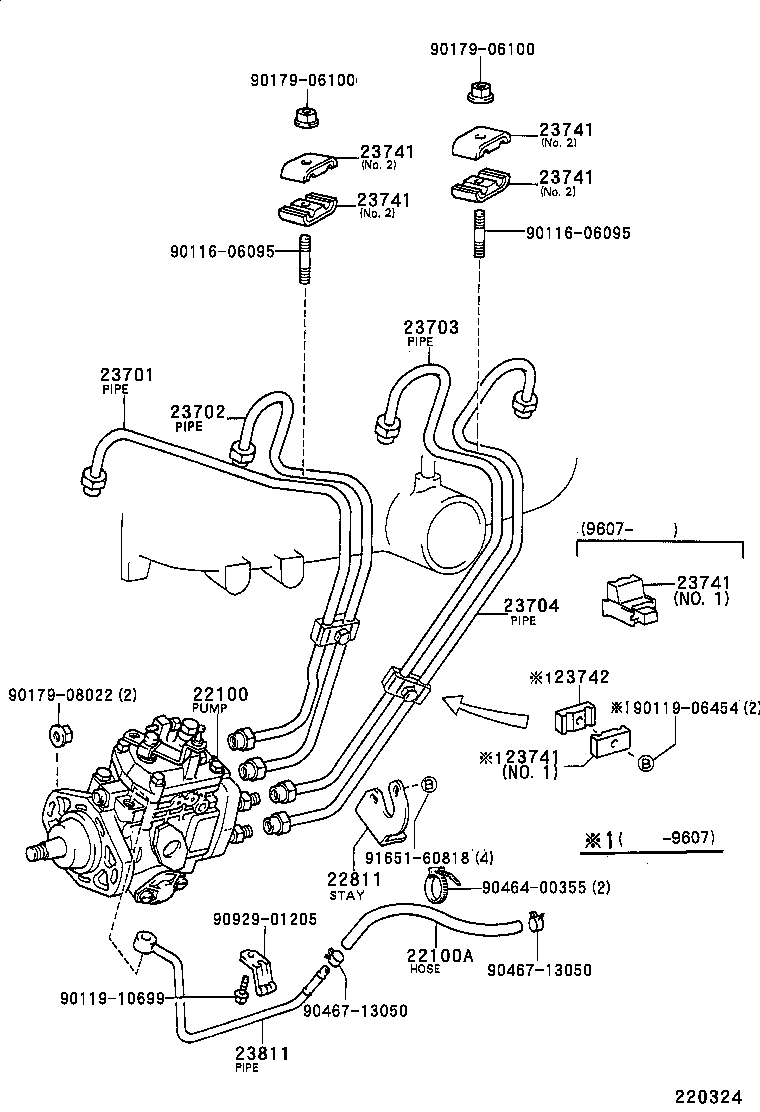

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 23741 23741 23742 23811 9011606095 9011606095 9011906454 9011910699 9017906100 9017906100 9017908022 9046400355 9046713050 9046713050 9092901205 9165160818
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54820

2L..LN85..4FC..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22100-54790

2L..LN85..4FC

 1
22100-54820

2L..LN85..4FC..GEN

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14062

2L..LN8#,90

L=530

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54041

2L,3L..LN8#,90

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54110

2L..LN8#,90

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54110

2L..LN8#,90

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54091

2L..LN8#,90

 1
23703-54090

2L..LN8#,90

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54090

2L..LN8#,90

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,3L..LN8#,90

NO.1

 2
23741-56010

2L,3L..LN8#,9#

NO.2

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L,3L..LN8#,90

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54150

2L,3L..LN8#,90

 1
Common parts
90116-06095
90119-06454
90119-10699
90179-06100
90179-08022
90464-00355
90467-13050
90929-01205
91651-60818
