LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)2L,3L

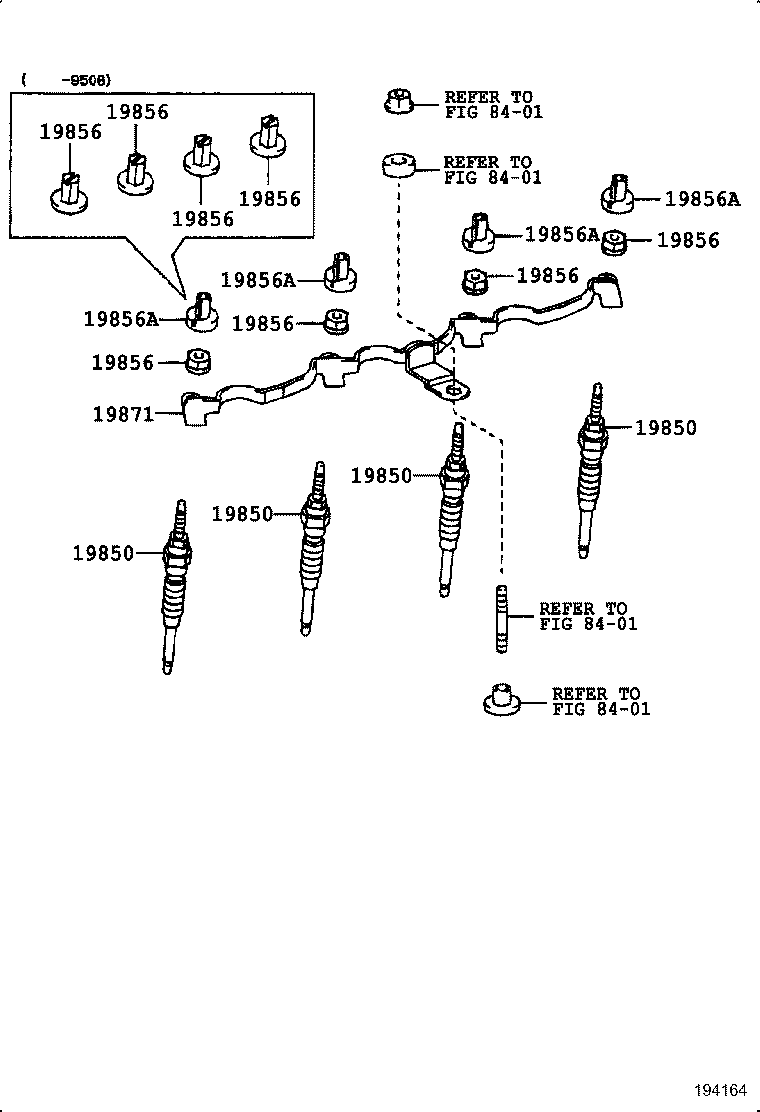

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 8401 8401 8401 8401
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54090

2L,3L..LN8#,90

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,3L..LN8#,90

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,3L..LN8#,90

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54090

2L,3L..LN8#,90

*BV-GV=12V-11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04019

2L,3L..LN8#,90

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

3L..LN86..ARL,V;2L,3L..LN80,81,85,9#

 1
Linked diagrams
8401
