LN85L-PRPRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)2L,3L

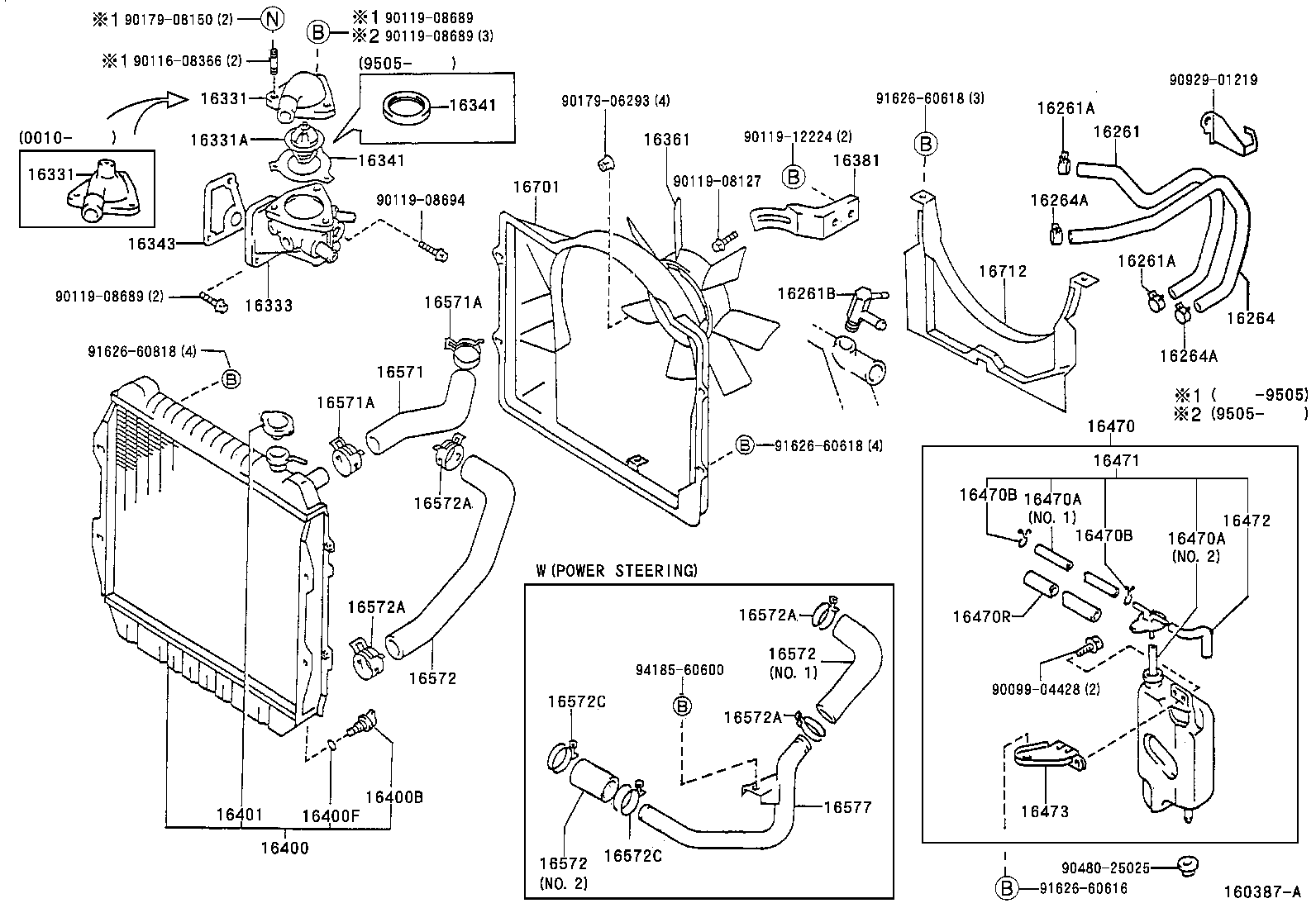

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16331 16331 16331A 16333 16341 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470R 16471 16472 16473 16571 16571A 16571A 16572 16572 16572 16572A 16572A 16572A 16572A 16572C 16572C 16577 16701 16712 9009904428 9011608366 9011908127 9011908689 9011908689 9011908689 9011908694 9011912224 9017906293 9017908150 9048025025 9092901219 9162660616 9162660618 9162660618 9162660818 9418560600
Part # Description Qty Price
16331 - OUTLET, WATER
16331-54090

2L,3L..LN80,85,86,90..ARL,GEN,TH

 1
16331 - OUTLET, WATER
16331-54090

2L,3L..LN80,85,86,90..ARL,GEN,TH

 1
16331A - THERMOSTAT
90916-03099

2L,3L..LN8#,90

*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16303-54040

2L..LN8#,90

 1
16333-54121

2L,3L..LN8#,90..ARL,GEN,V

 1
16341 - GASKET, WATER OUTLET
16341-54030

2L,3L..LN8#,90

 1
16341 - GASKET, WATER OUTLET
16341-54030

2L,3L..LN8#,90

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54030

2L,3L..LN8#,90

 1
16361 - FAN
16361-54040

2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54060

2L,3L..LN8#,9#

T=3.2

 1
16400 - RADIATOR ASSY
16400-54880

2L..LN85..TW1..4FC

W(POWER STEERING)

 1
16400-54620

2L..LN85..4FC..CBU

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

2L..LN8#,90

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2L,3L..LN8#,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2L,3L..LN8#,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54120

2L,3L..LN8#;2L..LN90..5F

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2L,3L..LN8#,90

*H,L=260,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2L,3L..LN8#,90

*H,L=260,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2L,3L..LN8#;2L..LN90..5F

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2L,3L..LN8#;2L..LN90..5F

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54180

2L,3L..LN8#,9#

 1
16472 - HOSE, BREATHER
85338-71030

2L,3L..LN8#;2L..LN90..5F

 1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-54240

2L,3L..LN8#,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-54270

2L,3L..LN8#,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-54250

2L..LN8#,90

 1
16572 - HOSE, RADIATOR, OUTLET
16572-54250

2L..LN8#,90

 1
16572 - HOSE, RADIATOR, OUTLET
16572-54250

2L..LN8#,90

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54270

3L..LN86..V;2L..LN85..GEN,TH;2L,3L..LN80,81,9#..5F;2L..LN85..4FC..ARL..CBU

 1
16712 - SHROUD, FAN, NO.2
16712-54190

2L..LN85..4FC..ARL..CBU;2L,3L..LN8#,90..GEN,TH,V

 1
Common parts
90099-04428
90116-08366
90119-08127
90119-08689
90119-08694
90119-12224
90179-06293
90179-08150
90480-25025
90929-01219
91626-60616
91626-60618
91626-60818
94185-60600
