LN200L-PRMVS (2001)
Toyota Hilux 2wd

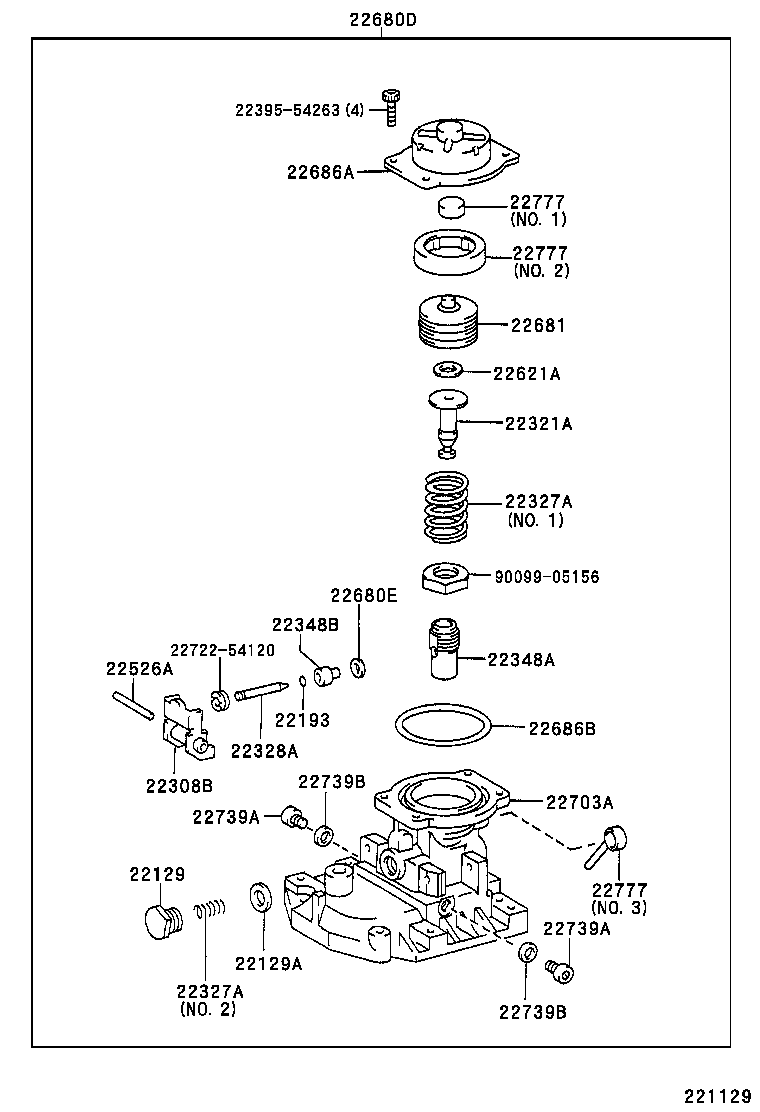

ILLUST NO. 2 OF 2(0106- )5L
W(HIGH ALTITUDE COMPENSATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
5L..LN200 |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 22149-54800 |
5L..LN200 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
5L..LN200 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-17570 |
5L..LN200 |
1 | ||
| 22321A - ROD, PUSH | ||||
| 22301-5B760 |
5L..LN200 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
5L..LN200 NO.1 |
1 | ||
| 22327-64400 |
5L..LN200 NO.2 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
5L..LN200 NO.1 |
1 | ||
| 22327-64400 |
5L..LN200 NO.2 |
1 | ||
| 22328A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
5L..LN200 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
5L..LN200 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
5L..LN200 |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
5L..LN200 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54803 |
5L..LN200 T=0.7 |
1 | ||
| 22624-54804 |
5L..LN200 T=0.8 |
1 | ||
| 22621-54010 |
5L..LN200 T=0.5 |
1 | ||
| 22624-54806 |
5L..LN200 T=0.3 |
1 | ||
| 22622-54010 |
5L..LN200 T=1.0 |
1 | ||
| 22624-54800 |
5L..LN200 T=0.6 |
1 | ||
| 22624-54805 |
5L..LN200 T=0.9 |
1 | ||
| 22624-54010 |
5L..LN200 T=0.2 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-5D250 |
5L..LN200 |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
5L..LN200 |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-6A570 |
5L..LN200 |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
5L..LN200 |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
5L..LN200 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17080 |
5L..LN200 W/O(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22703-54351 |
5L..LN200 W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
5L..LN200 |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
5L..LN200 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22149-6D450 |
5L..LN200 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22149-6D450 |
5L..LN200 |
2 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
5L..LN200 NO.1 |
1 | ||
| 22777-64410 |
5L..LN200 NO.2 |
1 | ||
| 22777-54351 |
5L..LN200 NO.3 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
5L..LN200 NO.1 |
1 | ||
| 22777-64410 |
5L..LN200 NO.2 |
1 | ||
| 22777-54351 |
5L..LN200 NO.3 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
5L..LN200 NO.1 |
1 | ||
| 22777-64410 |
5L..LN200 NO.2 |
1 | ||
| 22777-54351 |
5L..LN200 NO.3 |
1 | ||
| Common parts | ||||
| 22395-54263 | ||||
| 22722-54120 | ||||
| 90099-05156 | ||||
