Toyota Hilux TGN36 FRONT DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
US
HILUX
TGN36R-TRMSKN (2008)
4705 - FRONT DISC BRAKE CALIPER & DUST COVER

TGN36R-TRMSKN (2008)

Toyota Hilux

Production Oct 2008 - Aug 2011

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0810-0812)GGN25,KUN25,3#,TGN26,36..DCB,SCB,SMT,XTR..ANCOM,ARL,GCC,GEN,MA,PHL,TH ;

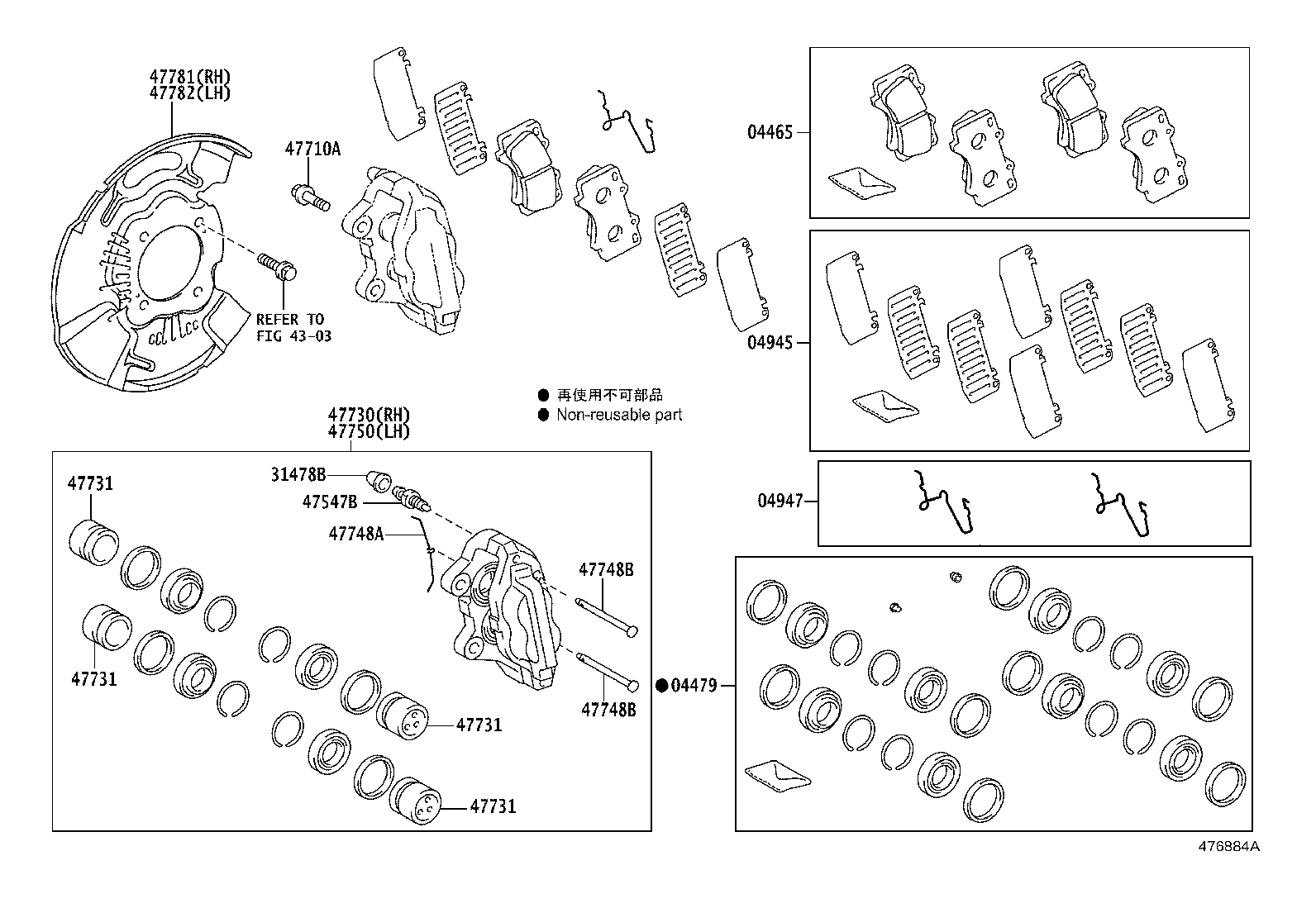

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
Linked diagrams
4303

(0812- )KUN26..5F..ARL,IDN,PHL,TH ; (0812-)GGN25,KUN25,3#,TGN26..DCB,SCB,SMT

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
Linked diagrams
4303

(0810- )KUN26,36,TGN36..SCB..SA ; (0810- )KUN25,35,LAN25,35,TGN26..DLX..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K240	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA MARK ADVICS PS558H	10/2008 - 08/2011	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K210	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K070	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA) *12-1.25PX35-27	08/2004 - 12/2008	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-49009	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90069-0K071	TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;TGN36..DCB..5F..DLX;TGN26..DLX..(LA,SA);KUN26,36,TGN36..SCB..(ANCOM,LA,SA);KUN25,35,LAN25,35..DLX..(ANCOM,LA,SA)	10/2008 - 12/2999	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K180	KUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA	10/2008 - 08/2011	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-0K030	GGN25,KUN2#,3#,LAN25,35,TGN26,36	08/2004 - 05/2006	1
Linked diagrams
4303

(1107-1201)TGN26..SCB,THDCB ; (1107-1201)TGN26..DCB..5F..GCC ; (1107-1201)KUN25,35,

Click highlighted areas on diagram

TYPE D

Part #	Description	Period	Qty	Price
Linked diagrams
4303

(1107- )GGN25,35 ; (1107- )KUN26..CO,LA ;(1107- )KUN26..5FC..IV3 ; (1107-

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty	Price
Linked diagrams
4303

(1107- )TGN26..SR..CO,GEN,LA ; (1107- )KUN26..LHD..SADCB,THDCB ; (1107- )K

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty	Price
Linked diagrams
4303

TGN36R-TRMSKN (2008)

(0810-0812)GGN25,KUN25,3#,TGN26,36..DCB,SCB,SMT,XTR..ANCOM,ARL,GCC,GEN,MA,PHL,TH ;

(0812- )KUN26..5F..ARL,IDN,PHL,TH ; (0812-)GGN25,KUN25,3#,TGN26..DCB,SCB,SMT

(0810- )KUN26,36,TGN36..SCB..SA ; (0810- )KUN25,35,LAN25,35,TGN26..DLX..SA

(1107-1201)TGN26..SCB,THDCB ; (1107-1201)TGN26..DCB..5F..GCC ; (1107-1201)KUN25,35,

(1107- )GGN25,35 ; (1107- )KUN26..CO,LA ;(1107- )KUN26..5FC..IV3 ; (1107-

(1107- )TGN26..SR..CO,GEN,LA ; (1107- )KUN26..LHD..SADCB,THDCB ; (1107- )K
