TGN36L-TRMDKG (2008)

Toyota Hilux

Production Oct 2008 - Oct 2011
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28380A 83390 83390 90119T0037
Part # Description Qty Price
Common parts
90119-T0037

ILLUST NO. 8 OF 8(0408- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 82223F 83320 83320 84222D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84820 84820 9010906296 9010906296 9010906296 9010906296 90164T0005 90164T0005 9043018008
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-71010

KUN2#,3#..LA..CBU

BRAZIL SPEC

 1
83320 - GAGE ASSY, FUEL SENDER
83320-71010

KUN2#,3#..LA..CBU

BRAZIL SPEC

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0K020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0K020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
Common parts
90109-06296
90164-T0005
90430-18008

ILLUST NO. 6 OF 8(0408- )

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84140 84140 84247A 84250A 84306 84306 84306 84306 84306 84306 84312 84450 84650 84650 85432 9015950199 9015950199 90159T0007 90168T0004
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

KUN15,16..SR;KUN25..THDCB,THSCB;KUN15,25..ANCOM,GCC,LA;KUN15,25..RHD..SCB..SA;KUN16,TGN15..ARL,GCC,SA;TGN26..(SCB,THDCB)..(GEN,SA);TGN16,26..ANCOM,ARL,GCC,LA,TH;KUN25..RHD..(DCB,XTR)..(MA,SA,TH);GGN15,25,KUN10,26,3#,TGN10,11,36..ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0K151

TGN36..DLX..LA

FRONT FOG LAMP-WITH

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0K151

TGN36..DLX..LA

FRONT FOG LAMP-WITH

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K021

KUN26..IDN;KUN16,26..SMT;KUN15..SCB..TH;KUN26,TGN36..DLX..(GEN,LA);KUN25,3#,TGN26..DCB..DLX..LA;TGN26..(DCB,SCB)..(GCC,GEN,SA);KUN15,36,TGN16..5F..SR..(GCC,TH);KUN10,15,25,35,LAN15,25,35,TGN1#..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE C:REFER ILLUST.

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501

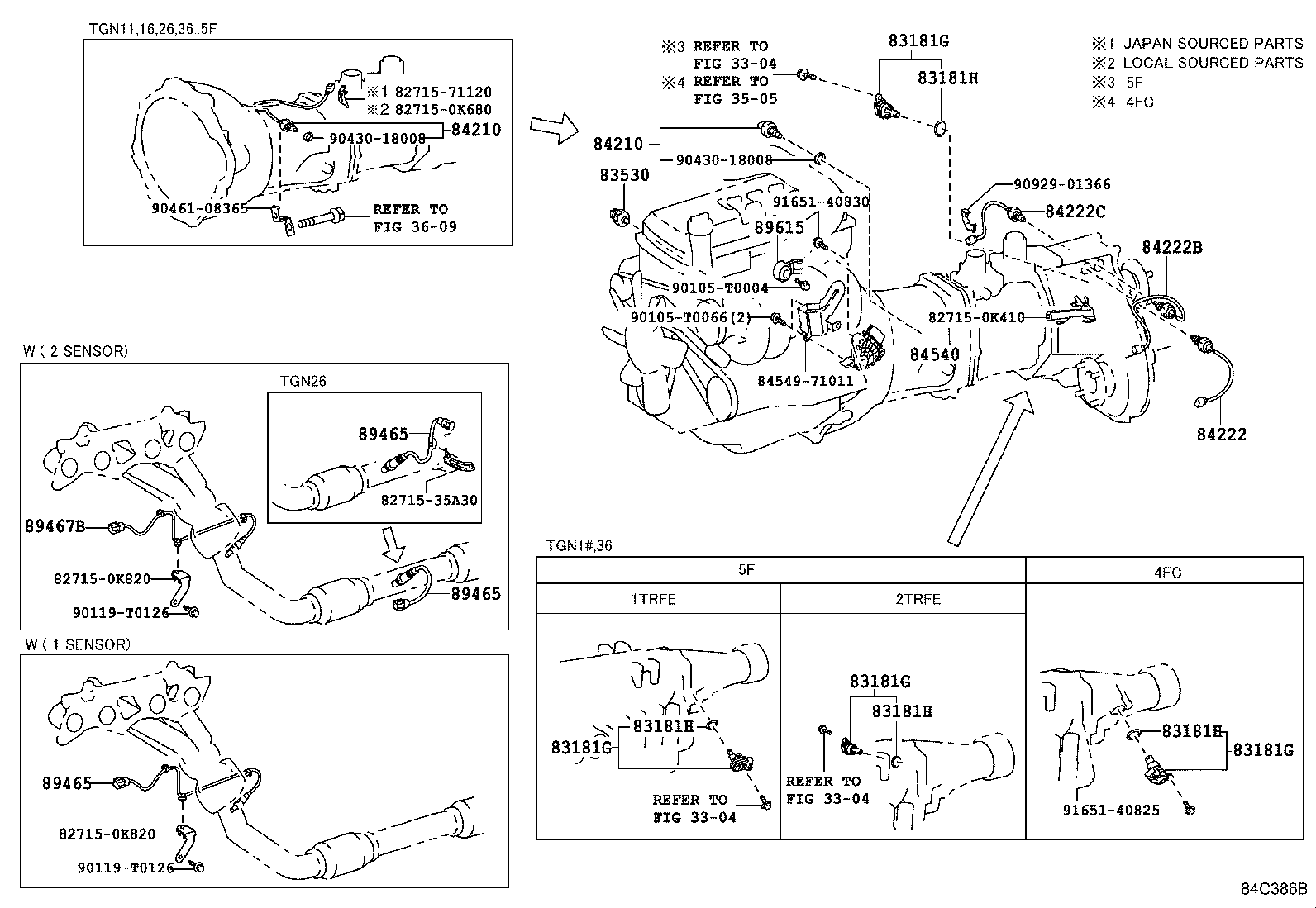

ILLUST NO. 1 OF 8(0408- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827112B660 827150K410 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84222 84222B 84222C 84540 89491 9043018008 9155180612 9165140825 9165140830
Part # Description Qty Price
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28010

KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN10,15,36..(DCB,SCB,XTR)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
Common parts
82711-2B660
82715-0K410
90430-18008
91551-80612
91651-40825
91651-40830

ILLUST NO. 3 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82600F 82616 82620A 82630 82641 82661 82662A 82663 827150K800 82741 82742 8404 8404 9011906923 9011906923
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09022

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

15A,MINI FUSE,BLUE

 1
90982-09021

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

10A,MINI FUSE,RED

 1
90982-09013

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

30A,MINI FUSE,GRN

 1
90982-09023

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

20A,MINI FUSE,YELLOW

 1
90982-09024

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

25A,MINI FUSE

 1
90982-09020

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

7.5A,MINI FUSE,BROWN

 1
82616 - PULLER, FUSE
82616-58010

TGN16,26,36..LHD;KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82616-58010

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82616-58010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82616-58010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82616-58010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-71010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
82620-71010

KUN15..PHL..IV3;TGN16,26,36..LHD;KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82620-71010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82620-71010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82620-71010

TGN16..GCC,SA;KUN15..LHD..SA;TGN26..THDCB..DLX;KUN25..LHD..SCB..SA;KUN25,35..LHD..DCB..(LA,SA);KUN26,36,LAN15,25,TGN10,11,15,26,36..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82630 - HOLDER ASSY, FUSE
82631-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
82631-0K010

TGN16,26,36..LHD;KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82631-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82631-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82631-0K010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82631-0K010

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82641 - RELAY, INTEGRATION NO.1
82641-71010

TGN1#,26,36..LHD

 1
82641-71020

KUN15..PHL..IV3;KUN10,15,2#,3#,LAN15,25..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82641-71020

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82641-71020

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82641-71010

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82641-71020

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN36..DCB..(ANCOM,PHL,SA);TGN26,36..DCB..5F..DLX..(LA,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN15,26..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN10,11,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

EXCEPT SOUTH AFRICA

 1
82661-0K020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

SOUTH AFRICA

 1
82661-0K010

KUN15..LHD..(GCC,GEN);KUN15,25..LHD..SCB..SA;KUN10,26,36,LAN15,25..LHD..DLX;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0K041

TGN26..ANCOM..CBU;TGN26..GCC,GEN,LA,SA;GGN15,25,35,TGN1#,36

MARK 82662-0K041

 1
82662-0K120

KUN16..4FC;KUN16..DCB..ARL;KUN26,36..XTR..SA;KUN16..SCB,SMT,XTR;KUN25..ANCOM,GCC,GEN,LA,MA,PKN,TH;KUN10,15,26,3#..ANCOM,ARL,GCC,GEN,LA,PHL,TH

 1
82662-0K011

TGN16..XTR;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN16..ARL,GCC,TH;GGN15..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA);TGN10,11,15,26,36..ANCOM,GCC,GEN,IDN,LA

 1
82662-0K150

KUN1#,2#,3#,LAN15,25,35..DLX,SR

MARK 82662-0K150

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
82663-0K010

TGN16,26,36..LHD;KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82663-0K010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82663-0K010

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82663-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82663-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0K010

TGN16,26,36..LHD;KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82741-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82741-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
82741-0K010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82741-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82741-0K010

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82660-0C040

TGN1#,26,36..LHD

 1
82744-0K010

KUN15..PHL..IV3;KUN10,15,2#,3#,LAN15,25..LHD..DLX..(ANCOM,GCC,GEN,LA,SA)

 1
82744-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82744-0K010

KUN25..LHD..DCB..(GCC,LA,SA);KUN25..LHD..(SCB,THDCB)..(GEN,SA);KUN26,35..(DCB,THDCB)..DLX..(GEN,LA);KUN10,15,36,LAN15,25..LHD..DLX..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82660-0C040

TGN26..THDCB..DLX;TGN1#,26,36..LHD..(GCC,LA,SA)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
82744-0K010

KUN25..LHD..SCB..SA;KUN25,35..LHD..(DCB,THDCB)..(GCC,GEN,LA,SA);KUN10,15,26,36,LAN15,25..LHD..DLX..(GCC,GEN,LA,SA)

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
Common parts
82715-0K800
90119-06923
Linked diagrams
8404

ILLUST NO. 8 OF 8(1107- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 82223F 83320 83320 84222D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84820 84820 9010906296 9010906296 9010906296 9010906296 90164T0005 90164T0005 9043018008
Part # Description Qty Price
Common parts
90109-06296
90164-T0005
90430-18008

ILLUST NO. 7 OF 8(1107- )

Click highlighted areas on diagram

SEAT

diagram 84921A 84921A 84921B 84921B 84922B 84922C 9016740044 9016740044
Part # Description Qty Price
Common parts
90167-40044

ILLUST NO. 6 OF 8(1107- )

Click highlighted areas on diagram

STEERING

diagram 4501 4504 84052 84140 84140 84247A 84250A 84306 84306 84306 84306 84306 84306 84306 84312 84450 84650 84650 85432 9015950199 90159T0007 90168T0004
Part # Description Qty Price
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501
4504

ILLUST NO. 5 OF 8(1107- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8302 8302 84118 84119 84152 84330 84330B 84660C 84725A 84725B 84790 84790B 84790B 84870A 84870D 84988L 85500 85500B 85510 85513 85515 85520 85530 85533 85535B 85539 8601 8715 87290 87290B 87290B 90170T0001
Part # Description Qty Price
Common parts
90170-T0001
Linked diagrams
8302
8601
8715

ILLUST NO. 4 OF 8(1107- )LHD

Click highlighted areas on diagram

COWL

diagram 28371 81980 82210J 82210N 82210N 82600D 82600D 82600F 82642A 82660B 827111E320 82730A 82810 84340 84345 84550 85912 85913C 85916L 85916N 85930G 85934 87346K 87346K 88280A 89530C 89533 89533A 90105T0066 90105T0066 90105T0066 90105T0066 90119T0420 90159T0003 90178T0018 90178T0018 90178T0018 9167180618
Part # Description Qty Price
Common parts
82711-1E320
90105-T0066
90119-T0420
90159-T0003
90178-T0018
91671-80618

ILLUST NO. 2 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28380A 28551 28551 28559 28559 28559A 28559A 83320B 83390 83390 9011906915 9011906915 9011906915 90119T0037 90178T0018
Part # Description Qty Price
Common parts
90119-06915
90119-T0037
90178-T0018

ILLUST NO. 1 OF 8(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION 1/2

diagram 3304 3304 3304 3505 827150K410 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84222 84222B 84222C 84540 89491 89491A 9043018008 9092901366 9165140825 9165140830 9165160614
Part # Description Qty Price
Common parts
82715-0K410
90430-18008
90929-01366
91651-40825
91651-40830
91651-60614
Linked diagrams
3304
3505

ILLUST NO. 1 OF 8(1107- )TGN1#,26,36

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 3304 3304 3304 3505 3609 827150K410 827150K680 827150K820 827150K820 8271535A30 8271571120 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84210 84222 84222B 84222C 84540 8454971011 89465 89465 89465 89467B 89615 90105T0004 90105T0066 90119T0126 90119T0126 9043018008 9043018008 9046108365 9092901366 9165140825 9165140830
Part # Description Qty Price
Common parts
82715-0K410
82715-0K680
82715-0K820
82715-35A30
82715-71120
84549-71011
90105-T0004
90105-T0066
90119-T0126
90430-18008
90461-08365
90929-01366
91651-40825
91651-40830
Linked diagrams
3304
3505
3609

ILLUST NO. 1 OF 8(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION 2/2

diagram 827150KC00 8271571190 89425 89425A 89425B 89439 89439 89467B 89481B 89481B 90105T0209 90119T0126 90178T0018 9167180814 9415180600
Part # Description Qty Price
Common parts
82715-0KC00
82715-71190
90105-T0209
90119-T0126
90178-T0018
91671-80814
94151-80600

ILLUST NO. 3 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82600E 82616 82620A 82630 82641 82661 82662A 82663 827150K800 82741 82742 82742A 8404 8404 8405 85916P 85926 9011906923 9011906923 90119T0185 90119T0185
Part # Description Qty Price
Common parts
82715-0K800
90119-06923
90119-T0185
Linked diagrams
8404
8405
