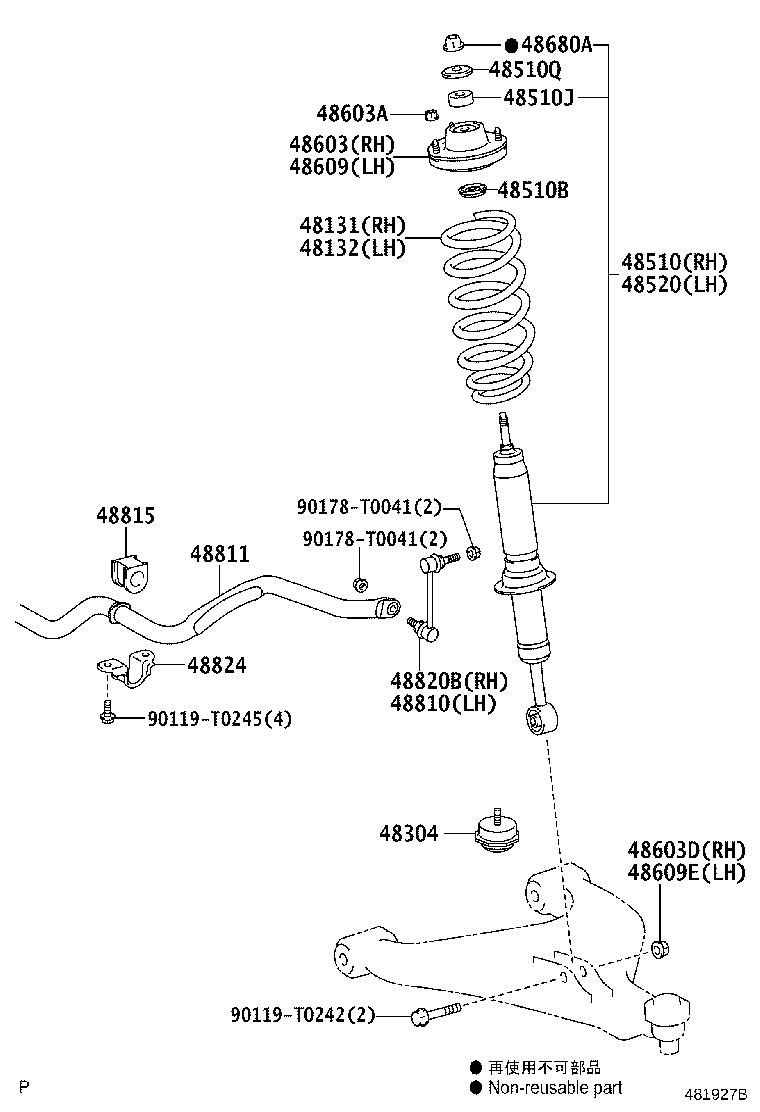

TGN36L-TRMDKG (2008)
Toyota Hilux
(0408- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0K860 |
TGN36..LA |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0K860 |
TGN36..LA |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-0K050 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-09K90 |
TGN26,36..LA;KUN35..DCB..LA MARK 48510-0K130 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2003 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-T1001 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2004 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-09K90 |
TGN26,36..LA;KUN35..DCB..LA MARK 48510-0K130 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0K050 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-T0050 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-T0048 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0K050 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-T0048 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01241 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-0K020 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0K070 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-0K040 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-0K040 |
TGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-0K010 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||

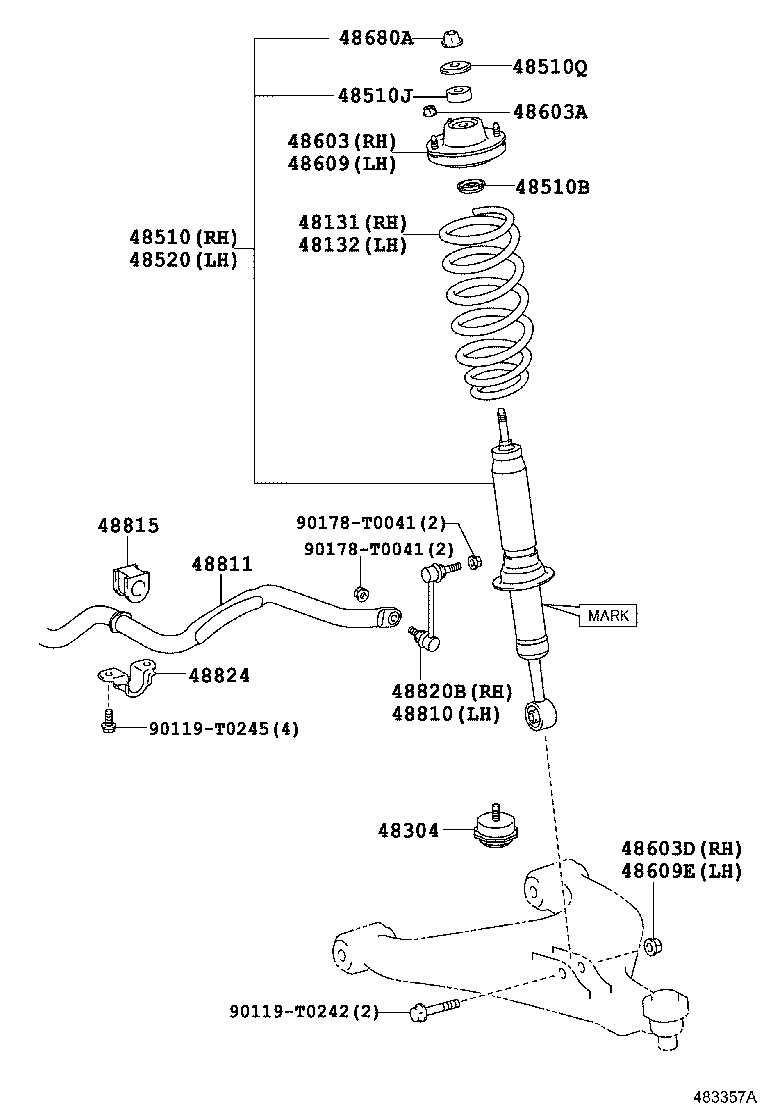

(1107- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||
