TGN36L-PRPDKL (2012)

Toyota Hilux

Production Apr 2012 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1204- )TGN26,36..ANCOM

Click highlighted areas on diagram

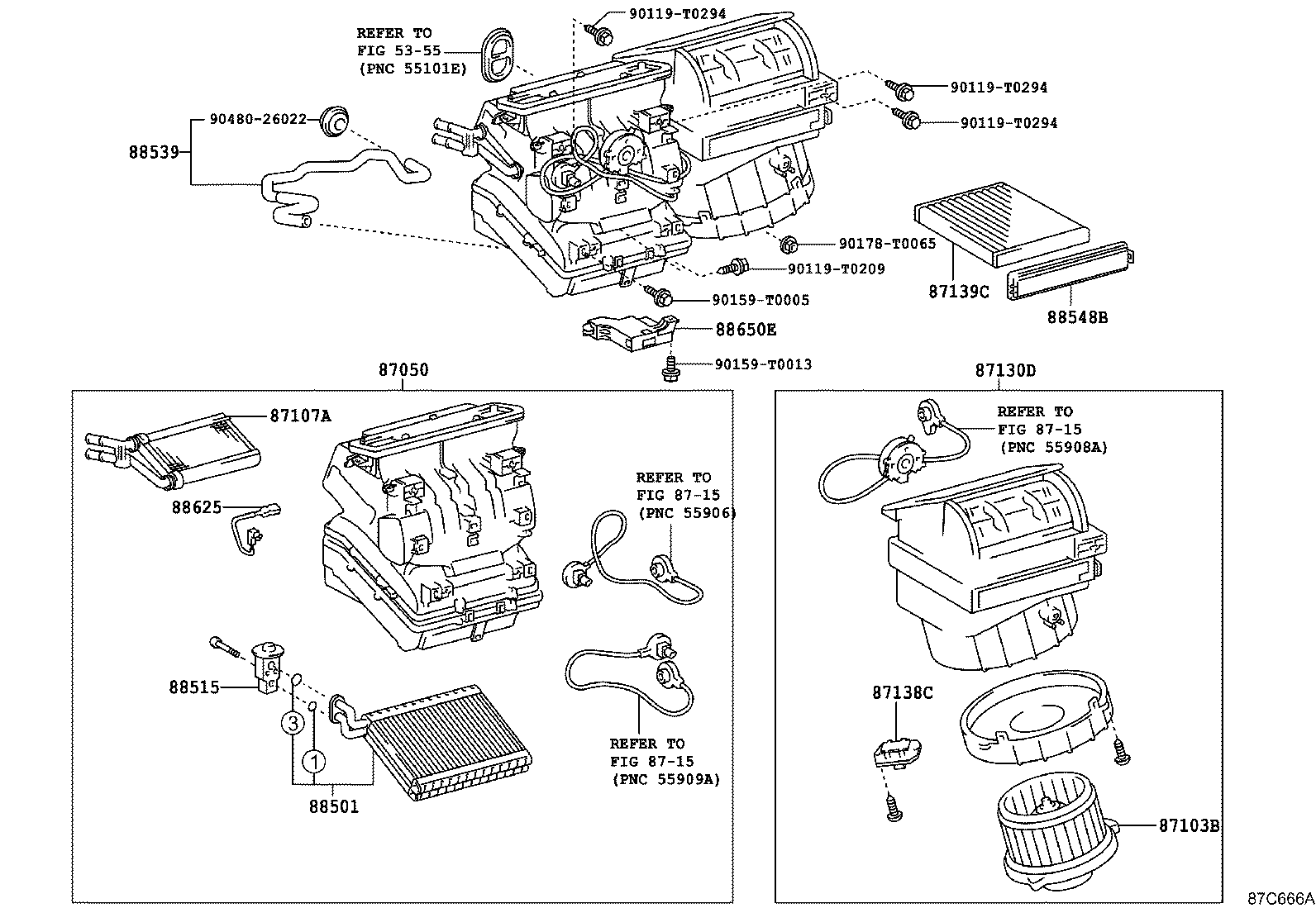

MANUAL AIR CONDITIONER

diagram 5355 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 88501 88515 88539 88548B 88625 88650E 90119T0209 90119T0294 90119T0294 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K650

TGN26..SR..ANCOM;TGN26..SCB..ANCOM;TGN36..ANCOM..CBU

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02280

GGN25,TGN26,36..ANCOM

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K060

GGN25,TGN26,36..ANCOM

 1
87130D - BLOWER ASSY
87130-0K360

TGN26,36..ANCOM

 1
87139C - FILTER, CLEAN AIR
87139-50100

KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA)

*DPF

 1
87139-52020

KUN25..GCC,GEN;KUN25..LHD..SA;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,SA

STANDARD

 1
88515 - VALVE, COOLER EXPANSION
88515-0K540

TGN26..SCB..ANCOM;TGN36..ANCOM..CBU;GGN25,TGN26..SR..ANCOM

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K200

GGN25,TGN26,36..ANCOM

 1
88548B - CASE, AIR FILTER
88548-0K020

GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA)

 1
Common parts
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715
