TGN26R-TRMDKN (2005)
Toyota Hilux
Production
Apr 2005
-
Oct 2008
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507-0810)TGN15,16,26,36..LA,SA ; (0608-0808)IDN

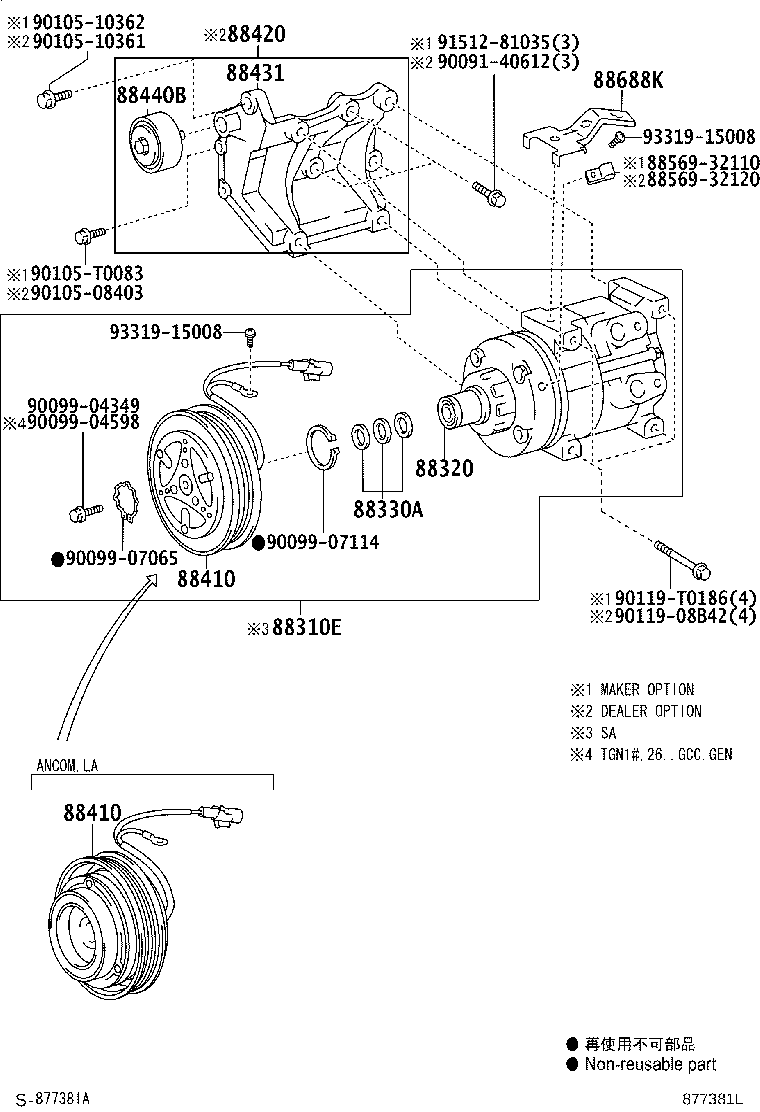

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310E - COMPRESSOR, W/MAGNET CLUTCH | ||||
| 88310-0K120 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K120 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K122 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K122 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K121 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K121 |
TGN26,36..RHD..SA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0K070 |
TGN26,36..RHD..SA |
1 | ||
| 88431-0K070 |
TGN26,36..RHD..SA |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-0K260 |
TGN26,36..RHD..SA |
1 | ||
| 88440-0K260 |
TGN26,36..RHD..SA |
1 | ||
| Common parts | ||||
| 88569-32110 | ||||
| 88569-32120 | ||||
| 90091-40612 | ||||
| 90099-04349 | ||||
| 90099-04598 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-08403 | ||||
| 90105-10361 | ||||
| 90105-10362 | ||||
| 90105-T0083 | ||||
| 90119-08B42 | ||||
| 90119-T0186 | ||||
| 91512-81035 | ||||
| 93319-15008 | ||||
(0504-0810)KUN15,2#,3#..SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310E - COMPRESSOR, W/MAGNET CLUTCH | ||||
| 88310-0K120 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K122 |
TGN26,36..RHD..SA |
1 | ||
| 88310-0K121 |
TGN26,36..RHD..SA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0K070 |
TGN26,36..RHD..SA |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-0K260 |
TGN26,36..RHD..SA |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-T0040 | ||||
| 90105-T0066 | ||||
| 90119-T0186 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1601 | ||||
