Toyota Hilux TGN26 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
US
HILUX
TGN26R-TRMDKN (2005)
4804 - REAR SPRING & SHOCK ABSORBER

TGN26R-TRMDKN (2005)

Toyota Hilux

Production Apr 2005 - Oct 2008

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0504- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..DCB,SCB..SA

Click highlighted areas on diagram

5-LEAF

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA 5-LEAF	04/2005 - 10/2008	1
48211 - LEAF, REAR SPRING, NO.1
48211-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA	04/2005 - 10/2008	2
48212 - LEAF, REAR SPRING, NO.2
48212-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA	04/2005 - 10/2008	2
48213 - LEAF, REAR SPRING, NO.3
48213-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA	04/2005 - 10/2008	2
48214 - LEAF, REAR SPRING, NO.4
48214-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA	04/2005 - 10/2008	2
48215 - LEAF, REAR SPRING, NO.5
48215-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA	04/2005 - 10/2008	2
48220 - SPRING ASSY, REAR LH
48210-0K240	KUN25,3#,LAN25,TGN26,36..SCB..SA 5-LEAF	04/2005 - 10/2008	1
48247 - BOLT, REAR SPRING, CENTER
48247-0K040	KUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA	04/2005 - 10/2008	2
48252 - SILENCER, REAR SPRING
48252-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	8
48252 - SILENCER, REAR SPRING
48252-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	8
48252 - SILENCER, REAR SPRING
48252-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	8
48252 - SILENCER, REAR SPRING
48252-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	8
48253 - SPACER, REAR SPRING, NO.1
48253-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K040	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA	04/2005 - 10/2008	2

ILLUST NO. 1 OF 2(0504- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty

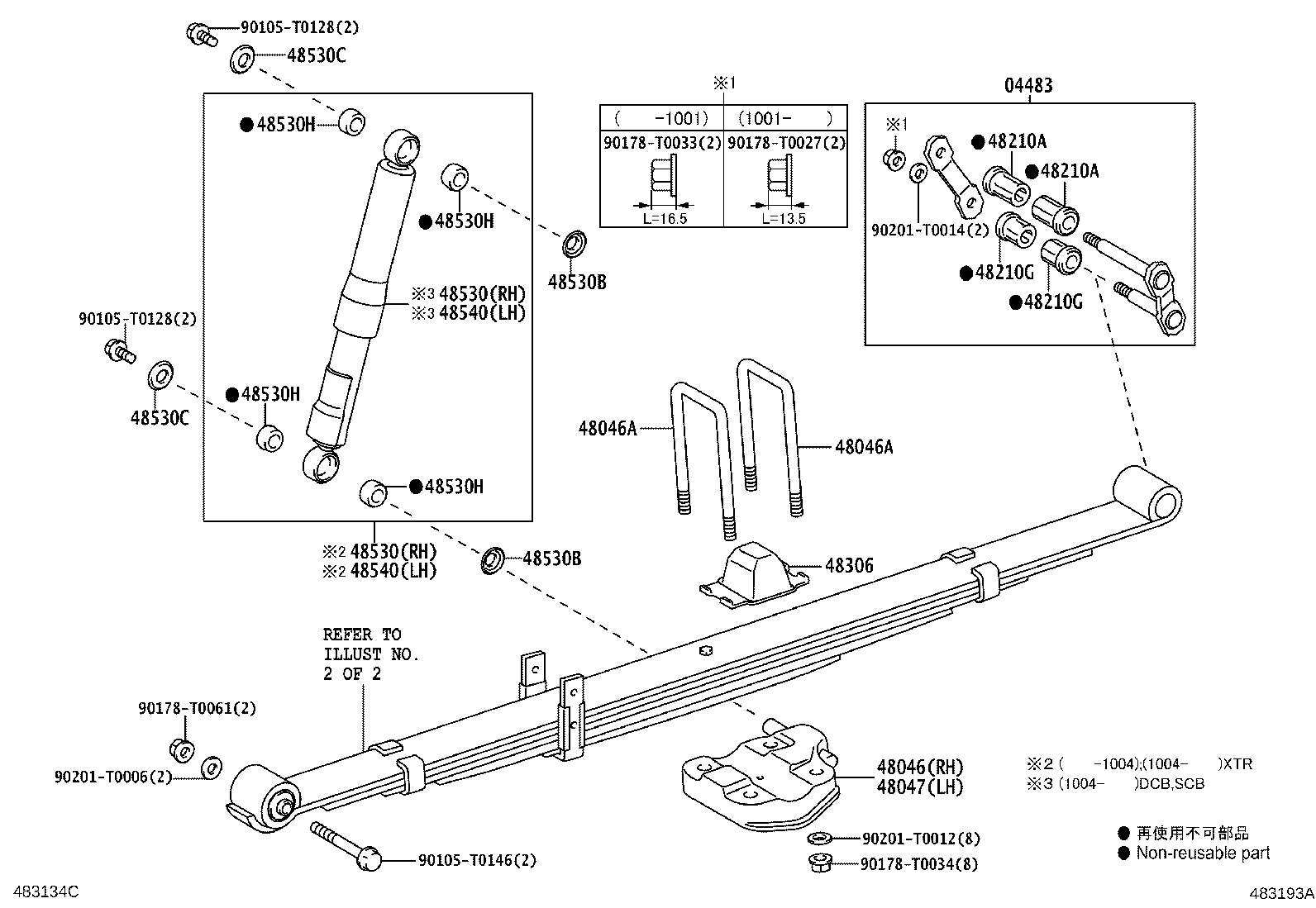

04483 - SHACKLE KIT, REAR SPRING
04483-0K022	GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36	08/2004 - 07/2006	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-0K020	KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
48046A - BOLT, U(FOR REAR SPRING)
90117-T0002	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) L=170	08/2004 - 12/2008	4
48046A - BOLT, U(FOR REAR SPRING)
90117-T0002	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) L=170	08/2004 - 12/2008	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-0K020	KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0001	GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36	08/2004 - 07/2006	4
90385-T0009	GGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);KUN25..GCC,GEN,MA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#,36..ARL,GCC,GEN,IDN,PHL,SA,TH	08/2008 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0001	GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36	08/2004 - 07/2006	4
90385-T0009	GGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);KUN25..GCC,GEN,MA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#,36..ARL,GCC,GEN,IDN,PHL,SA,TH	08/2008 - 12/2999	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0002	GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36	08/2004 - 07/2006	4
90385-T0010	GGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);KUN25..GCC,GEN,MA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#,36..ARL,GCC,GEN,IDN,PHL,SA,TH	08/2008 - 12/2999	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0002	GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36	08/2004 - 07/2006	4
90385-T0010	GGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);KUN25..GCC,GEN,MA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#,36..ARL,GCC,GEN,IDN,PHL,SA,TH	08/2008 - 12/2999	4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-0K020	GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA	04/2005 - 10/2008	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-09600	GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48531-0K170	04/2005 - 10/2008	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-09600	GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48531-0K170	04/2005 - 10/2008	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	4
90948-T3001	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	4
90948-T3001	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	4
90948-T3002	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	4
90948-T3002	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	8
90385-T0004	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	8
90385-T0004	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	8
90385-T0004	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	8
90385-T0004	KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH	08/2008 - 12/2999	8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-09600	GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48531-0K170	04/2005 - 10/2008	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-09600	GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48531-0K170	04/2005 - 10/2008	1
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0033
90178-T0034
90178-T0061
90201-T0006
90201-T0012
90201-T0014

ILLUST NO. 1 OF 2(1107- )GGN25,KUN2#,3#,TGN26,36..DCB,SCB,SMT,THDCB,THSCB,XTR..ANCOM,ARL,CO,GCC,G

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0034
90178-T0061
90201-T0006
90201-T0012
90201-T0014

TGN26R-TRMDKN (2005)

ILLUST NO. 2 OF 2(0504- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..DCB,SCB..SA

ILLUST NO. 1 OF 2(0504- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA

ILLUST NO. 1 OF 2(1107- )GGN25,KUN2#,3#,TGN26,36..DCB,SCB,SMT,THDCB,THSCB,XTR..ANCOM,ARL,CO,GCC,G

Part Price Details
