Toyota Hilux TGN26 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
US
HILUX
TGN26R-TRMDKN (2005)
4708 - BRAKE TUBE & CLAMP

TGN26R-TRMDKN (2005)

Toyota Hilux

Production Apr 2005 - Oct 2008

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-04010	TGN26..5F..GCC;KUN15..XTR..DLX;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36..(DCB,SCB)..5F;KUN15..LHD..SCB..GEN;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GEN,SA);KUN25..SCB..(GEN,LA,MA);KUN16,36,TGN16..XTR..TH;KUN15..SR..DCR..(PHL,TH);KUN15,16..RHD..(DCB,SCB);KUN25..RHD..DCB..(GEN,SA);TGN16..SCB..DLX..GCC..CBU;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN16..DCB..5F..(ANCOM,GCC,LA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);TGN26..(DCB,SCB,XTR)..(ANCOM,GEN,SA,TH);KUN15,25,TGN36..LHD..DCB..5F..DLX..(ANCOM,GCC,GEN,LA,PHL);GGN15,25,KUN10,LAN15,25,35,TGN10,11,15..ANCOM,ARL,GCC,GEN,SA	08/2004 - 02/2012	1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 01/2011	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-0K021	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA)	08/2004 - 12/2008	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-0K020	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA)	08/2004 - 12/2008	1
47910B - PLUG, BLEEDER
47547-27030	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47920 - SPRING ASSY, LOAD SENSING
47920-0K010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90080-46308	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47924 - BUSH, LOAD SENSING VALVE
47924-04010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47924 - BUSH, LOAD SENSING VALVE
47924-04010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	2
47931 - BRACKET, LOAD SENSING VALVE
47931-0K010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-04010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-0K020	KUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA)	08/2004 - 12/2008	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-04010	TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
Common parts
90016-AC102
90016-AC103
90016-AX201
90080-10258
90080-56074
90119-08B11
90119-T0126
90119-T0200
94512-00800
94612-10800

ILLUST NO. 1 OF 3(0504- )KUN25,35,LAN25,35,TGN26..RHD..DLX..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K020	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA	04/2005 - 10/2008	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10252	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) LH	08/2008 - 12/2999	1
90412-10251	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) RH	08/2004 - 02/2012	1
90412-10251	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) RH	08/2008 - 12/2999	1
90412-10252	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) LH	08/2004 - 02/2012	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10252	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) LH	08/2008 - 12/2999	1
90412-10251	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) RH	08/2004 - 02/2012	1
90412-10251	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) RH	08/2008 - 12/2999	1
90412-10252	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) LH	08/2004 - 02/2012	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
90412-10253	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K030	KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA	04/2005 - 10/2008	1
47313-0K010	KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	10/2007 - 10/2008	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10309	KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	10/2007 - 10/2008	1
90414-10055	KUN16..XTR..TH;KUN25..SCB..MA;KUN26..4FC..ARL;KUN36,TGN26..DCB..DLX..LA;TGN16..5F..(ARL,GCC,GEN,SA);KUN26,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN36..5F..DLX..(ANCOM,LA,PHL,SA);KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH);GGN15,25,KUN10,36,TGN10,11..(DCB,SCB,XTR)..(DLX,SR)..(ARL,GCC,IDN,TH);KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB)..(DLX,STD)..(ANCOM,ARL,GCC,GEN,PKN,SA,TH)	08/2004 - 02/2012	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K030	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K030	KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA	04/2005 - 10/2008	1
47315-0K010	KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	10/2007 - 10/2008	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K030	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K050	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA	04/2005 - 10/2008	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)	08/2004 - 10/2008	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10308	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K010	KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	10/2007 - 10/2008	1
47323-0K030	KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA	04/2005 - 10/2008	1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)	08/2004 - 10/2008	1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K021	KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;TGN36..SCB..(LA,SA);TGN26..GCC,GEN,SA,TH;KUN25..SCB..(GEN,LA);TGN36..DCB..(PHL,SA);TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(GCC,GEN,LA,SA,TH);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC)..(ARL,LA,SA,TH)	08/2004 - 12/2008	1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K020	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K020	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K010	KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN26,3#,LAN25,35,TGN26,36..LA,SA	08/2004 - 10/2008	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K010	KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN26,3#,LAN25,35,TGN26,36..LA,SA	08/2004 - 10/2008	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-0K010	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1
47353-0K020	GGN25,KUN2#,3#,LAN25,35,TGN26,36..LA,SA	08/2004 - 10/2008	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-0K030	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1
47354-0K020	GGN25,KUN2#,3#,LAN25,35,TGN26,36..LA,SA	08/2004 - 10/2008	1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	2
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,LA,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,SA,TH)	08/2004 - 10/2008	4
90461-T0001	GGN25..5FC..SA;GGN15..DCB..DLX;GGN25..DCB..(ARL,LA);TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ARL,GCC,GEN,LA,PHL,PKN,SA,TH)	08/2008 - 12/2999	4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1014	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1008	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1009	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH NO.1 & NO.2	08/2004 - 05/2005	6
90469-T0007	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1	05/2005 - 10/2008	1
90949-T1006	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH) NO.2	05/2005 - 10/2008	5
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH NO.1 & NO.2	08/2004 - 05/2005	6
90469-T0007	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1	05/2005 - 10/2008	1
90949-T1006	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH) NO.2	05/2005 - 10/2008	5
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH NO.1 & NO.2	08/2004 - 05/2005	6
90469-T0007	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1	05/2005 - 10/2008	1
90949-T1006	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH) NO.2	05/2005 - 10/2008	5
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	2
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0166
90119-T0244
90468-T0004
Linked diagrams
4702
7751

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90016-AC102
90016-AC103
90016-AX201
90080-10258
90080-56074
90119-T0126
90119-T0200
94512-00800
94612-10800

TGN26R-TRMDKN (2005)

ILLUST NO. 3 OF 3(0408- )

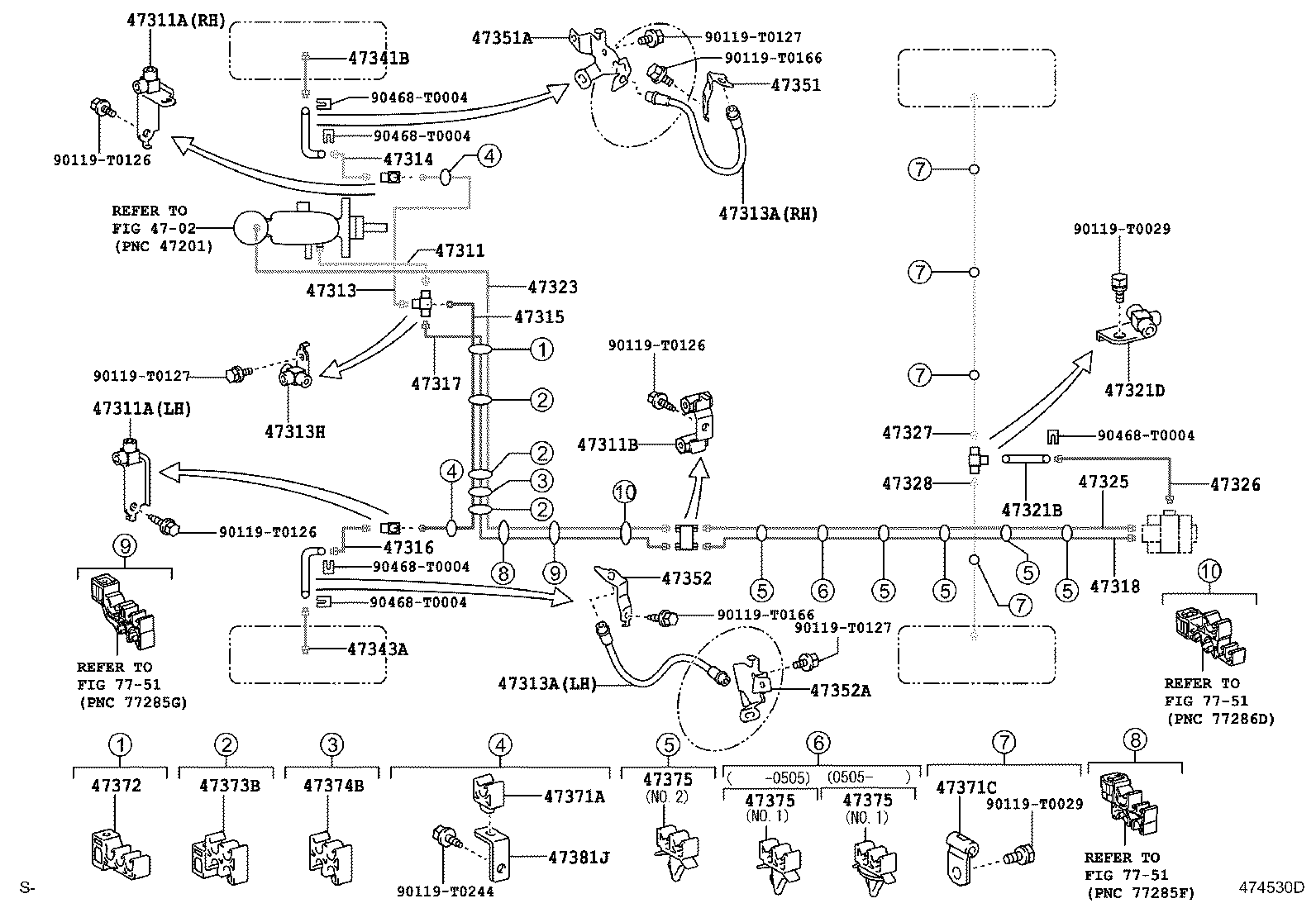

ILLUST NO. 1 OF 3(0504- )KUN25,35,LAN25,35,TGN26..RHD..DLX..SA

ILLUST NO. 3 OF 3(1107- )
