TGN26R-TRMDKN (2005)

Toyota Hilux

Production Apr 2005 - Oct 2008

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408-0808)KUN2#,LAN25,TGN26..5F ; (0502-0808)GGN25..5F..ARL ; (0504-0808)GGN25..5F

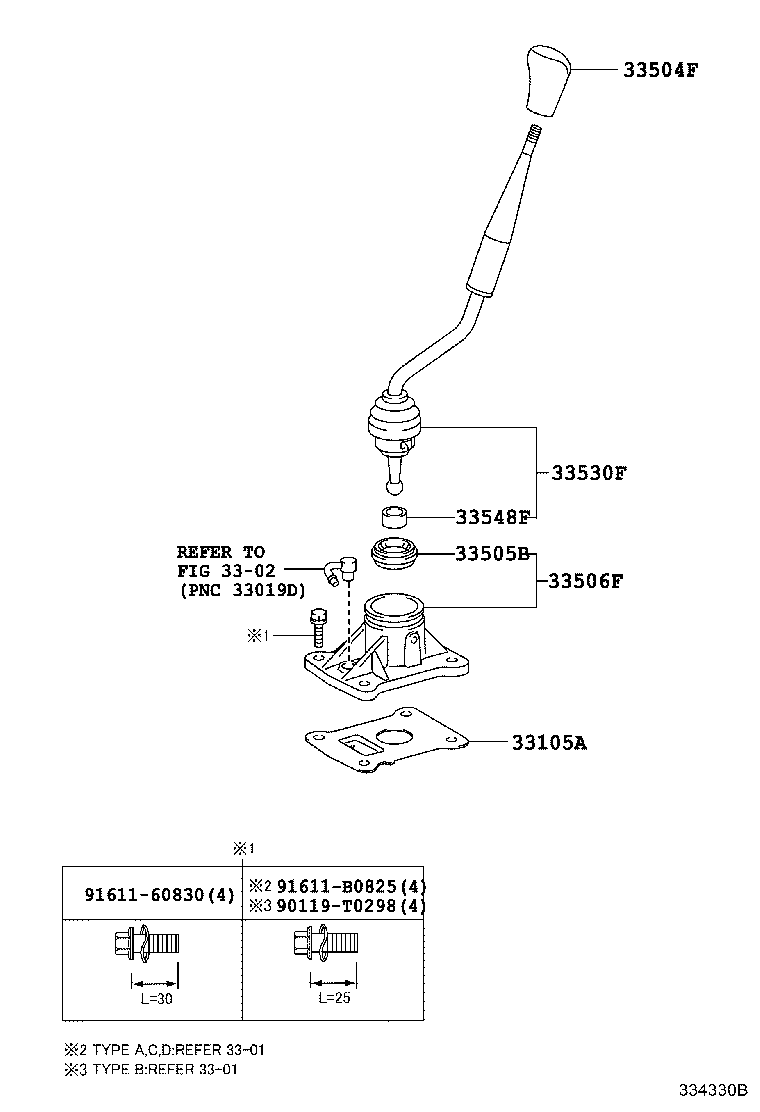

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02070B0	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..5F..SA DK.GRAY,TRIM1#	04/2005 - 10/2008	1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075	LAN25,TGN26..ANCOM,LA,SA	04/2005 - 08/2008	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K160	TGN26..SCB..SA	04/2005 - 11/2005	1
33530-0K161	TGN26..SCB..SA	12/2005 - 04/2006	1
33530-0K162	TGN26..SCB..SA	05/2006 - 07/2008	1
33530-0K471	TGN26..SCB..SA	08/2008 - 10/2008	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010	GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
33548-04010	TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
Common parts
91611-B0825

(0808- )KUN10,2#..5F ; (0808- )KUN15..DCR..GCC,GEN,PHL,PKN,TH

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02070B0	GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..5F..SA DK.GRAY,TRIM1#	04/2005 - 10/2008	1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K160	TGN26..SCB..SA	04/2005 - 11/2005	1
33530-0K161	TGN26..SCB..SA	12/2005 - 04/2006	1
33530-0K162	TGN26..SCB..SA	05/2006 - 07/2008	1
33530-0K471	TGN26..SCB..SA	08/2008 - 10/2008	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010	GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
33548-04010	TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
Common parts
90119-T0052
91611-60830
91611-B0825
Linked diagrams
3302

(1107- )GGN25,LAN25,TGN26..5F

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0298
91611-60830
91611-B0825
Linked diagrams
3302
