TGN26R-TRMDKN (2005)

Toyota Hilux

Production Apr 2005 - Oct 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )1TRFE,2TRFE..TGN15,16,26,36..ANCOM,LA,SA

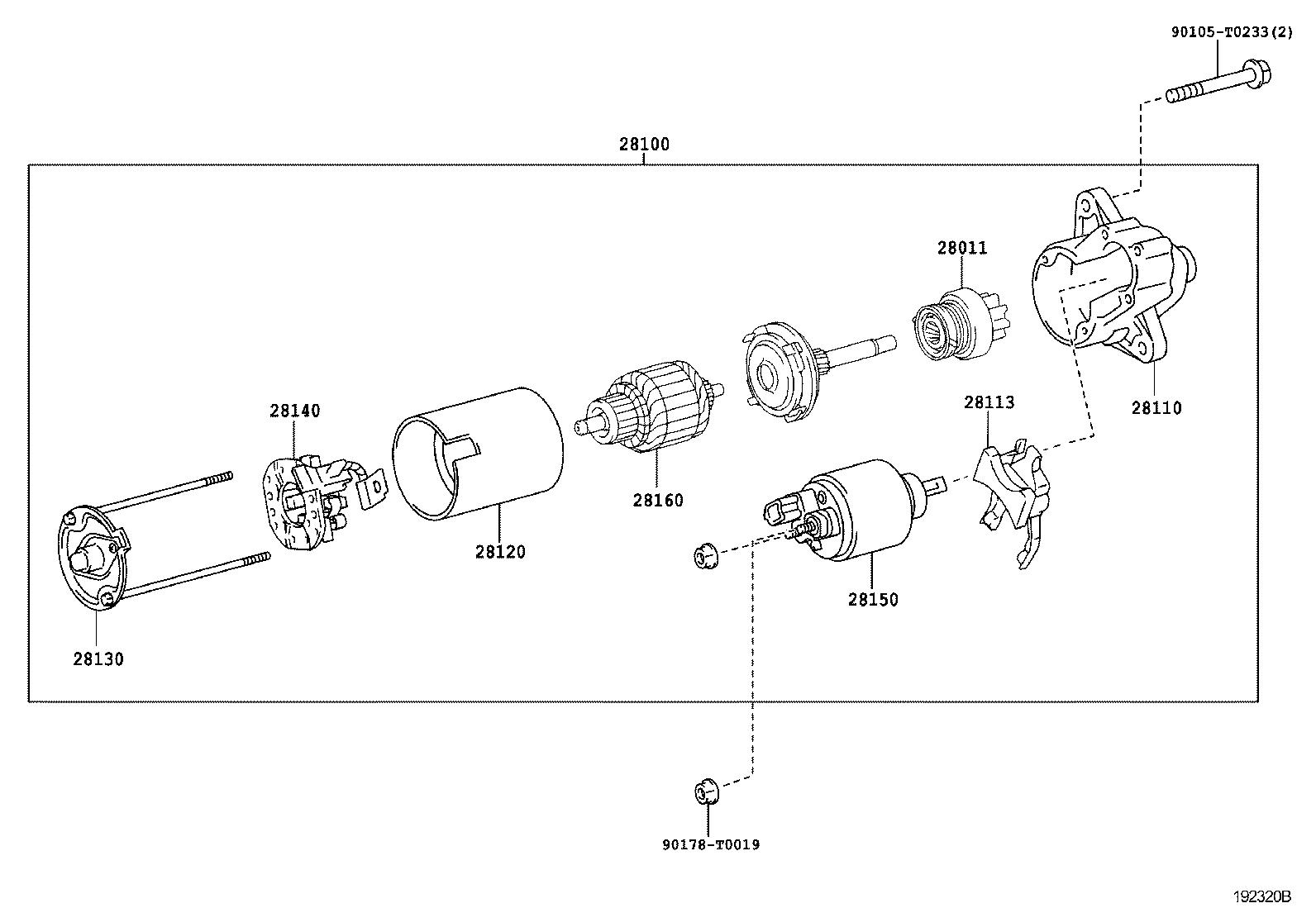

Click highlighted areas on diagram

12V 1.4KW

diagram 28011 28100 28110 28113 28120 28130 28140 28150 28160 90105T0233 90178T0019
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0C040

1TRFE,2TRFE..TGN15,16,26,36..SA

 1
28100 - STARTER ASSY
28100-0C040

1TRFE,2TRFE..TGN15,16,26,36..SA

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0C040

1TRFE,2TRFE..TGN15,16,26,36..SA

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0C040

1TRFE,2TRFE..TGN15,16,26,36..SA

 1
28160 - ARMATURE ASSY, STARTER
28160-0C040

1TRFE,2TRFE..TGN15,16,26,36..SA

 1
Common parts
90105-T0233
90178-T0019
