TGN26R-PRPSKT (2005)

Toyota Hilux

Production Jan 2005 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE

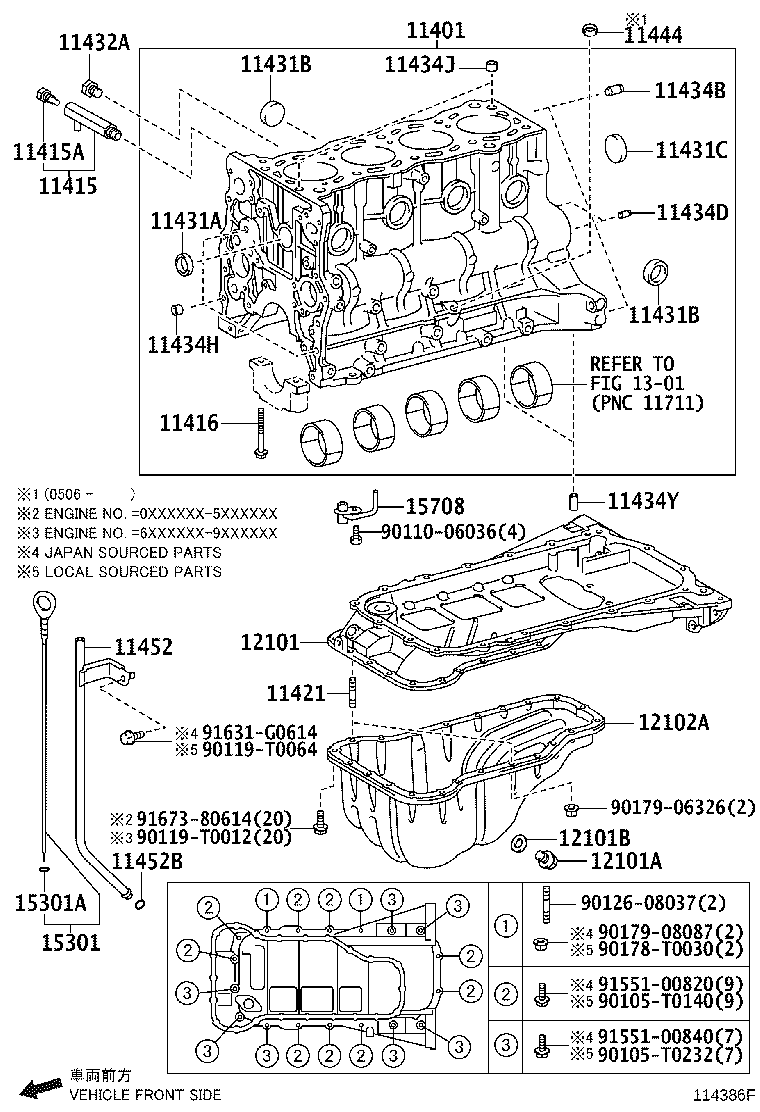

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431A 11431B 11431B 11431C 11432A 11434B 11434D 11434H 11434J 11434Y 11444 11452 11452B 12101 12101A 12101B 12102A 1301 15301 15301A 15708 90105T0140 90105T0232 9011006036 90119T0012 90119T0064 9012608037 90178T0030 9017906326 9017908087 9155100820 9155100840 91631G0614 9167380614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-09410

2TRFE..TGN11,16,26,36..ANCOM,ARL,GCC,GEN,LA,PHL,TH

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02092

2TRFE..TGN11,16,26,36

(J)

 20
90910-02092

2TRFE..TGN11,16,26,36

(J)

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63000

2TRFE..TGN11,16,26,36

(J)

 1
96411-63000

2TRFE..TGN11,16,26,36

(J)

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

2TRFE..TGN11,16,26,36

(J)

 8
96411-63500

2TRFE..TGN11,16,26,36

(J)

 16
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

2TRFE..TGN11,16,26,36

(J)

 8
96411-63500

2TRFE..TGN11,16,26,36

(J)

 16
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

2TRFE..TGN11,16,26,36

(J)

 3
96411-64000

2TRFE..TGN11,16,26,36

(J)

 6
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90253-T0006

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 2
11452 - GUIDE, OIL LEVEL GAGE
11409-0C020

1TRFE,2TRFE..TGN1#,26,36..ARL,GEN,PHL,TH

 1
11409-0C021

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-T0025

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
12101 - PAN SUB-ASSY, OIL
12101-0C020

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-T0004

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0C020

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0C010

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
90301-T0018

1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

 1
Common parts
90105-T0140
90105-T0232
90110-06036
90119-T0012
90119-T0064
90126-08037
90178-T0030
90179-06326
90179-08087
91551-00820
91551-00840
91631-G0614
91673-80614
Linked diagrams
1301

(1107-1408)2TRFE..ARL,GCC,GEN,TH ; (1107- )2TRFE..TGN16,26,36..ANCOM,CO,LA,SA

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431A 11431B 11431B 11431C 11432A 11434B 11434D 11434H 11434J 11434Y 11444 11452 11452B 12101 12101A 12101B 12102A 15301 15301A 15708 90105T0130 90105T0140 90105T0232 9011006036 9011906938 90119T0012 90119T0136 90119T0464 9012608052 90126T0016 90178T0019 90178T0030 9017906326 90182T0022 9155100820 9155180840 9167180614 9415180800
Part # Description Qty Price
Common parts
90105-T0130
90105-T0140
90105-T0232
90110-06036
90119-06938
90119-T0012
90119-T0136
90119-T0464
90126-08052
90126-T0016
90178-T0019
90178-T0030
90179-06326
90182-T0022
91551-00820
91551-80840
91671-80614
94151-80800
