TGN26L-PRMDKV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )TGN16..DCB..ARL,GCC ; (0507- )GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX

Click highlighted areas on diagram

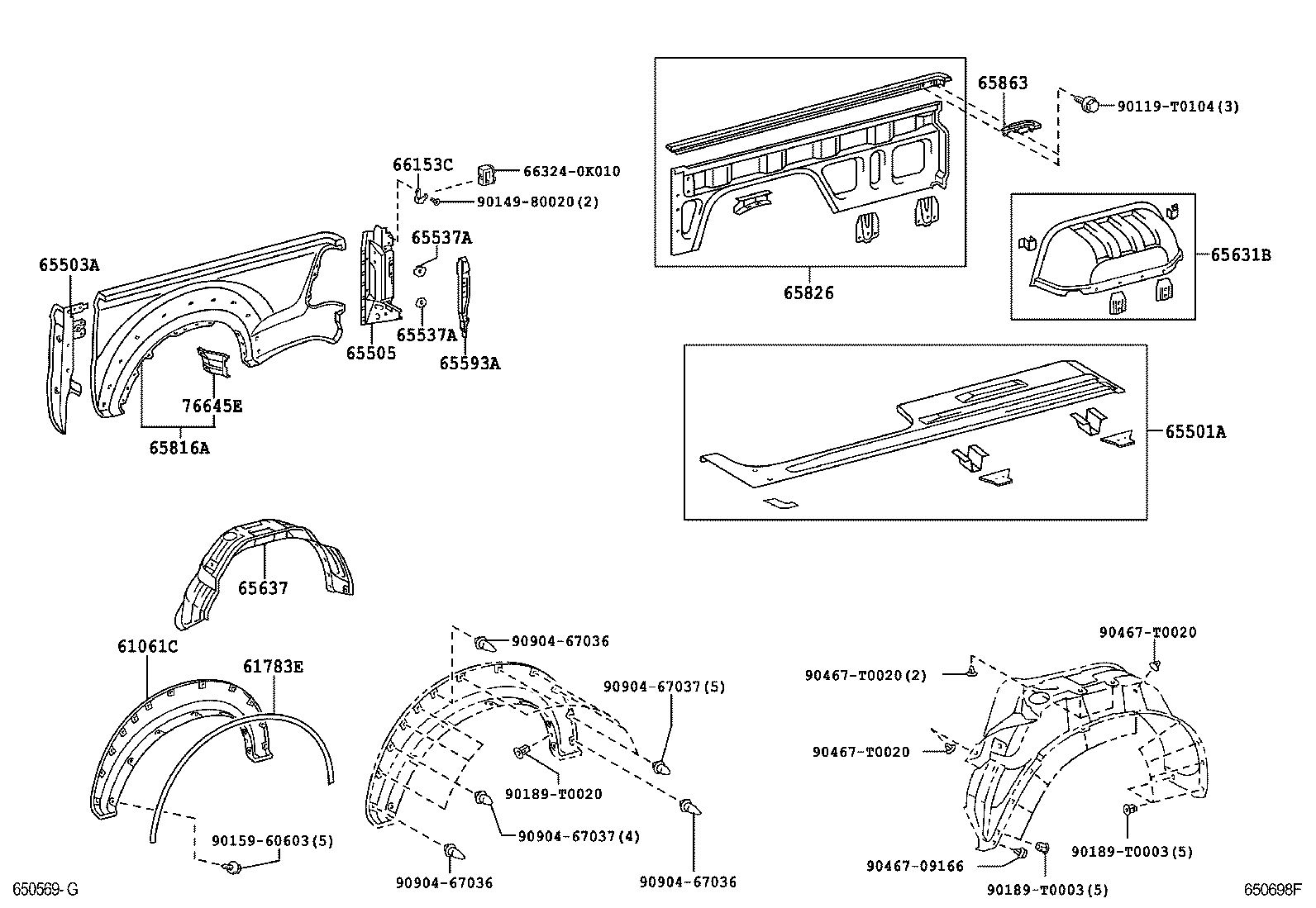

RH W/O HOOK,ROPE

diagram 61061C 61783E 65501A 65503A 65505 65537A 65537A 65593A 65631B 65637 65816A 65826 65863 66153C 663240K010 76645E 90119T0104 9014980020 9015960603 90189T0003 90189T0003 90189T0020 9046709166 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K041B0

GGN25,KUN2#,35,TGN26..DLX..(ARL,GCC,GEN)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9

 1
61783-0K041C0

GGN25,KUN2#,TGN26..(DCB,SCB)..DLX..(ARL,GCC,GEN)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4

 1
65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH
65317-0K905

TGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)..CBU;GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)

 1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65551-0K040

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
65537A - PATCH, SIDE PANEL REINFORCEMENT, RH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65537A - PATCH, SIDE PANEL REINFORCEMENT, RH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65631B - PANEL, WHEEL HOUSE, RH
65631-0K903

KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU

 1
65816A - PANEL, REAR BODY SIDE, RH
65816-0K905

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
65816-0K909

GGN25,KUN2#,TGN26..DCB..DLX..(ARL,GCC)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)

 1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-0K906

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
76645E - BRACKET, RR BODY MUDGUARD, RH
76645-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
Common parts
66324-0K010
90119-T0104
90149-80020
90159-60603
90189-T0003
90189-T0020
90467-09166
90467-T0020
90904-67036
90904-67037

(0507- )TGN16..DCB..ARL,GCC ; (0507- )GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX

Click highlighted areas on diagram

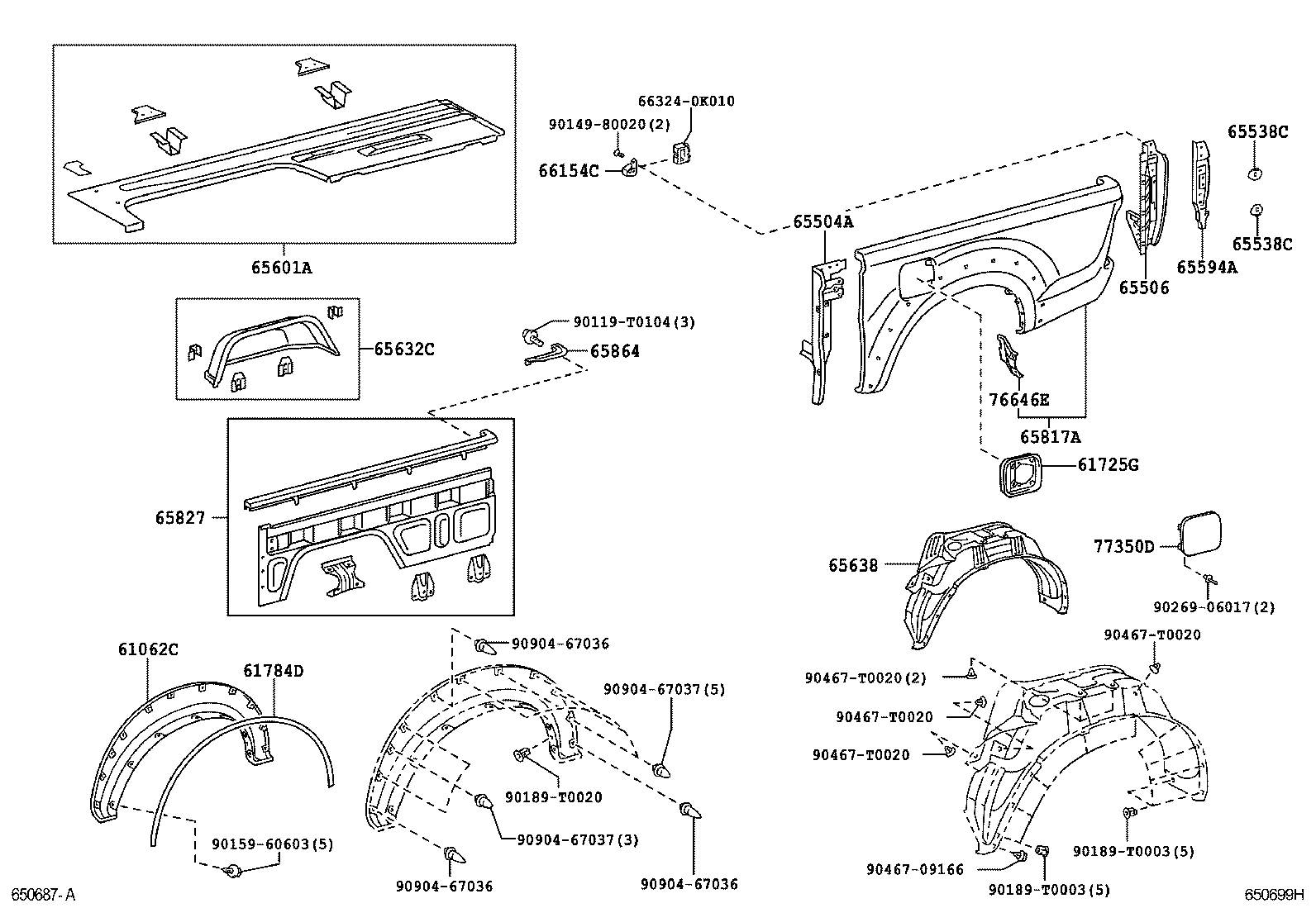

LH W/O HOOK,ROPE

diagram 61062C 61725G 61784D 65504A 65506 65538C 65538C 65594A 65601A 65632C 65638 65817A 65827 65864 66154C 663240K010 76646E 77350D 90119T0104 9014980020 9015960603 90189T0003 90189T0003 90189T0020 9026906017 9046709166 90467T0020 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
61725G - BOX, FUEL INLET, NO.1
61725-0K020

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH)..CBU;KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61784D - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-0K041C0

GGN25,KUN2#,TGN26..(DCB,SCB)..DLX..(ARL,GCC,GEN)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4

 1
61784-0K041B0

GGN25,KUN2#,35,TGN26..DLX..(ARL,GCC,GEN)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9

 1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65552-0K040

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
65538C - PATCH, SIDE PANEL REINFORCEMENT, LH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65538C - PATCH, SIDE PANEL REINFORCEMENT, LH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH
65318-0K905

TGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)..CBU;GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)

 1
65632C - PANEL, WHEEL HOUSE, LH
65632-0K901

KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU

 1
65817A - PANEL, REAR BODY SIDE, LH
65817-0K904

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
65817-0K909

GGN25,KUN2#,TGN26..DCB..DLX..(ARL,GCC)..CBU

TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)

 1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-0K905

TGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU

 1
76646E - BRACKET, RR BODY MUDGUARD, LH
76646-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77350D - LID ASSY, FUEL FILLER OPENING
77350-0K040

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH)..CBU;KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
Common parts
66324-0K010
90119-T0104
90149-80020
90159-60603
90189-T0003
90189-T0020
90269-06017
90467-09166
90467-T0020
90904-67036
90904-67037
