TGN26L-PRMDKV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0608)KUN15,25,36,LAN15,25,35,TGN15,16,26,36..DCB,XTR..GEN,MA,SA ; (0608-0609)

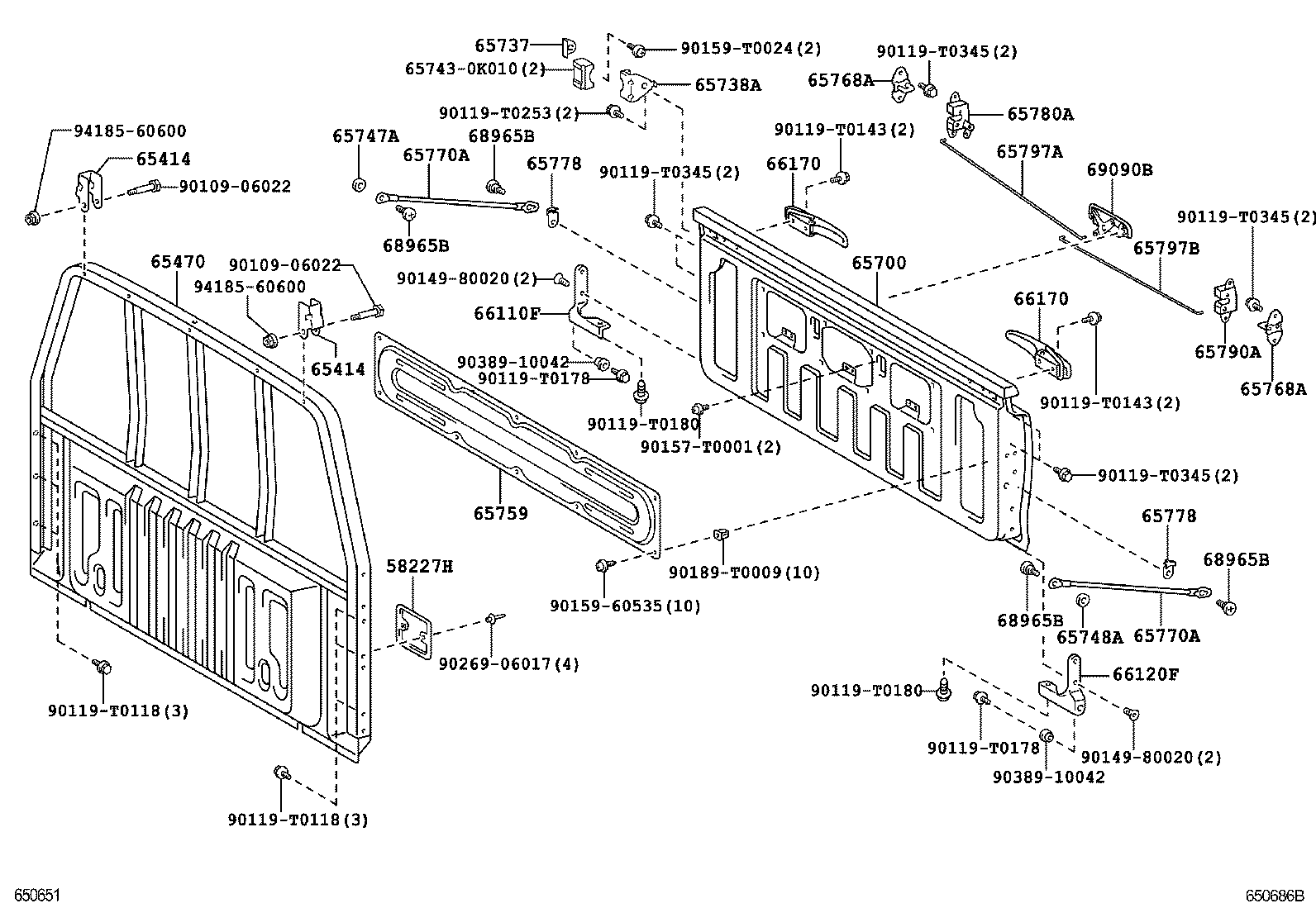

Click highlighted areas on diagram

W(FLAME)

diagram 58227H 65414 65414 65470 65700 65737 65738A 657430K010 65747A 65748A 65759 65768A 65768A 65770A 65770A 65778 65778 65780A 65790A 65797A 65797B 66110F 66120F 68965B 68965B 68965B 68965B 69090B 9010906022 9010906022 90119T0118 90119T0118 90119T0178 90119T0178 90119T0180 90119T0180 90119T0253 90119T0345 90119T0345 90119T0345 90119T0345 9014980020 9014980020 90157T0001 9015960535 90159T0024 90189T0009 9026906017 9038910042 9038910042 9418560600 9418560600
Part # Description Qty Price
58227H - COVER, HEADER PANEL, NO.1
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65747A - PLATE, TAIL GATE SEAL, RH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65748A - PLATE, TAIL GATE SEAL, LH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
66110F - HINGE ASSY, TAIL GATE, RH
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
Common parts
65743-0K010
90109-06022
90119-T0118
90119-T0178
90119-T0180
90119-T0253
90119-T0345
90149-80020
90157-T0001
90159-60535
90159-T0024
90189-T0009
90269-06017
90389-10042
94185-60600

(0609- )GGN15..XTR..DLX ; (0609- )KUN26..DCB..GEN ; (0609- )LHD..DCB,XTR..

Click highlighted areas on diagram

W(FLAME)

diagram 58227H 65414 65414 65470 65700 65737 65738A 657430K010 65747A 65748A 65759 65768A 65768A 65770A 65770A 65778 65778 65780A 65790A 65797A 65797B 66110F 66120F 68965B 68965B 68965B 68965B 69090B 9010906022 9010906022 90119T0118 90119T0118 90119T0178 90119T0178 90119T0180 90119T0180 90119T0253 90119T0345 90119T0345 90119T0345 90119T0345 9014980020 9014980020 90157T0001 9015960535 90159T0024 90189T0009 9026906017 9038910042 9038910042 9418560600 9418560600
Part # Description Qty Price
58227H - COVER, HEADER PANEL, NO.1
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65747A - PLATE, TAIL GATE SEAL, RH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65748A - PLATE, TAIL GATE SEAL, LH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
66110F - HINGE ASSY, TAIL GATE, RH
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
Common parts
65743-0K010
90109-06022
90119-T0118
90119-T0178
90119-T0180
90119-T0253
90119-T0345
90149-80020
90157-T0001
90159-60535
90159-T0024
90189-T0009
90269-06017
90389-10042
94185-60600

(0609- )GGN25,KUN15,25,36,LAN25..RHD..DCB,XTR..5F,5FC..GEN,PKN,SA ; (0808- )K

Click highlighted areas on diagram

W(FLAME)

diagram 58227H 65414 65414 65470 65700 65737 65738A 657430K010 65747A 65748A 65759 65768A 65768A 65770A 65770A 65778 65778 65780A 65790A 65797A 65797B 66110F 66120F 68965B 68965B 68965B 68965B 69090B 9010906022 9010906022 90119T0118 90119T0118 90119T0178 90119T0178 90119T0180 90119T0180 90119T0253 90119T0345 90119T0345 90119T0345 90119T0345 9014980020 9014980020 90157T0001 9015960535 90159T0024 90189T0009 9026906017 9038910042 9038910042 9418560600 9418560600
Part # Description Qty Price
58227H - COVER, HEADER PANEL, NO.1
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65747A - PLATE, TAIL GATE SEAL, RH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65748A - PLATE, TAIL GATE SEAL, LH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
66110F - HINGE ASSY, TAIL GATE, RH
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
Common parts
65743-0K010
90109-06022
90119-T0118
90119-T0178
90119-T0180
90119-T0253
90119-T0345
90149-80020
90157-T0001
90159-60535
90159-T0024
90189-T0009
90269-06017
90389-10042
94185-60600

(0507- )TGN16,26..DCB..5F..ARL,GCC ; (0507-)GGN15,25,KUN15,16,2#,TGN15..DCB.

Click highlighted areas on diagram

W(FLAME)

diagram 58227H 65414 65414 65470 65700 65737 65738A 657430K010 65747A 65748A 65759 65768A 65768A 65770A 65770A 65778 65778 65780A 65790A 65797A 65797B 66110F 66120F 66170 66170 68965B 68965B 68965B 68965B 69090B 9010906022 9010906022 90119T0118 90119T0118 90119T0143 90119T0143 90119T0178 90119T0178 90119T0180 90119T0180 90119T0253 90119T0345 90119T0345 90119T0345 90119T0345 9014980020 9014980020 90157T0001 9015960535 90159T0024 90189T0009 9026906017 9038910042 9038910042 9418560600 9418560600
Part # Description Qty Price
58227H - COVER, HEADER PANEL, NO.1
58227-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-0K030

KUN10,15,25,TGN1#,26..GCC..CBU

 1
65747A - PLATE, TAIL GATE SEAL, RH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65748A - PLATE, TAIL GATE SEAL, LH
65747-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65770A - STAY ASSY, TAIL GATE
65770-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN10,11,15,26,36..(ARL,GCC,GEN,IDN,PHL,PKN,SA,TH)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
66110F - HINGE ASSY, TAIL GATE, RH
66110-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0K010

KUN15..XTR..DLX;KUN15..(DCB,SCB)..CBU;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..CBU

 1
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 4
Common parts
65743-0K010
90109-06022
90119-T0118
90119-T0143
90119-T0178
90119-T0180
90119-T0253
90119-T0345
90149-80020
90157-T0001
90159-60535
90159-T0024
90189-T0009
90269-06017
90389-10042
94185-60600
