TGN26L-PRMDKN (2011)
Toyota Hilux

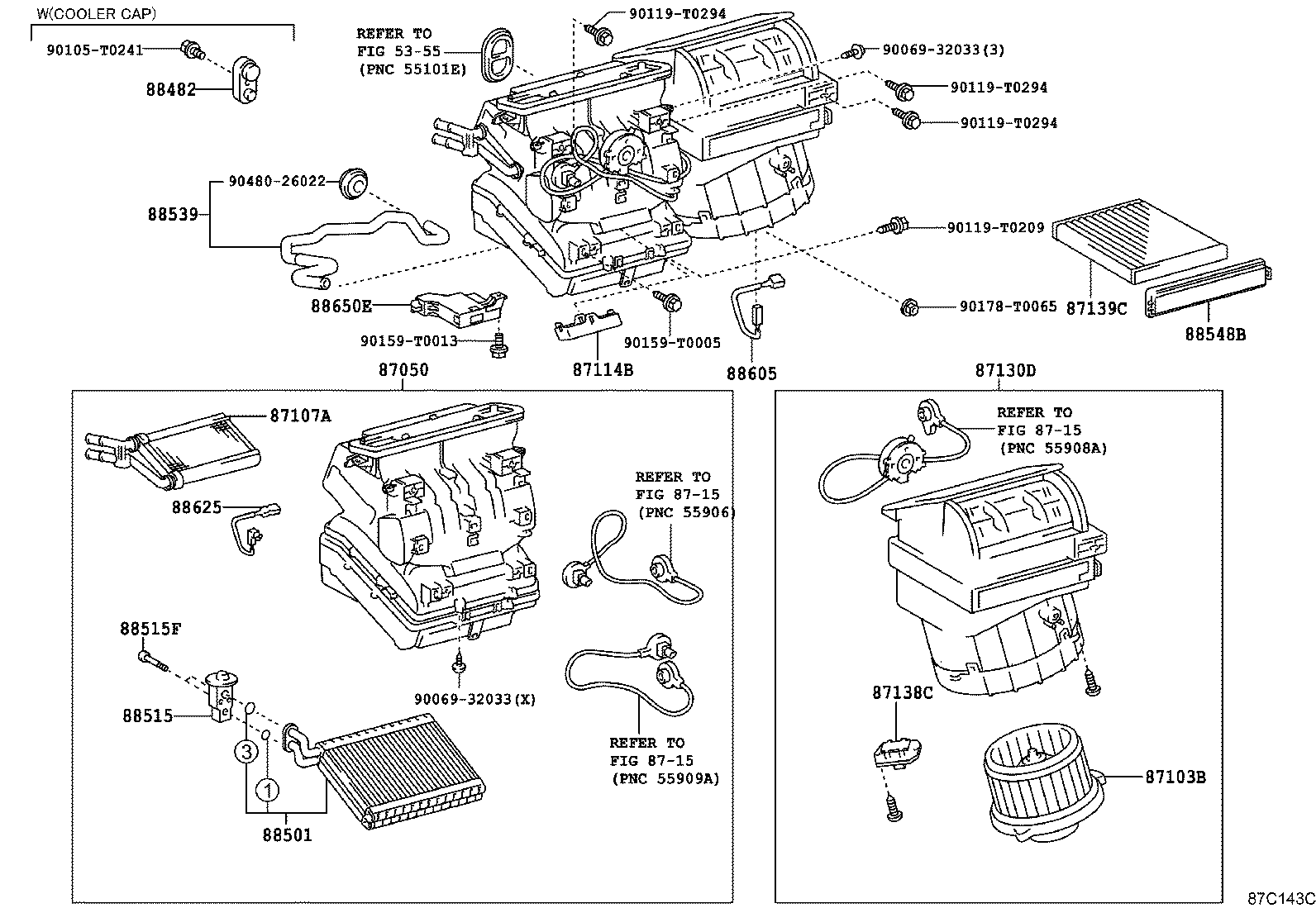

ILLUST NO. 1 OF 2(1108- )LHD..DLX..SA ; (1201- )LHD..SADCB
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K200 |
TGN16,26..SA;LAN25..LHD..DCB;KUN26..LHD..SADCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02470 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K050 |
KUN26..SADCB;KUN25..LHD..SA;GGN25,35,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K010 |
KUN26..SADCB;KUN25..LHD..SA;GGN25,35,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K091 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..DLX..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-52020 |
KUN25..GCC,GEN;KUN25..LHD..SA;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,SA STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12510 |
KUN26..SADCB;LAN25..LHD..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88501-12510 |
LAN25..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN1#,26,36..GEN,SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K170 |
LAN25..DCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515-0K530 |
LAN25..DCB;KUN26..SADCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04597 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K030 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0K120 |
TGN15,16..SA;KUN35..SR..SA;TGN26..SCB..ANCOM;KUN25,35..DCB..(CO,LA);KUN26,TGN26..SR..(ANCOM,CO);TGN26,36..4FC..(ANCOM,LA,SA);KUN15,3#..RHD..(SCB,XTR)..SA;KUN26,TGN36..(SADCB,SCB,XTR)..(DCR,HTWC,IART)..(ANCOM,GEN,LA,SA)..CBU;KUN26,36,LAN25,TGN26,36..DCB..(5F,5FC)..DLX..(DCR,DEFI,HTWC,IART)..(LA,SA) |
1 | ||
| Common parts | ||||
| 90069-32033 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1108- )RHD..SADCB ; (1108- )KUN35..DCB,SCB..SA ; (1108- )GGN25,35,KUN15,2
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K200 |
TGN16,26..SA;LAN25..LHD..DCB;KUN26..LHD..SADCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02470 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K050 |
KUN26..SADCB;KUN25..LHD..SA;GGN25,35,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K010 |
KUN26..SADCB;KUN25..LHD..SA;GGN25,35,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K091 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..DLX..SA |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-52020 |
KUN25..GCC,GEN;KUN25..LHD..SA;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,SA STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12510 |
KUN26..SADCB;LAN25..LHD..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88501-12510 |
LAN25..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN1#,26,36..GEN,SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K170 |
LAN25..DCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515-0K530 |
LAN25..DCB;KUN26..SADCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04597 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K030 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| Common parts | ||||
| 90069-32033 | ||||
| 90099-00318 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 1 OF 2(1110- )KUN26..CO ; (1110- )KUN26..4FC,5F..DCR..LA ; (1110- )KUN25,3#,TGN2
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K200 |
TGN16,26..SA;LAN25..LHD..DCB;KUN26..LHD..SADCB |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02470 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K050 |
KUN26..SADCB;KUN25..LHD..SA;GGN25,35,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K091 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..DLX..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-52020 |
KUN25..GCC,GEN;KUN25..LHD..SA;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,SA STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12510 |
KUN26..SADCB;LAN25..LHD..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88501-12510 |
LAN25..DCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN1#,26,36..GEN,SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K170 |
LAN25..DCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515-0K530 |
LAN25..DCB;KUN26..SADCB;KUN35..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04597 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K030 |
KUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
LAN25..DCB;KUN26..SADCB;KUN15,25,35..DCB..SR..SA;KUN15,35..RHD..(SCB,XTR)..SA;GGN25,35,KUN26,36,TGN15,16,26,36..SA |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0K120 |
TGN15,16..SA;KUN35..SR..SA;TGN26..SCB..ANCOM;KUN25,35..DCB..(CO,LA);KUN26,TGN26..SR..(ANCOM,CO);TGN26,36..4FC..(ANCOM,LA,SA);KUN15,3#..RHD..(SCB,XTR)..SA;KUN26,TGN36..(SADCB,SCB,XTR)..(DCR,HTWC,IART)..(ANCOM,GEN,LA,SA)..CBU;KUN26,36,LAN25,TGN26,36..DCB..(5F,5FC)..DLX..(DCR,DEFI,HTWC,IART)..(LA,SA) |
1 | ||
| Common parts | ||||
| 90068-00034 | ||||
| 90094-90426 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
