TGN26L-PRMDKG (2011)
Toyota Hilux

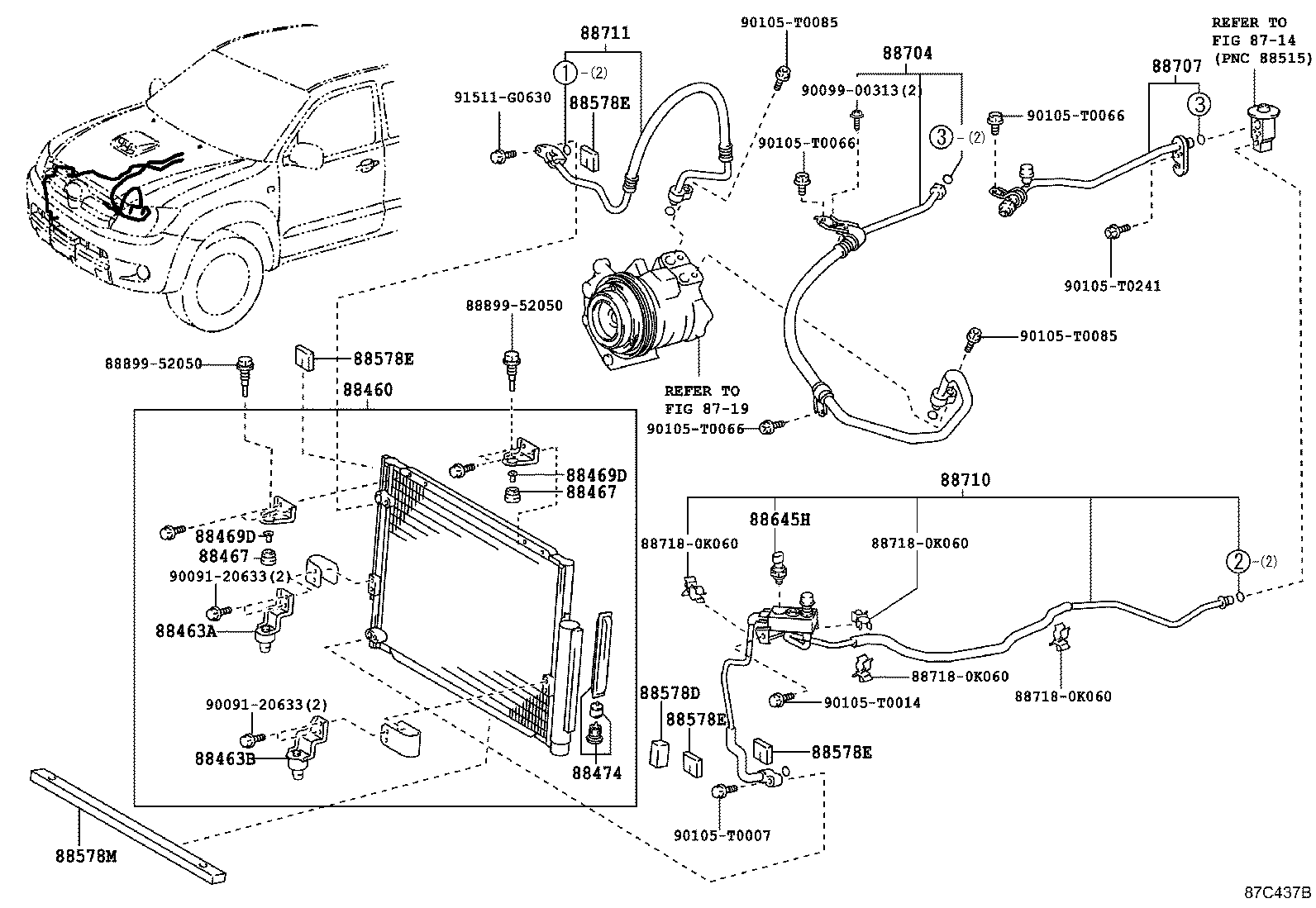

ILLUST NO. 1 OF 2(1110- )TGN26,36..CO,LA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K140 |
TGN26..THDCB..DLX;TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88460-0K140 |
TGN26..DLX..LA;TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K460 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88463-0K460 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K470 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K470 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-02090 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-02090 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88469-02030 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88469-02030 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN10,15,25,TGN1#..GCC;TGN26..DLX..HTWC..(GCC,LA);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88474-17010 |
TGN26..THDCB..DLX;TGN16..5F..(ARL,GCC);KUN26..DCB..5FC..IV3;TGN26..DCB..DLX..ANCOM;KUN25,TGN16..4FC..(GCC,GEN);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN1#,36,TGN10,11,15,26..DLX..(ARL,GCC,LA);KUN25,TGN36..5F..(HDCR,HTWCF)..(GCC,LA)..CBU;KUN26,TGN36..(SCB,XTR)..5F..(ANCOM,ARL)..IV3;KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN;KUN26,35..(DCB,SCB,THDCB,XTR)..DLX..(DCR,HDCR)..(ARL,GEN,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K220 |
TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K230 |
KUN2#,3#,TGN26,36..CO,LA |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
KUN2#,3#,TGN26,36..CO,LA |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
KUN2#,3#,TGN26,36..CO,LA |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
KUN2#,3#,TGN26,36..CO,LA |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
KUN2#,3#,TGN26,36..CO,LA |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K201 |
TGN26,36..CO,LA |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
TGN15,16..GCC;KUN35..DLX..GEN;TGN26..THDCB..DLX;TGN26..DLX..HTWC..(GCC,LA);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,TGN10,11..LHD..(SADCB,SCB,THDCB)..DLX..(GCC,GEN) AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K242 |
TGN26..THDCB..DLX;TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88704-0K242 |
TGN26..DLX..LA;TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0K060 |
TGN26..DLX..LA;TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88707-0K060 |
TGN26..THDCB..DLX;TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K120 |
TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,HTWCF)..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K191 |
TGN26..THDCB..DLX;TGN26..DLX..HTWC..LA;TGN36..(DCB,THDCB)..5F..DLX..HTWC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88711-0K191 |
TGN26..DLX..LA;TGN36..5F..HTWCF;TGN36..DCB..DLX..HTWC..LA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90091-20633 | ||||
| 90099-00313 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
