TGN16R-TRMDKQ3 (2005)
Toyota Hilux
ILLUST NO. 1 OF 2(0502- )GGN15,25,TGN15,16,26,36..IV3

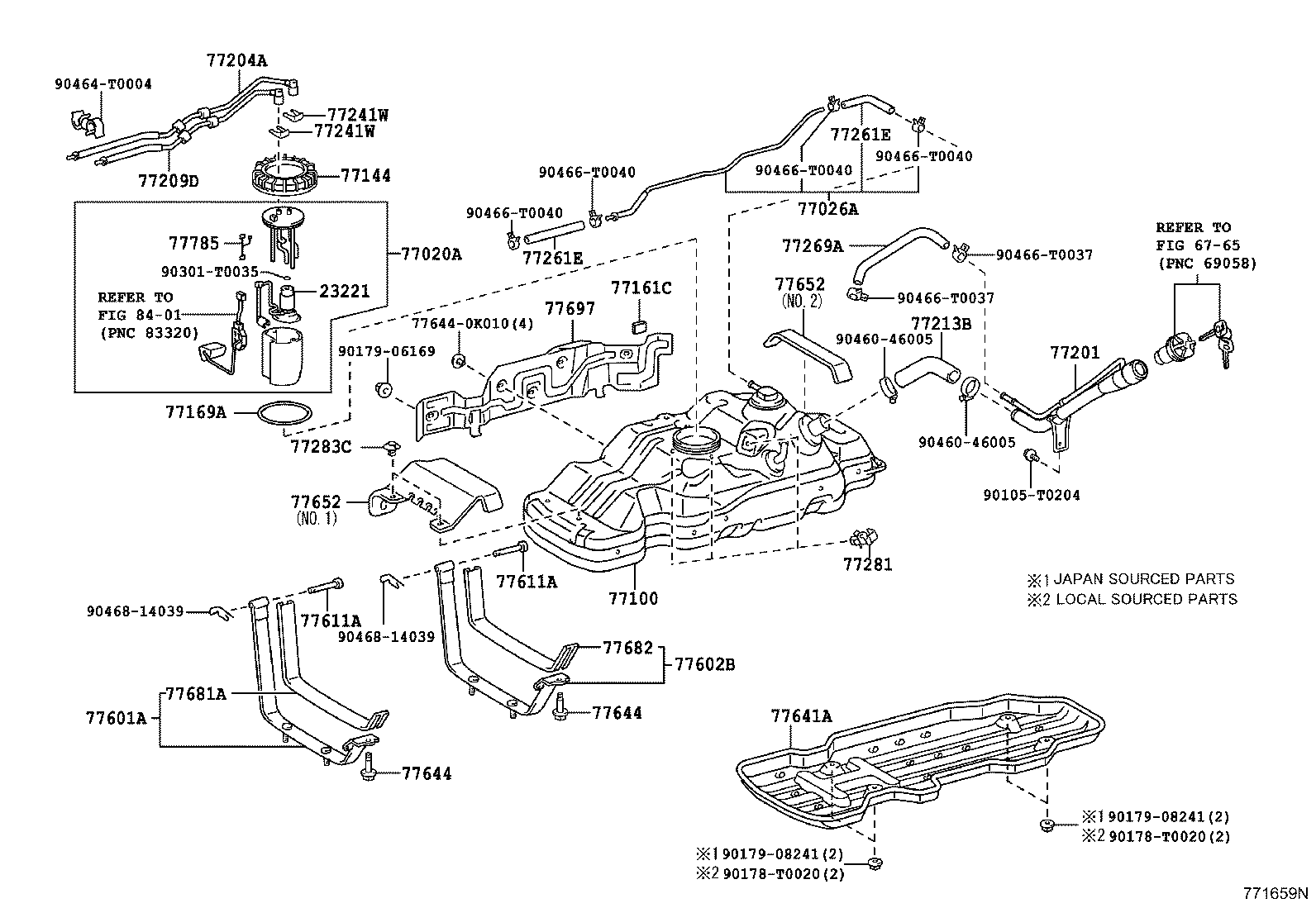

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K020 |
KUN1#,2# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77671-0K010 |
TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,35..(DCB,SCB)..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
3 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K040 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
3 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GEN);GGN15,KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GEN);GGN15,KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN15,KUN15,16,TGN15,16..ARL,GCC,GEN,PHL,TH |
2 | ||
| 77653-0K040 |
GGN25,KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN15,KUN15,16,TGN15,16..ARL,GCC,GEN,PHL,TH |
2 | ||
| 77653-0K040 |
GGN25,KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.2 |
1 | ||
| 77652-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.1 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.2 |
1 | ||
| 77652-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.1 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-0K040 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| Common parts | ||||
| 77644-0K010 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90301-T0035 | ||||
| 90460-46005 | ||||
| 90464-T0004 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
