TGN16L-PRPDKV (2011)
Toyota Hilux

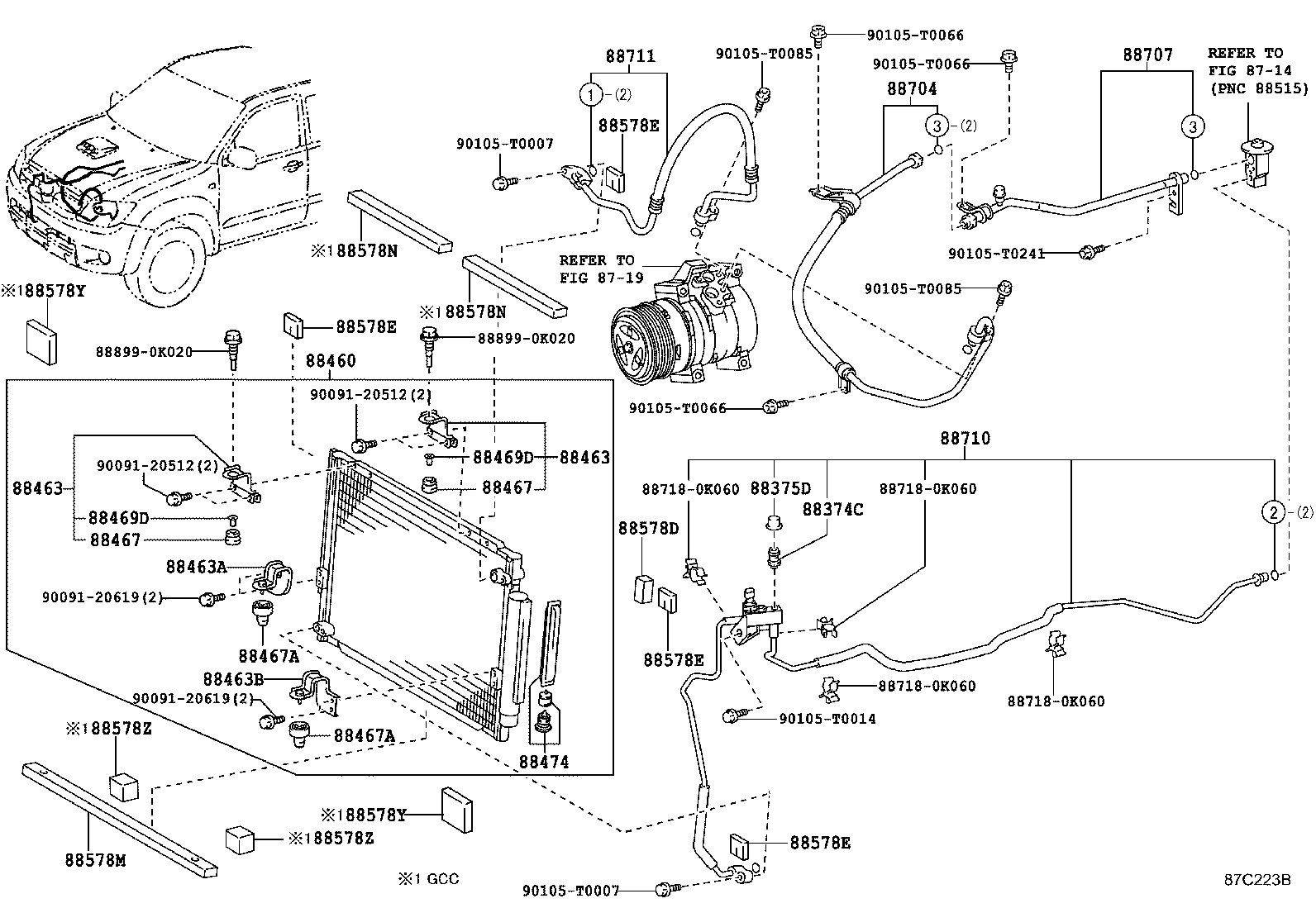

ILLUST NO. 1 OF 2(1107- )TGN16..4FC..GCC ; (1107- )TGN10,11,15,26,36..GCC,GEN ; (1107- )TGN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374-30010 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K020 |
TGN26..GCC;TGN16..4FC..GCC;TGN26..THDCB..DLX;TGN16..5F..(ARL,GCC);TGN10,11,15,36..GCC,GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-71050 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K250 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K260 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-0K130 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-0K130 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN10,15,25,TGN1#..GCC;TGN26..DLX..HTWC..(GCC,LA);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88474-17010 |
TGN26..THDCB..DLX;TGN16..5F..(ARL,GCC);KUN26..DCB..5FC..IV3;TGN26..DCB..DLX..ANCOM;KUN25,TGN16..4FC..(GCC,GEN);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN1#,36,TGN10,11,15,26..DLX..(ARL,GCC,LA);KUN25,TGN36..5F..(HDCR,HTWCF)..(GCC,LA)..CBU;KUN26,TGN36..(SCB,XTR)..5F..(ANCOM,ARL)..IV3;KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN;KUN26,35..(DCB,SCB,THDCB,XTR)..DLX..(DCR,HDCR)..(ARL,GEN,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578-71060 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K081 |
TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 88578-71070 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K091 |
GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K670 |
TGN1#,26..GCC |
2 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K670 |
TGN1#,26..GCC |
2 | ||
| 88578Y - PACKING, COOLING PIPE, NO.5 | ||||
| 88578-0K690 |
KUN10,15,25,TGN1#,26..GCC |
2 | ||
| 88578Y - PACKING, COOLING PIPE, NO.5 | ||||
| 88578-0K690 |
KUN10,15,25,TGN1#,26..GCC |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K700 |
KUN10,15,25,TGN1#,26..GCC |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K700 |
KUN10,15,25,TGN1#,26..GCC |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K461 |
TGN1#,26..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-71050 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0K270 |
TGN1#,26..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-71060 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K041 |
TGN1#,26..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-71060 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-0K020 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(1107- )TGN1#,26..GCC ; (1107- )TGN16..SCB..GEN
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374-30010 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K020 |
TGN26..GCC;TGN16..4FC..GCC;TGN26..THDCB..DLX;TGN16..5F..(ARL,GCC);TGN10,11,15,36..GCC,GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-71050 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K250 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K260 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88467-12180 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-0K130 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-0K130 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88467-28040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
2 | ||
| 88469-52010 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN10,15,25,TGN1#..GCC;TGN26..DLX..HTWC..(GCC,LA);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,35,TGN26..(SADCB,THDCB)..DLX AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88474-17010 |
TGN26..THDCB..DLX;TGN16..5F..(ARL,GCC);KUN26..DCB..5FC..IV3;TGN26..DCB..DLX..ANCOM;KUN25,TGN16..4FC..(GCC,GEN);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN1#,36,TGN10,11,15,26..DLX..(ARL,GCC,LA);KUN25,TGN36..5F..(HDCR,HTWCF)..(GCC,LA)..CBU;KUN26,TGN36..(SCB,XTR)..5F..(ANCOM,ARL)..IV3;KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN;KUN26,35..(DCB,SCB,THDCB,XTR)..DLX..(DCR,HDCR)..(ARL,GEN,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
TGN1#,26..GCC 250G,AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 90986-02008 |
TGN1#,26..GCC 200G,AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
TGN1#,26..GCC 250G,AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 90986-02008 |
TGN1#,26..GCC 200G,AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88578-0K100 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
TGN15,16..GCC;KUN35..DLX..GEN;TGN26..THDCB..DLX;TGN26..DLX..HTWC..(GCC,LA);TGN36..(DCB,THDCB)..5F..DLX..HTWC;KUN2#,TGN10,11..LHD..(SADCB,SCB,THDCB)..DLX..(GCC,GEN) AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-71040 |
KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K461 |
TGN1#,26..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-71050 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K040 |
TGN26..GCC;TGN26..THDCB..DLX;KUN26..DCB..5FC..IV3;KUN25,TGN16..4FC..(GCC,GEN);KUN15,25,TGN16..5F..(ARL,GCC);KUN26..(SCB,XTR)..5F..ARL..IV3;KUN26..(DCB,THDCB,XTR)..DLX..(ARL,GEN)..CBU;KUN10,16,35,TGN10,11,15,36..DLX..(ARL,GCC,GEN);KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-71060 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-71050 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-71060 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88711-0K041 |
TGN1#,26..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-71030 |
TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-71010 |
KUN35..DCB..DLX..GEN;KUN10,15,25,TGN1#,26..GCC AIR CONDITIONER-AIR CONDITIONER(DOP) |
1 | ||
| Common parts | ||||
| 88718-1A430 | ||||
| 88899-52050 | ||||
| 90091-40617 | ||||
| 90099-00313 | ||||
| 90179-06274 | ||||
| 91511-60630 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(1107- )KUN25..SCB..GEN,LA,MA,SA ; (1107-)KUN25..DCB,SMT,THDCB,THSCB,XTR ; (
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
