Toyota Hilux TGN16 FRONT DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
US
HILUX
TGN16L-PRPDKV (2011)

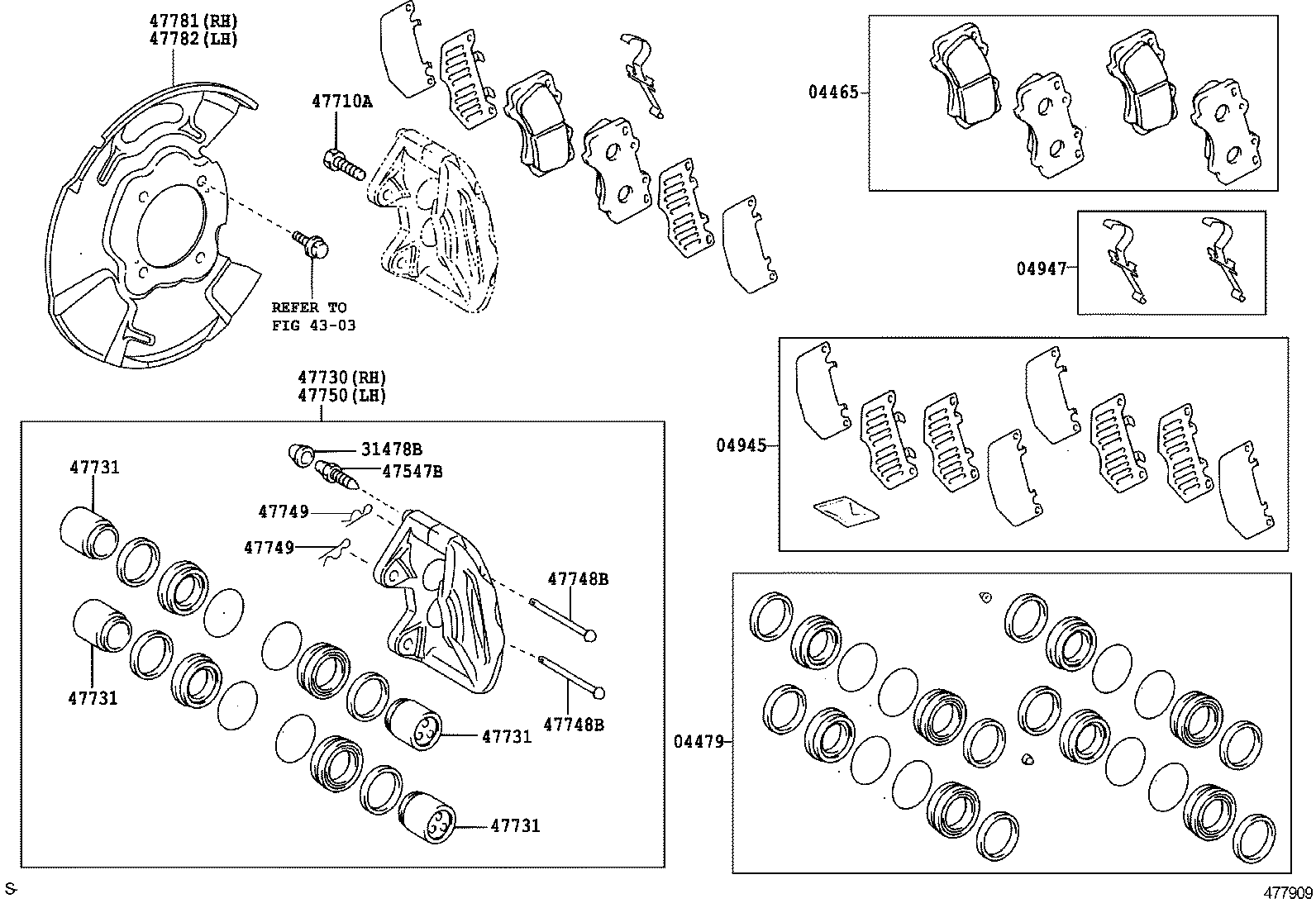

4705 - FRONT DISC BRAKE CALIPER & DUST COVER

TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107-1201)TGN26..SCB,THDCB ; (1107-1201)TGN26..DCB..5F..GCC ; (1107-1201)KUN25,35,

Click highlighted areas on diagram

TYPE D

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

(1201- )KUN26..SMT ; (1201- )KUN35..XTR ;(1201- )KUN25..SR..SA ; (1201-

Click highlighted areas on diagram

TYPE D

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

(1107- )GGN25,35 ; (1107- )KUN26..CO,LA ;(1107- )KUN26..5FC..IV3 ; (1107-

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

(1107- )TGN26..SR..CO,GEN,LA ; (1107- )KUN26..LHD..SADCB,THDCB ; (1107- )K

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

(1108- )KUN3#,TGN36..DCB..SR..SA ; (1110-)TGN36..SR..HTWC..LA ; (1110- )K

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

(1107- )GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-11308	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH *10-1.25PX63.7-30,SUB PIN SIDE	07/2011 - 09/2016	2
90016-AA201	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH *10-1.25PX89.7-30,MAIN PIN SIDE	07/2011 - 09/2016	2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90080-11308	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH *10-1.25PX63.7-30,SUB PIN SIDE	07/2011 - 09/2016	2
90016-AA201	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH *10-1.25PX89.7-30,MAIN PIN SIDE	07/2011 - 09/2016	2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AX202	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH MAIN PIN SIDE	07/2011 - 09/2016	2
90016-AX203	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH SUB PIN SIDE	07/2011 - 09/2016	2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AX202	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH MAIN PIN SIDE	07/2011 - 09/2016	2
90016-AX203	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH SUB PIN SIDE	07/2011 - 09/2016	2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-04010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90119-T0005	LAN15..RHD;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 12/2999	3
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90119-T0005	LAN15..RHD;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 12/2999	3
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1

(1110-1210)KUN25,35,TGN36..5F..ANCOM,CO,LA ; (1110- )4FC..ANCOM ; (1110- )TGN

Click highlighted areas on diagram

TYPE E

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04465-0K290	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH MARK ADVICS PS558H	07/2011 - 04/2015	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04478-0K150	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04945-0K250	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
04947-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
31478-0D040	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47547-12010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
91552-C1230	GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25	07/2011 - 05/2014	4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47730-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731 - PISTON, FRONT DISC BRAKE
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47731-04050	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47750-0K110	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47703-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
47704-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH	07/2011 - 04/2015	1
Linked diagrams
4303

TGN16L-PRPDKV (2011)

(1107-1201)TGN26..SCB,THDCB ; (1107-1201)TGN26..DCB..5F..GCC ; (1107-1201)KUN25,35,

(1201- )KUN26..SMT ; (1201- )KUN35..XTR ;(1201- )KUN25..SR..SA ; (1201-

(1107- )GGN25,35 ; (1107- )KUN26..CO,LA ;(1107- )KUN26..5FC..IV3 ; (1107-

(1107- )TGN26..SR..CO,GEN,LA ; (1107- )KUN26..LHD..SADCB,THDCB ; (1107- )K

(1108- )KUN3#,TGN36..DCB..SR..SA ; (1110-)TGN36..SR..HTWC..LA ; (1110- )K

(1107- )GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH

(1110-1210)KUN25,35,TGN36..5F..ANCOM,CO,LA ; (1110- )4FC..ANCOM ; (1110- )TGN

Part Price Details
