TGN16L-PRPDKV (2011)
Toyota Hilux

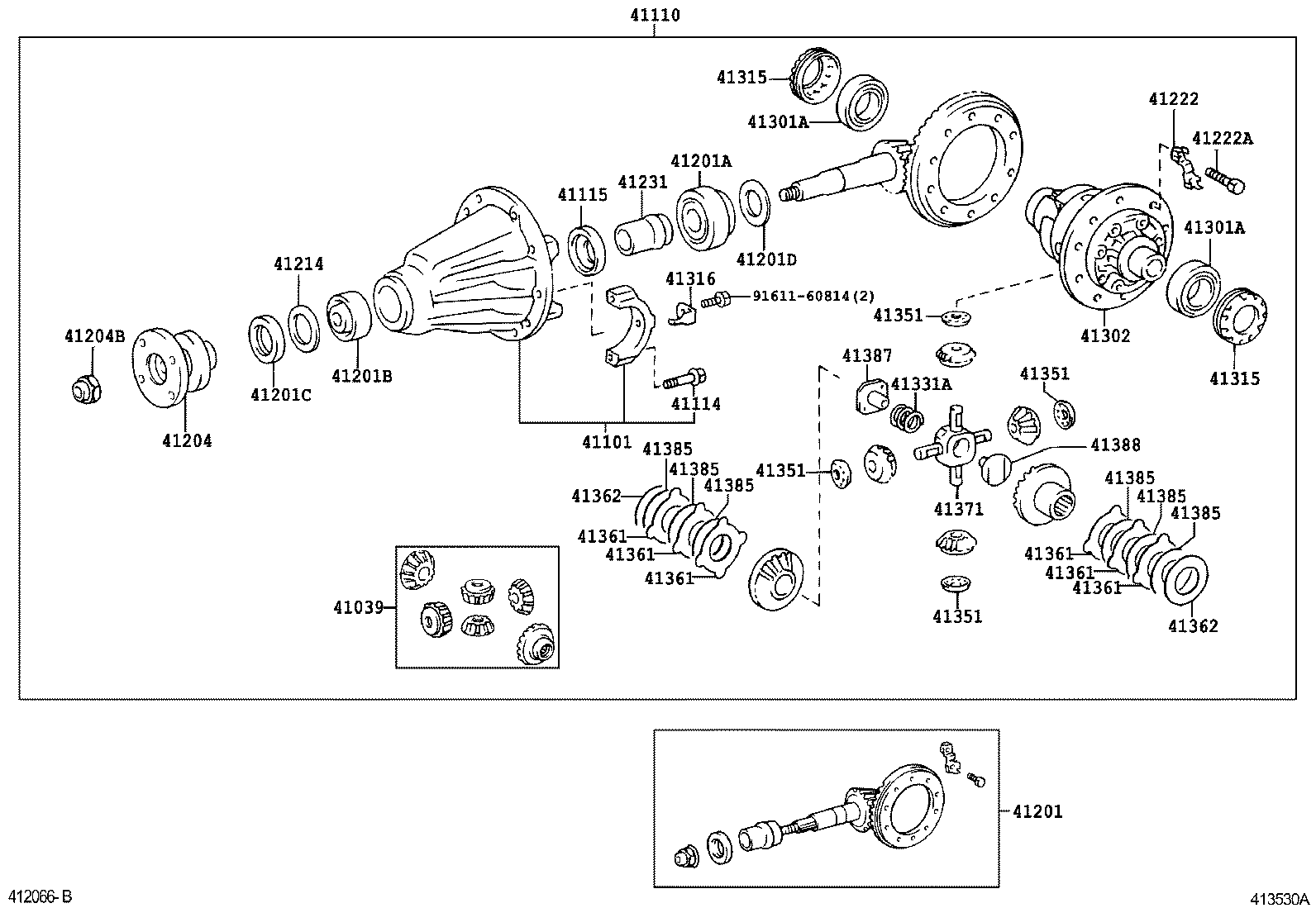

ILLUST NO. 1 OF 2(1107- )GGN15,25,KUN1#,26,3#,TGN1#,26,36..DCB,SCB,SMT,THDCB,XTR..ARL,GCC,GEN,IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35115 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.88 |
1 | ||
| 90564-35115 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.88 |
1 | ||
| 90564-35112 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.79 |
1 | ||
| 90564-35112 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.79 |
1 | ||
| 90564-35109 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.70 |
1 | ||
| 90564-35109 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.70 |
1 | ||
| 90564-35114 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.85 |
1 | ||
| 90564-35114 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.85 |
1 | ||
| 90564-35110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.73 |
1 | ||
| 90564-35110 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.73 |
1 | ||
| 90564-35113 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.82 |
1 | ||
| 90564-35113 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.82 |
1 | ||
| 90564-35121 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.06 |
1 | ||
| 90564-35121 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.06 |
1 | ||
| 90564-35120 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.03 |
1 | ||
| 90564-35120 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.03 |
1 | ||
| 90564-35111 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.76 |
1 | ||
| 90564-35111 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.76 |
1 | ||
| 90564-35117 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.94 |
1 | ||
| 90564-35117 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.94 |
1 | ||
| 90564-35118 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.97 |
1 | ||
| 90564-35118 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.97 |
1 | ||
| 90564-35124 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.12 |
1 | ||
| 90564-35124 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.12 |
1 | ||
| 90564-35123 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.09 |
1 | ||
| 90564-35123 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.09 |
1 | ||
| 90564-35116 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.91 |
1 | ||
| 90564-35116 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=1.91 |
1 | ||
| 90564-35119 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.00 |
1 | ||
| 90564-35119 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.00 |
1 | ||
| 90564-35129 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.27 |
1 | ||
| 90564-35129 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.27 |
1 | ||
| 90564-35130 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.30 |
1 | ||
| 90564-35130 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.30 |
1 | ||
| 90564-35126 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.18 |
1 | ||
| 90564-35126 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.18 |
1 | ||
| 90564-35131 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.33 |
1 | ||
| 90564-35131 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.33 |
1 | ||
| 90564-35128 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.24 |
1 | ||
| 90564-35128 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.24 |
1 | ||
| 90564-35125 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.15 |
1 | ||
| 90564-35125 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.15 |
1 | ||
| 90564-35127 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.21 |
1 | ||
| 90564-35127 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) OD=52,T=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K050 |
KUN25..GCC,GEN;KUN26..5F..PHL;KUN26..4FC..(PHL,TH);KUN15,3#..(DCB,SCB,SMT,XTR)..(GCC,GEN,PHL,TH);KUN16,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN) |
1 | ||
| 41342-0K050 |
KUN25..GCC,GEN;KUN26..5F..PHL;KUN26..4FC..(PHL,TH);KUN15,3#..(DCB,SCB,SMT,XTR)..(GCC,GEN,PHL,TH);KUN16,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN) |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
1 | ||
| 90250-T0006 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| Common parts | ||||
| 90119-T0071 | ||||
ILLUST NO. 1 OF 2(1107- )GGN25,35,KUN15,25,LAN15,25,35,TGN15,16,26..DCR,DEFI,HDCR,HTWC..ANCOM,CO,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
ILLUST NO. 1 OF 2(1107- )TGN36..HTWC..ANCOM,LA ; (1107- )KUN26,36..DCB..SR..LA,SA ; (1107-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301-0K011 |
KUN36..SMT;KUN35..4FC,5FC;KUN35..SR..GEN;KUN25..GCC,GEN;KUN16,26,36..RHD..5FC;KUN16..(DCB,SCB)..ARL;KUN26..LHD..DCB..(GEN,PHL);GGN15..(DCB,XTR)..5FC..DLX;KUN15,TGN16..(DCB,SCB,SMT)..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,TH);KUN10,15,36,TGN10,11,15,26,36..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
ILLUST NO. 1 OF 2(1107- )KUN26..CO ; (1107- )KUN35..XTR ; (1107- )KUN15,25..RHD..SA ; (1107
W(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(1107- )KUN26..SADCB,SCB..GEN,LA ; (1107-)KUN26,35..4FC,5F..DCR,HDCR..LA ; (
W(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41101-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K041 |
TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN10,15,TGN11..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 90105-T0081 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41115-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09B10 |
KUN15..DCR..(GCC,GEN,PHL,PKN);KUN10,TGN11,16..ARL,GCC,GEN,IDN,TH *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09D20 |
KUN10,15,TGN11,16..(CNG,DCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90366-T0016 |
KUN25..SCB..PKN;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 90366-T0013 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90311-T0034 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-71020 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (J) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204-0K060 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) (L) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 90177-22003 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41214-26011 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN15..HDCR..(GEN,TH);GGN15..(DCB,XTR)..5FC..DLX;KUN15,16..DCR..(ARL,GCC,GEN,PHL,PKN);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,25,KUN16..DCB..5FC..SR..(ARL,TH);KUN10,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH;KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,GEN,PHL,TH) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (J) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;GGN25,KUN25,36,TGN26..ARL,GCC,GEN;TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN15,16..(DCB,SCB,SMT)..(5F,5FC)..(ARL,GCC,GEN,PHL,PKN,TH) (L) |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
KUN36..SMT;KUN35..4FC,5FC;KUN26..ARL,PHL;KUN25..SCB..PKN;KUN25,36..GCC,GEN;KUN26,36..5FC..TH;KUN26,35..LHD..DCB..GEN;KUN16..(DCB,SCB)..(ARL,TH);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);GGN25,KUN15,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,PHL,PKN,TH) (J),PNC 41301=TYPE A |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41231-24010 |
KUN25..IV3;TGN26..5F..(GCC,GEN);TGN26..4FC..(GCC,GEN,LA);KUN26,36..(SCB,XTR)..(LA,SA);KUN25,TGN36..GCC,GEN,IDN,MA,PKN,SA,TH;KUN35,TGN36..(HDCR,HTWCF)..(GEN,LA,PHL,SA,TH);KUN26,36,TGN26..DCB..DLX..(DCR,HTWCF,IART)..LA;GGN15,25,KUN1#,26,36,TGN1#..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,TH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 90366-T0010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41315-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41316-0K010 |
GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41351-0K010 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K070 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.80,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K040 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.65,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K030 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.60,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K020 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.55,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K060 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.75,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K050 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.70,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K090 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.90,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| 41361-0K080 |
KUN25..GCC,GEN;KUN25..SCB..PKN;KUN26..RHD..5FC;KUN15..RHD..(GEN,PKN,TH);KUN35..(DCB,SMT)..(GEN,PHL,TH);KUN15,26..LHD..(DCB,SCB)..(GCC,GEN,PHL);GGN15,KUN10,TGN10,11,15,36..(DLX,STD)..(ARL,GCC,GEN,IDN);KUN16,36,TGN16,26..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,TH) T=1.85,(L) |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 2 OF 2(1107- )GGN15,KUN1#,LAN15,TGN1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KUN15,LAN15,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
ILLUST NO. 2 OF 2(1107- )KUN25,35..LHD..DCB,THDCB,THSCB..DLX..GEN ; (1107- )GGN25,35,KUN2#,3#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0118 | ||||
| 90119-T0029 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1107- )TGN36 ; (1107- )TGN26..5F..GCC ; (1107- )TGN26..ANCOM,CO,LA,SA ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 04412-0K500 |
KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,SCB);GGN15,KUN10,16,LAN15,TGN1#..ARL,GCC,GEN,SA,TH |
1 | ||
| 41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 90201-08002 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
10 | ||
| 41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);GGN35,KUN15,LAN15,25,35,TGN15,16;TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,PHL,TH)..CBU;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-T0009 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (L) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 90170-08042 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..4FC..(CO,GEN,LA,MA,PHL,TH);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN15,LAN15,25,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH (J) |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K341 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110-0K331 |
TGN16..4FC..SR;TGN16..DCB..DLX..GCC;TGN16..SCB..(GCC,GEN);KUN10,15,LAN15,TGN10,11,15..DLX..(GCC,SA) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 12157-10010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90341-18057 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 42181-0K030 |
TGN26..4FC;KUN36..DCB,SMT;KUN26..(SCB,XTR)..(ARL,LA);TGN26..5F..(ANCOM,CO,GCC,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB)..(5F,5FC);KUN26..4FC..(ARL,CO,GEN,LA,MA,PHL,TH)..CBU;KUN15,LAN15,25,35,TGN15,16..ARL,GCC,GEN,PHL,SA,TH;GGN15,25,KUN10,16,25,35,TGN10,11,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0118 | ||||
| 90119-T0029 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
