TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )4FC

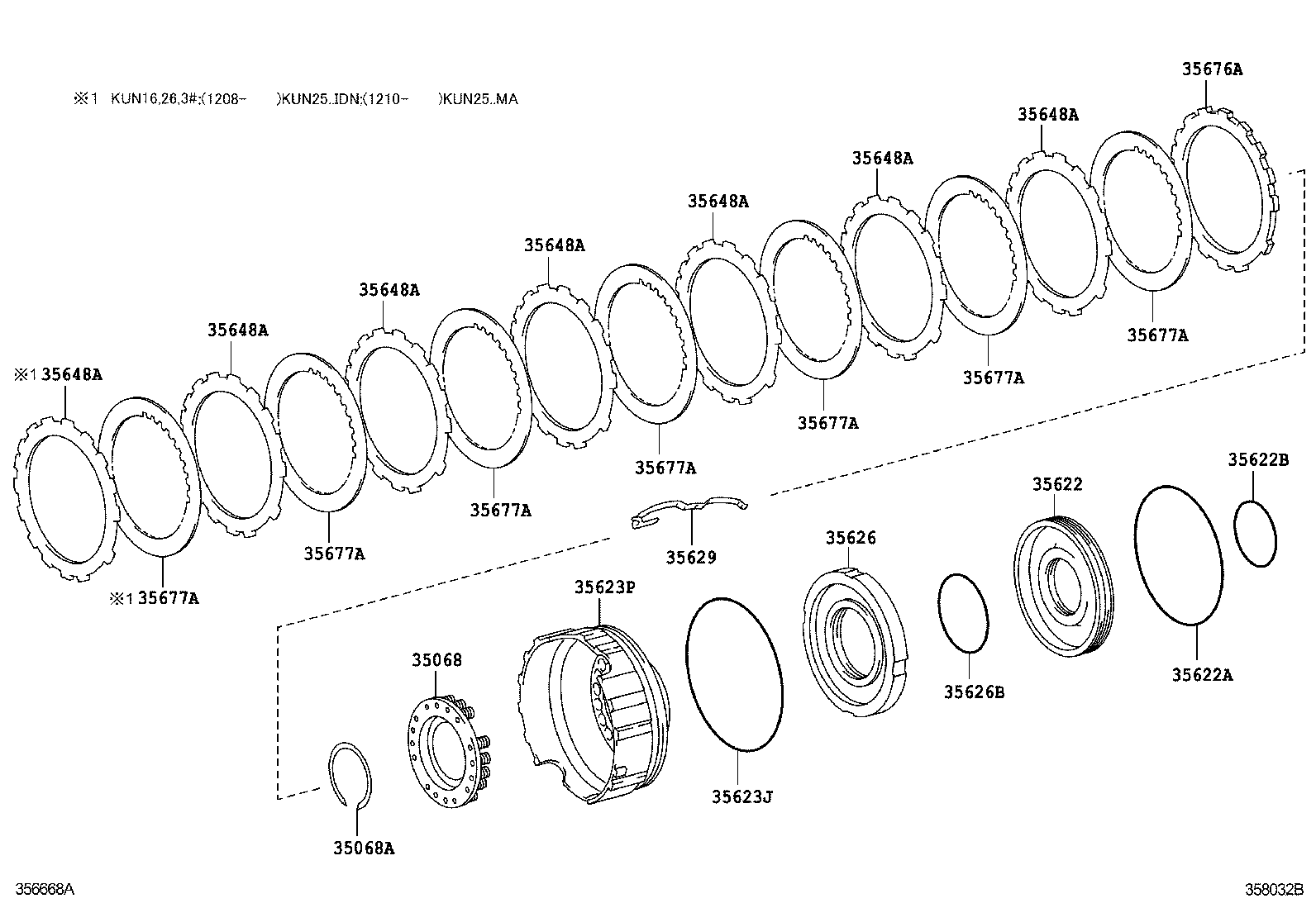

Click highlighted areas on diagram

A340E,A340F,A343E,A343F

diagram 35068 35068A 35622 35622A 35622B 35623J 35623P 35626 35626B 35629 35648A 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-50010

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-52262

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35622 - PISTON, BRAKE, NO.2
35622-30010

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99084

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-56007

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99110

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35623P - PISTON, 1ST & REVERSE BRAKE, NO.2
35623-30012

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 1
35626 - SLEEVE, BRAKE REACTION
35626-30020

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-67005

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22020

KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-50010

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=5.0

 1
35676-50050

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=4.2

 1
35676-50040

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=4.4

 1
35676-50030

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=4.6

 1
35676-30100

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=5.2

 1
35676-50060

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=4.0

 1
35676-30110

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=5.4

 1
35676-50020

KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

T=4.8

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-60020

KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA,SA)

 6
