Toyota Hilux TGN16 TRANSMISSION CASE & OIL PAN (ATM)

Manufacturers Home
Toyota
US
HILUX
TGN16L-PRPDKV (2011)
3503 - TRANSMISSION CASE & OIL PAN (ATM)

TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )TGN16,26,36..4FC

Click highlighted areas on diagram

A343E,A343F

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-0K020	TGN16,26,36..4FC	07/2011 - 12/2999	1
35013-0K030	KUN16,2#,3#..4FC	07/2011 - 09/2016	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-0K020	TGN16,26,36..4FC	07/2011 - 12/2999	1
35103-0K030	KUN16,2#,3#..4FC	07/2011 - 09/2016	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-35022	TGN16,26,36..4FC	07/2011 - 12/2999	1
35104-26061	KUN16,2#,3#..4FC	07/2011 - 12/2999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	KUN16,2#,3#,TGN16,26,36..4FC NO.2:REFER ILLUST.	07/2011 - 12/2999	1
90930-03168	KUN16,2#,3#,TGN16,26,36..4FC NO.1:REFER ILLUST.	07/2011 - 12/2999	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	KUN16,2#,3#,TGN16,26,36..4FC NO.2:REFER ILLUST.	07/2011 - 12/2999	1
90930-03168	KUN16,2#,3#,TGN16,26,36..4FC NO.1:REFER ILLUST.	07/2011 - 12/2999	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11118	KUN16,26,36..4FC..(CO,GEN,LA,MA,PHL,SA,TH);GGN15,25,35,KUN25,35,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,SA)	07/2011 - 12/2999	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-71010	TGN16,26,36..4FC	07/2011 - 12/2999	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011	GGN15,25,35,KUN16,2#,3#,TGN16,26,36..4FC,5FC	07/2011 - 12/2999	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-71010	TGN16,26,36..4FC	07/2011 - 12/2999	1
35111-35090	KUN16,2#,3#..4FC	07/2011 - 12/2999	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35139 - BRACKET, OIL FILLER TUBE
35139-0K010	TGN16,26,36..4FC	07/2011 - 12/2999	1
35159 - GASKET, BRAKE DRUM
35159-30010	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
Common parts
90105-T0054
90119-10232
90119-12036
90119-T0138
90119-T0214
90119-T0215
90119-T0224
90949-01D07
91611-G0612
96132-51000
Linked diagrams
1105
3512
8401
8410

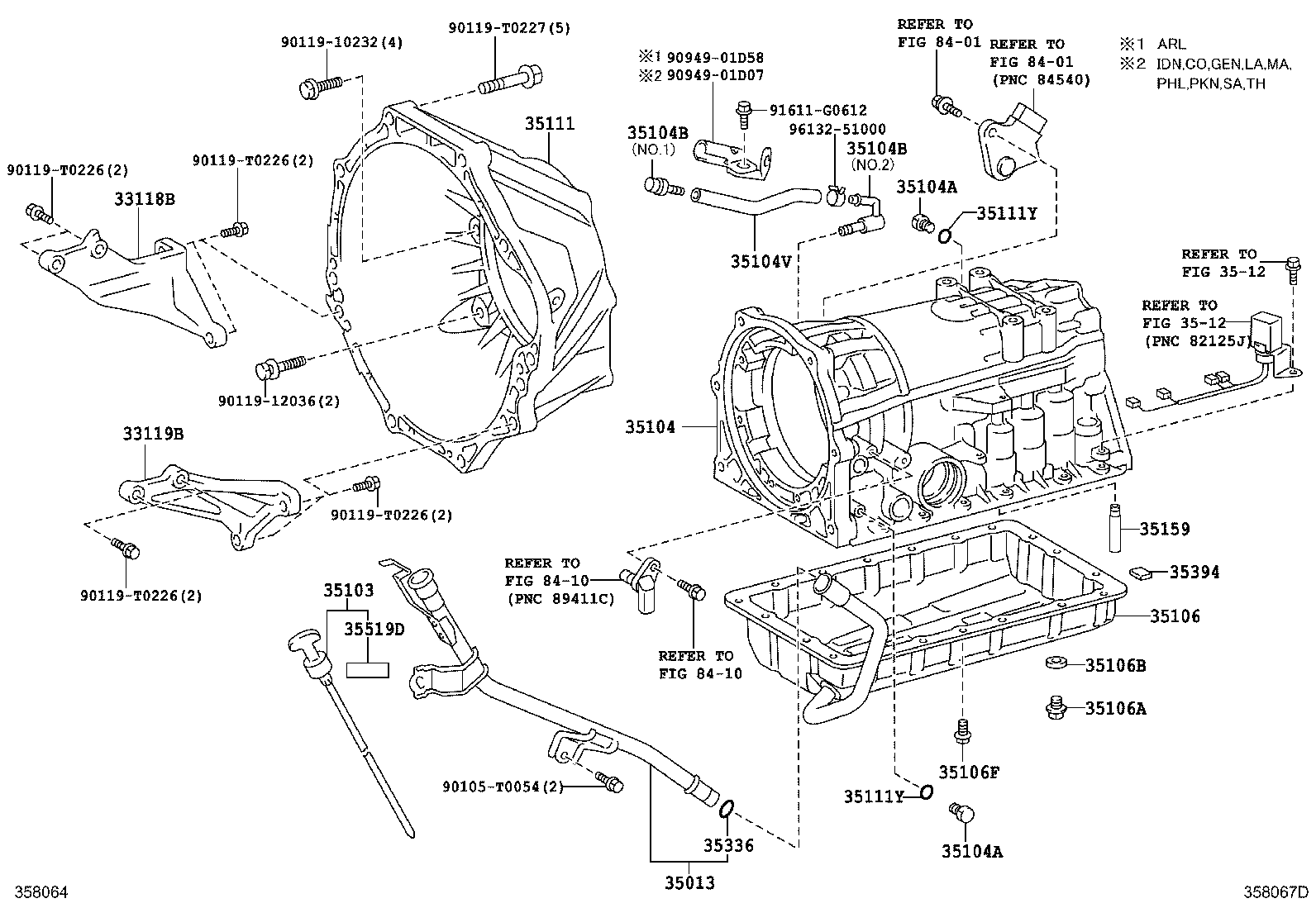

(1107- )KUN16,2#,3#..4FC

Click highlighted areas on diagram

A340E,A340F

Part #	Description	Period	Qty
33118B - PLATE, STIFFENER, RH(ATM)
33118-04020	KUN16,2#,3#..4FC,5FC	07/2011 - 09/2016	1
33119B - PLATE, STIFFENER, LH(ATM)
33119-0K020	KUN16,2#,3#..4FC,5FC	07/2011 - 09/2016	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-0K020	TGN16,26,36..4FC	07/2011 - 12/2999	1
35013-0K030	KUN16,2#,3#..4FC	07/2011 - 09/2016	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-0K020	TGN16,26,36..4FC	07/2011 - 12/2999	1
35103-0K030	KUN16,2#,3#..4FC	07/2011 - 09/2016	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-35022	TGN16,26,36..4FC	07/2011 - 12/2999	1
35104-26061	KUN16,2#,3#..4FC	07/2011 - 12/2999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	KUN16,2#,3#,TGN16,26,36..4FC NO.2:REFER ILLUST.	07/2011 - 12/2999	1
90930-03168	KUN16,2#,3#,TGN16,26,36..4FC NO.1:REFER ILLUST.	07/2011 - 12/2999	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	KUN16,2#,3#,TGN16,26,36..4FC NO.2:REFER ILLUST.	07/2011 - 12/2999	1
90930-03168	KUN16,2#,3#,TGN16,26,36..4FC NO.1:REFER ILLUST.	07/2011 - 12/2999	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11118	KUN16,26,36..4FC..(CO,GEN,LA,MA,PHL,SA,TH);GGN15,25,35,KUN25,35,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,SA)	07/2011 - 12/2999	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-71010	TGN16,26,36..4FC	07/2011 - 12/2999	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011	GGN15,25,35,KUN16,2#,3#,TGN16,26,36..4FC,5FC	07/2011 - 12/2999	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-71010	TGN16,26,36..4FC	07/2011 - 12/2999	1
35111-35090	KUN16,2#,3#..4FC	07/2011 - 12/2999	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	2
35159 - GASKET, BRAKE DRUM
35159-30010	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	KUN16,2#,3#,TGN16,26,36..4FC	07/2011 - 12/2999	3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	KUN16,2#,3#,TGN16,26,36..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
Common parts
90105-T0054
90119-10232
90119-12036
90119-T0226
90119-T0227
90949-01D07
90949-01D58
91611-G0612
96132-51000
Linked diagrams
3512
8401
8410

TGN16L-PRPDKV (2011)

(1107- )TGN16,26,36..4FC

(1107- )KUN16,2#,3#..4FC
