Toyota Hilux TGN16 STARTER - JDM Part Detective

TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

12V 1.4KW,12V 2.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-75091	2TRFE..TGN11,16,26..GCC 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75130	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90105-T0233
90178-T0019

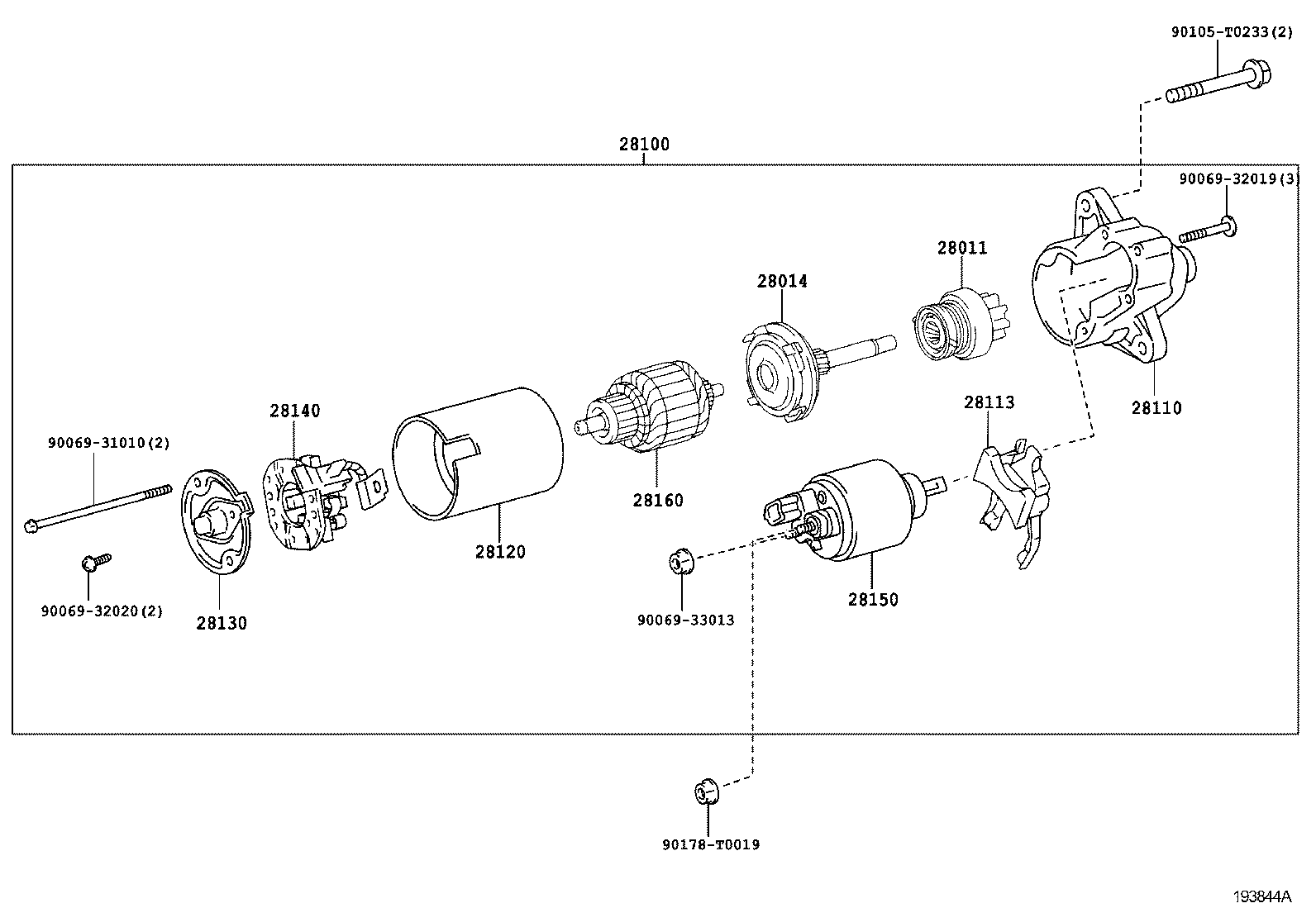

Click highlighted areas on diagram

12V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28011-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-75091	2TRFE..TGN11,16,26..GCC 12V 1.4KW	07/2011 - 04/2015	1
28100-75091	2TRFE..TGN11,16,26..GCC 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28140-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75130	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28150-75130	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90069-31010
90069-32019
90069-32020
90069-33013
90105-T0233
90178-T0019

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-75091	2TRFE..TGN11,16,26..GCC 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75130	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90105-T0081
90105-T0082
90178-T0019
90178-T0022
96711-19006

Click highlighted areas on diagram

12V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28100 - STARTER ASSY
28100-75091	2TRFE..TGN11,16,26..GCC 12V 1.4KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-66040	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-76070	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75130	2TRFE..TGN11,16,26..GCC	07/2011 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-74070	2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC	07/2011 - 04/2015	1
Common parts
90069-31022
90069-32032
90069-32038
90069-33012
90105-T0233
90178-T0019
