TGN16L-PRPDKV (2011)
Toyota Hilux
ILLUST NO. 2 OF 2(1107-1302)1TRFE,2TRFE..ARL,GCC,GEN,IDN,TH ; (1107-1303)1TRFE,2TRFE..TGN15,16,26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0C020 |
1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C040 |
2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-
EXCEPT EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5F..SR..TH ; (1208-)2KDFTV..KUN15..DCB..SR..TH ; (120
WATER COOLING TURBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN15..SCB,SMT..DLX..TH ; (1210- )2KDFTV..KUN35..DLX..TH ; (1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90464-00574 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
ILLUST NO. 2 OF 2(1302-1503)2TRFE..TGN26..DCB..5F..GEN ; (1302-1504)2TRFE..TGN26..GCC ; (1302-1504)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0C020 |
1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) |
1 | ||
| 16261-0C020 |
1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C040 |
2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) |
1 | ||
| 16264-0C040 |
2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16268-75091 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16258-75010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16325-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1302-1504)2TRFE..TGN11,16,36..HTWC..ARL,GCC,GEN,TH ; (1303-1503)2TRFE..TGN16,26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0C020 |
1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) |
1 | ||
| 16261-0C020 |
1TRFE,2TRFE..TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN);1TRFE,2TRFE..TGN1#..HTWC..(ARL,GCC,GEN,IDN,TH) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C040 |
2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) |
1 | ||
| 16264-0C040 |
2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 96137-41501 |
2TRFE..TGN36..HTWCF;2TRFE..TGN26..DLX..HTWCF;2TRFE..TGN26..4FC..(GCC,GEN,LA);2TRFE..TGN26..DCB..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH;2TRFE..TGN26,36..(SCB,THDCB)..(ANCOM,GCC,GEN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16268-75091 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16258-75010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16321-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16325-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16325-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| 90916-03093 |
1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||

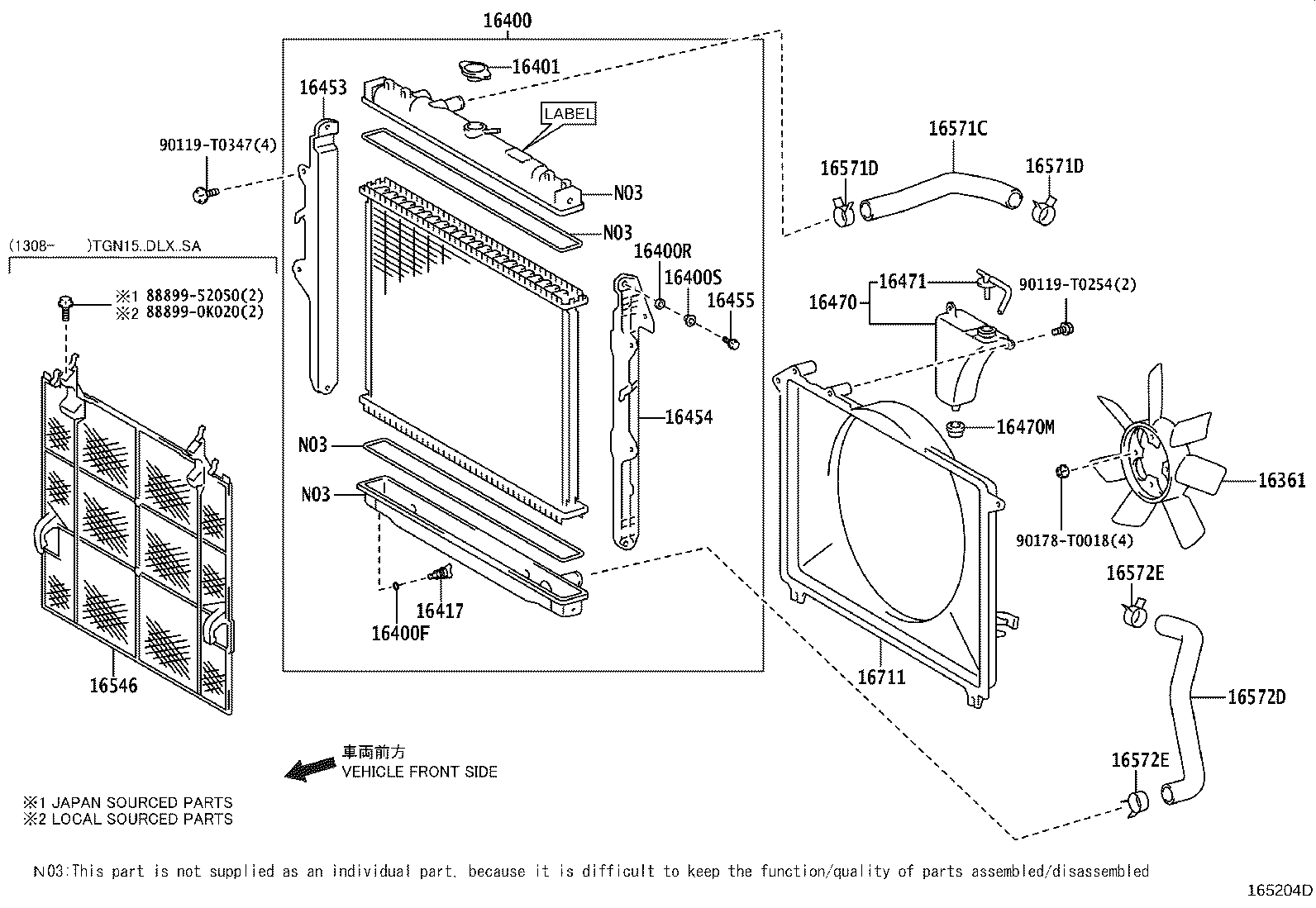

ILLUST NO. 1 OF 2(1107- )2TRFE..TGN36..4FC..ANCOM ; (1107-)1TRFE,2TRFE..ARL,GCC,GEN,IDN,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0C011 |
1TRFE,2TRFE..TGN1#,26,36 MARK=SIAM AISIN |
1 | ||
| 16361-0C011 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0C190 |
2TRFE..TGN16,26,36..4FC..(ANCOM,ARL,GCC,GEN,LA) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2TRFE..TGN26..4FC;2TRFE..TGN26..5F..(ANCOM,CO,GCC,GEN,LA);1TRFE,2TRFE..TGN1#,36..ANCOM,ARL,GCC,GEN,IDN,LA,TH |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN26..5F..(GCC,GEN);2TRFE..TGN26,36..4FC..(ANCOM,GCC,GEN,LA);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN26..5F..(GCC,GEN);2TRFE..TGN26,36..4FC..(ANCOM,GCC,GEN,LA);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0K040 |
2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN,SA);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,SA,TH |
1 | ||
| 16401-0C030 |
2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN,SA);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,SA,TH |
1 | ||
| 16401-0H060 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16417 - COCK | ||||
| 16417-0C180 |
2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0C180 |
2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0C180 |
2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2TRFE..TGN26..4FC;2TRFE..TGN26..5F..(ANCOM,CO,GCC,GEN,LA);1TRFE,2TRFE..TGN1#,36..ANCOM,ARL,GCC,GEN,IDN,LA,TH |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C040 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,SA,TH |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C080 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,SA,TH |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 90466-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 90466-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0C070 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,SA,TH |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 90466-T0028 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 90466-T0028 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C090 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| Common parts | ||||
| 88899-0K020 | ||||
| 88899-52050 | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90178-T0018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
