TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1408)2TRFE..ARL,GCC,GEN,TH ; (1107-1505)2TRFE..TGN16,26,36..ANCOM,CO,LA,SA

Click highlighted areas on diagram

diagram 1105 15600A 15601 15609 15609B 15609D 15609D 15609E 15609E 15609H 15692 90105T0075 90105T0126 90126T0011 90178T0019 9155180845 9155180875
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-T0002

1TRFE,2TRFE..TGN1#,26,36

 1
15601 - FILTER SUB-ASSY, OIL
90915-TB001

1TRFE,2TRFE..TGN1#,26,36

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0C020

2TRFE..TGN11,16,26,36

 1
15609-75120

2TRFE..TGN11,16,26,36

*300

 1
15609-0C020

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

*299

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90404-T0003

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

 1
90404-T0003

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

MADE IN INDONESIA

 1
90404-19017

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

MADE IN JAPAN

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TGN11,16,26,36

(J)

 2
90341-T0010

2TRFE..TGN11,16,26,36

(L)

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TGN11,16,26,36

(J)

 2
90341-T0010

2TRFE..TGN11,16,26,36

(L)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TGN11,16,26,36

(J)

 2
90430-T0009

2TRFE..TGN11,16,26,36

(L)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TGN11,16,26,36

(J)

 2
90430-T0009

2TRFE..TGN11,16,26,36

(L)

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-T0028

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

NOK ASIA

 1
90301-17017

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

NOK

 1
90301-T0028

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

 1
15692 - GASKET, OIL FILTER BRACKET
15692-0C010

2TRFE..TGN11,16,26,36

 1
Common parts
90105-T0075
90105-T0126
90126-T0011
90178-T0019
91551-80845
91551-80875
Linked diagrams
1105

(1408- )2TRFE..ARL,GCC,GEN,TH

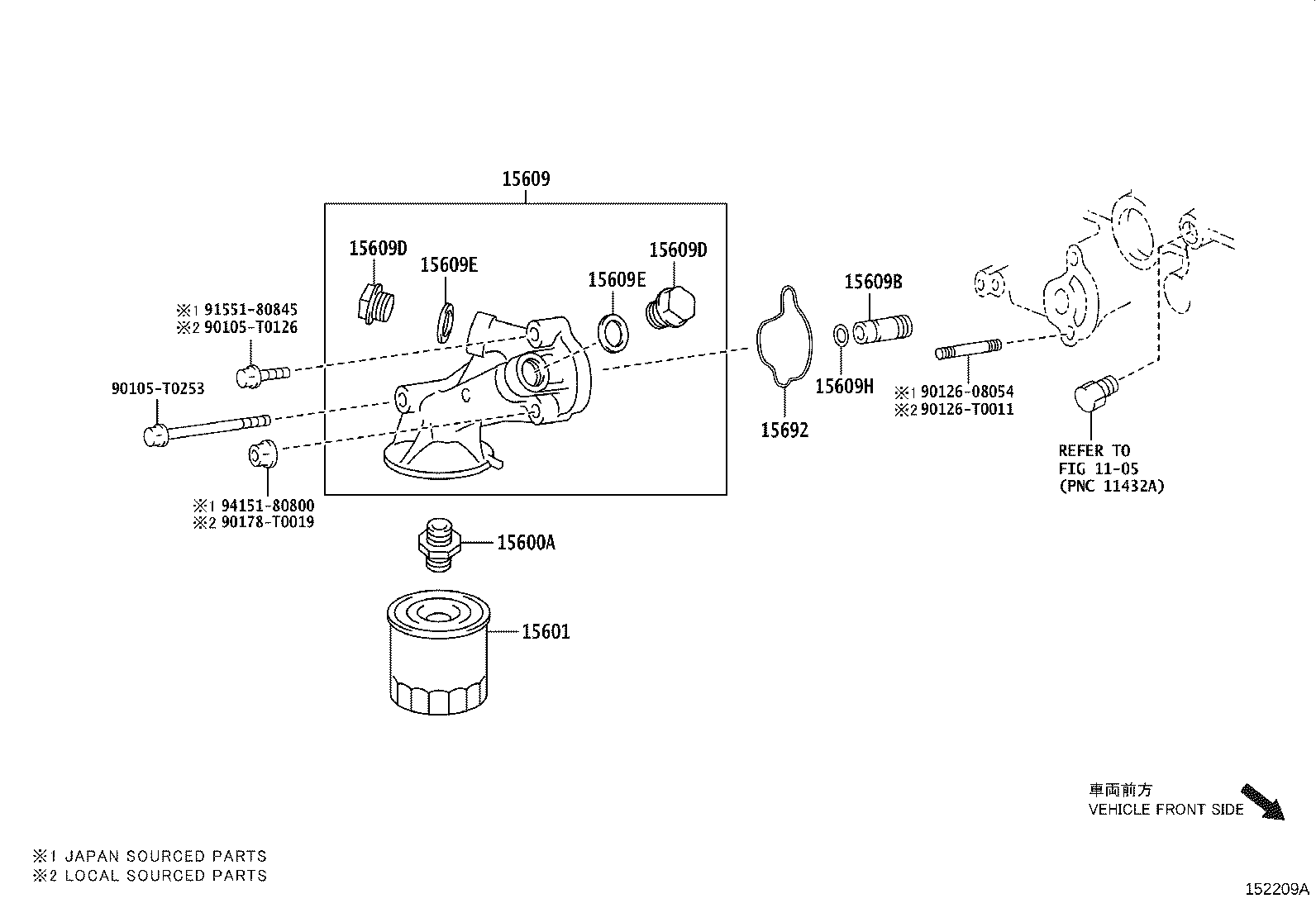

Click highlighted areas on diagram

diagram 1105 15600A 15601 15609 15609B 15609D 15609D 15609E 15609E 15609H 15692 90105T0126 90105T0253 9012608054 90126T0011 90178T0019 9155180845 9415180800
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-T0002

1TRFE,2TRFE..TGN1#,26,36

 1
15601 - FILTER SUB-ASSY, OIL
90915-TB001

1TRFE,2TRFE..TGN1#,26,36

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0C020

2TRFE..TGN11,16,26,36

 1
15609-75120

2TRFE..TGN11,16,26,36

*300

 1
15609-0C020

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

*299

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90404-T0003

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

 1
90404-T0003

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

MADE IN INDONESIA

 1
90404-19017

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

MADE IN JAPAN

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TGN11,16,26,36

(J)

 2
90341-T0010

2TRFE..TGN11,16,26,36

(L)

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TGN11,16,26,36

(J)

 2
90341-T0010

2TRFE..TGN11,16,26,36

(L)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TGN11,16,26,36

(J)

 2
90430-T0009

2TRFE..TGN11,16,26,36

(L)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TGN11,16,26,36

(J)

 2
90430-T0009

2TRFE..TGN11,16,26,36

(L)

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-T0028

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

NOK ASIA

 1
90301-17017

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

NOK

 1
90301-T0028

2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH

 1
15692 - GASKET, OIL FILTER BRACKET
15692-0C010

2TRFE..TGN11,16,26,36

 1
Common parts
90105-T0126
90105-T0253
90126-08054
90126-T0011
90178-T0019
91551-80845
94151-80800
Linked diagrams
1105
